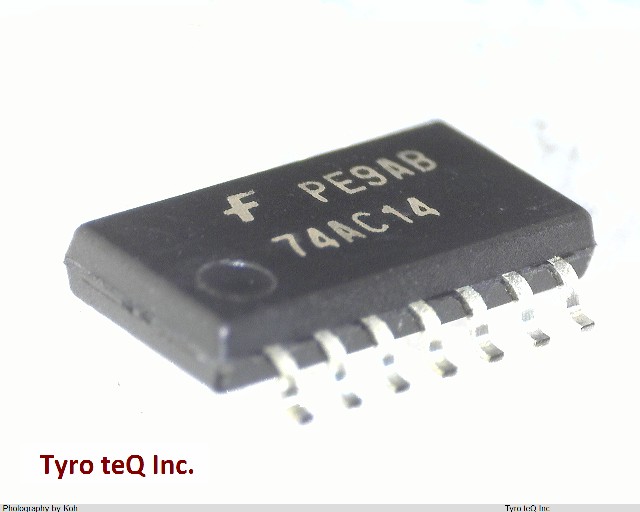

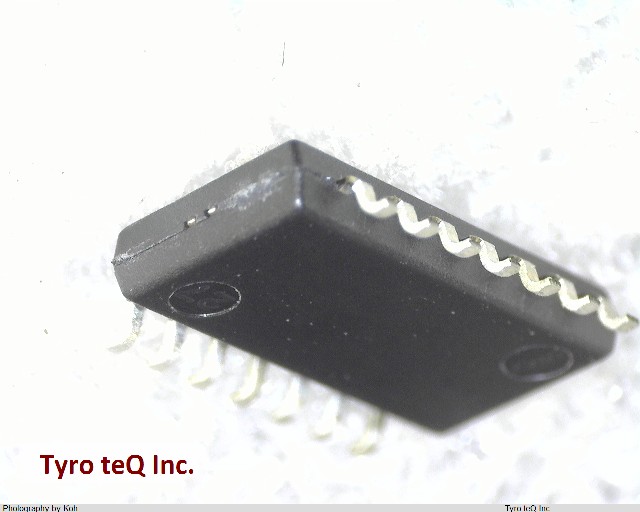

74AC14SJ データシート

Name: 74AC14SJ
Brand: FAIRCHILD
SKU: 80007275-0000-0000-0000

74AC14SJ - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

Advanced CMOSロジックIC|パッケージ： Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

74AC14SJ の詳細情報

型番	74AC14SJ
メーカー	FAIRCHILD
種別	Advanced CMOSロジックIC
データシート
Family	AC
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e3
Length	10.11 mm
Load Capacitance (CL)	50 pF
Logic IC Type	INVERTER
Max I(ol)	0.012 Amp
Moisture Sensitivity Level	1
Number of Functions	6
Number of Inputs	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	RAIL
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3/5 V
Prop. Delay@Nom-Sup	15 ns
Propagation Delay (tpd)	9.5 ns
Qualification Status	Not Qualified
Schmitt Trigger	YES
Seated Height-Max	2.1 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	5.3 mm
