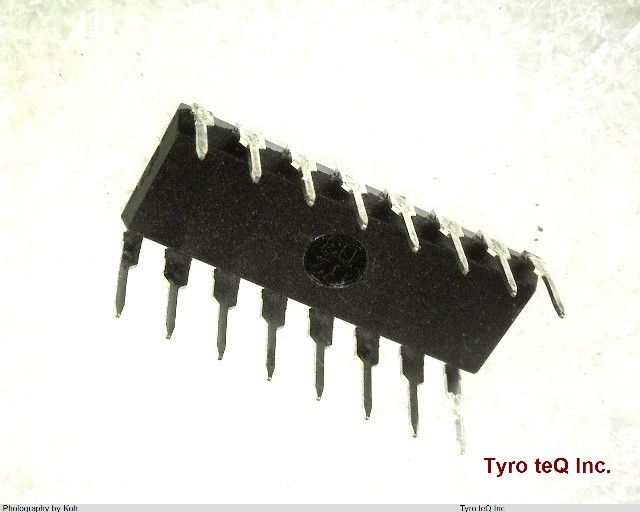

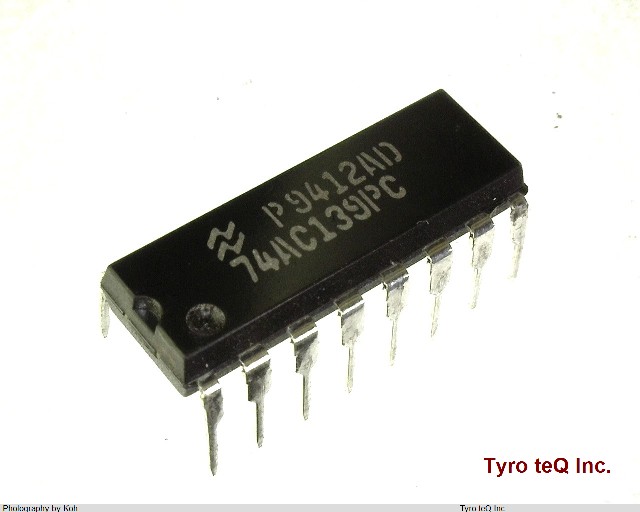

74AC139PC

Name: 74AC139PC
Brand: FAIRCHILD
SKU: 80050445-0000-0000-0000

74AC139PC - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

Advanced CMOSロジックIC|パッケージ： Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide | Lead free

74AC139PC の詳細情報

型番	74AC139PC
メーカー	FAIRCHILD
種別	Advanced CMOSロジックIC
Family	AC
Input Conditioning	STANDARD
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.05 mm
Load Capacitance (CL)	50 pF
Logic IC Type	OTHER DECODER/DRIVER
Max I(ol)	0.012 Amp
Number of Functions	2
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3.3/5 V
Prop. Delay@Nom-Sup	13 ns
Propagation Delay (tpd)	8.5 ns
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Decoder/Drivers
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
