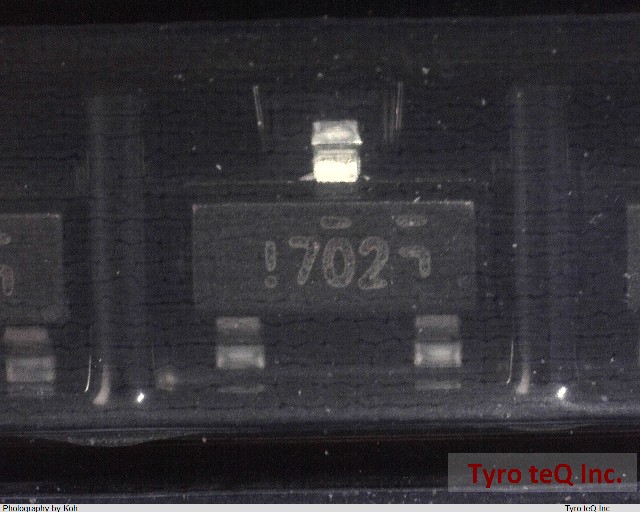

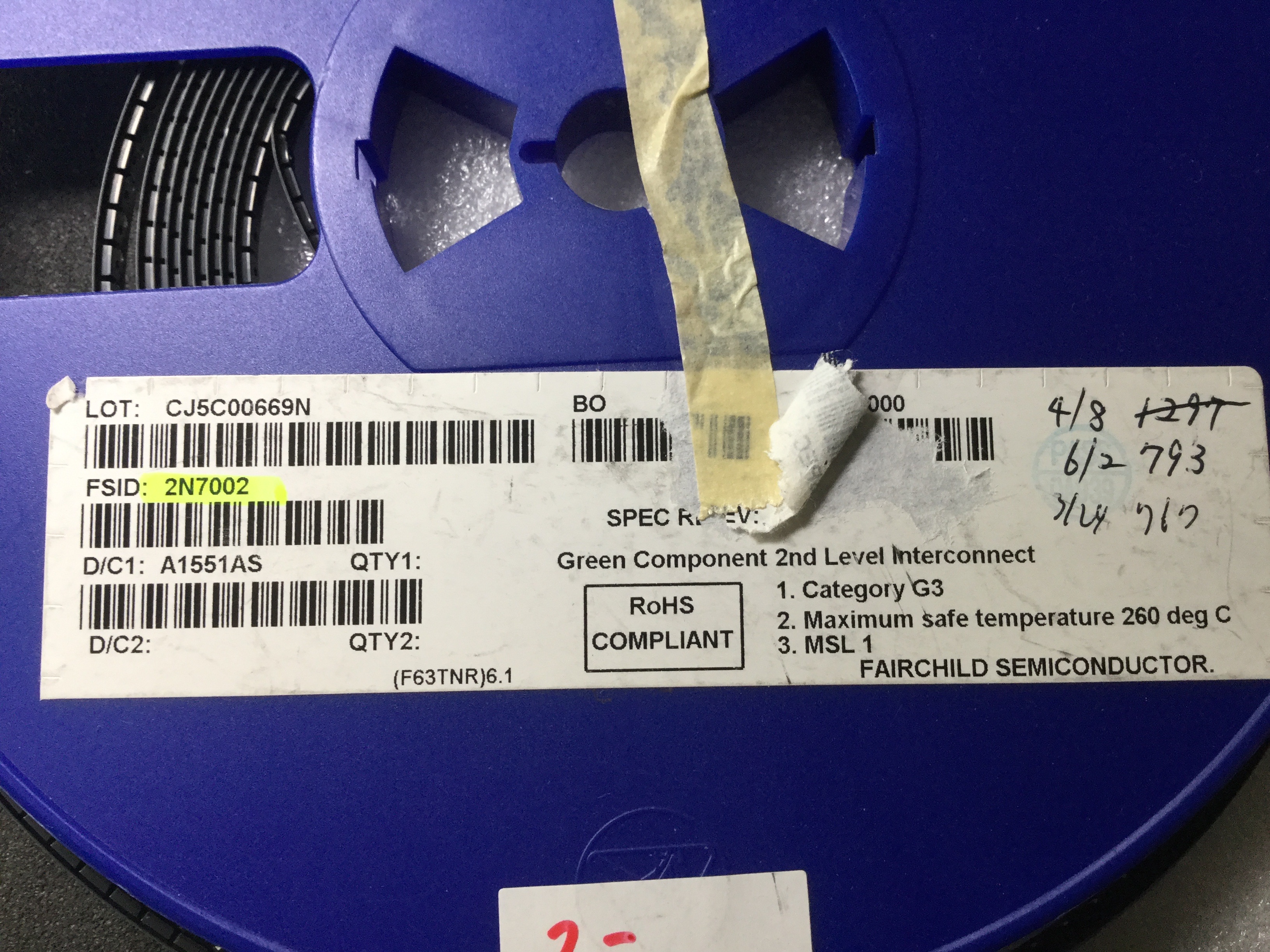

2N7002
1
-
- 個
２営業日以内に回答いたします
2N7002 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 2N7002 |
|---|---|
| メーカー | FAIRCHILD |
| Additional Feature | AVALANCHE RATED |
| Case Connection | DRAIN |
| Configuration | SEPARATE, 2 ELEMENTS |
| DS Breakdown Voltage-Min | 60 V |
| Drain Current-Max (Abs) (ID) | 0.115 A |
| Drain Current-Max (ID) | 0.075 A |
| Drain-source On Resistance-Max | 0.0075 ohm |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| Feedback Cap-Max (Crss) | 1 pF |
| JEDEC-95 Code | TO-236 |
| JESD-30 Code | R-CDSO-N3 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Mode | ENHANCEMENT MODE |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -65 Cel |
| Package Body Material | CERAMIC, METAL-SEALED COFIRED |
| Package Shape | RECTANGULAR |
| Package Style | CHIP CARRIER Meter |
| Peak Reflow Temperature (Cel) | 235 |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation Ambient-Max | 0.15 W |
| Power Dissipation-Max (Abs) | 0.15 W |
| Pulsed Drain Current-Max (IDM) | 0.8 A |
| Qualification Status | Not Qualified |
| Reference Standard | AEC-Q101 |
| Sub Category | FET General Purpose Power |
| Surface Mount | NO |
| Terminal Finish | GOLD |
| Terminal Form | FLAT |
| Terminal Position | BOTTOM |
| Time@Peak Reflow Temperature-Max (s) | 10 |
| Transistor Application | AMPLIFIER |
| Transistor Element Material | SILICON |
| 会社名称 | Fairchild Semiconductor Corporation |
|---|---|
| 設立 | 1957 |
| 所在地 | 3030 Orchard Parkway San Jose, CA 95134 United States |
| URL | http://www.fairchildsemi.com/ |
2N7002のレビュー
2N7002 のご注文について
050-3612-7934
045-263-9989
2N7002 - FAIRCHILD の商品詳細ページです。
