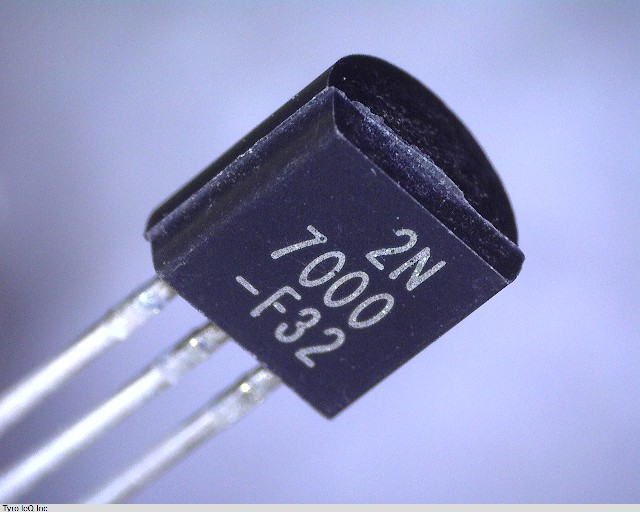

2N7000BU

Name: 2N7000BU
Brand: FAIRCHILD
SKU: 30027792-0000-0000-0000

2N7000BU - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

2N7000BU の詳細情報

型番	2N7000BU
メーカー	FAIRCHILD
Configuration	SINGLE
DS Breakdown Voltage-Min	60 V
Drain Current-Max (Abs) (ID)	0.2 A
Drain Current-Max (ID)	0.2 A
Drain-source On Resistance-Max	5 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code	TO-92
JESD-30 Code	O-PBCY-T3
JESD-609 Code	e3
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	ROUND
Package Style	CYLINDRICAL Meter
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	0.4 W
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	NO
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Position	BOTTOM
Transistor Application	SWITCHING
Transistor Element Material	SILICON
