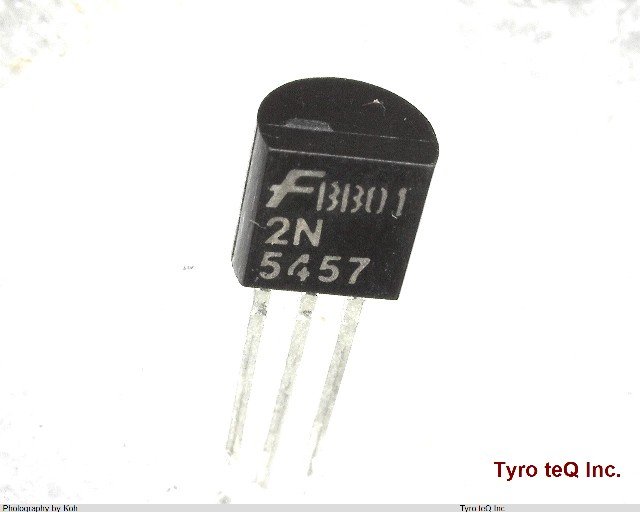

2N5457
1
-
- 個
２営業日以内に回答いたします
2N5457 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 2N5457 |
|---|---|
| メーカー | FAIRCHILD |
| Additional Feature | LOW NOISE |
| Configuration | SINGLE |
| DS Breakdown Voltage-Min | 25 V |
| Drain Current-Max (ID) | 0.025 A |
| FET Technology | JUNCTION |
| Feedback Cap-Max (Crss) | 3 pF |
| Highest Frequency Band | ULTRA HIGH FREQUENCY BAND |
| JEDEC-95 Code | TO-92 |
| JESD-30 Code | O-PBCY-T3 |
| JESD-609 Code | e0 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Mode | DEPLETION MODE |
| Operating Temperature-Max | 125 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | ROUND |
| Package Style | CYLINDRICAL Meter |
| Peak Reflow Temperature (Cel) | 235 |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation-Max (Abs) | 0.31 W |
| Qualification Status | Not Qualified |
| Sub Category | Other Transistors |
| Surface Mount | NO |
| Terminal Finish | MATTE TIN |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | BOTTOM |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Transistor Application | AMPLIFIER |
| Transistor Element Material | SILICON |
| 会社名称 | Fairchild Semiconductor Corporation |
|---|---|
| 設立 | 1957 |
| 所在地 | 3030 Orchard Parkway San Jose, CA 95134 United States |
| URL | http://www.fairchildsemi.com/ |
2N5457のレビュー
2N5457 のご注文について
050-3612-7934
045-263-9989
2N5457 - FAIRCHILD の商品詳細ページです。
