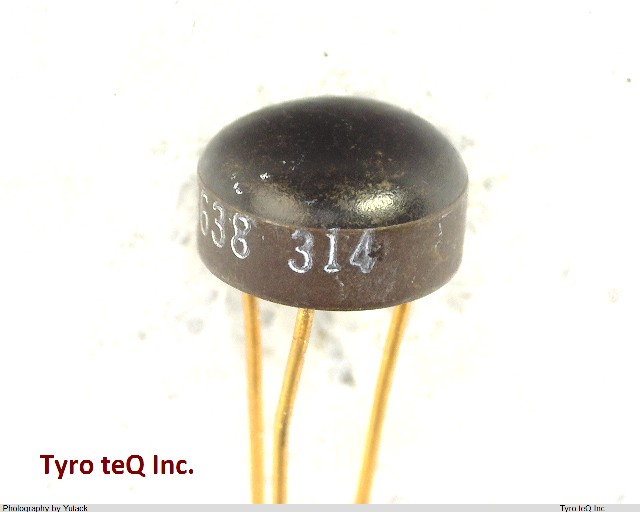

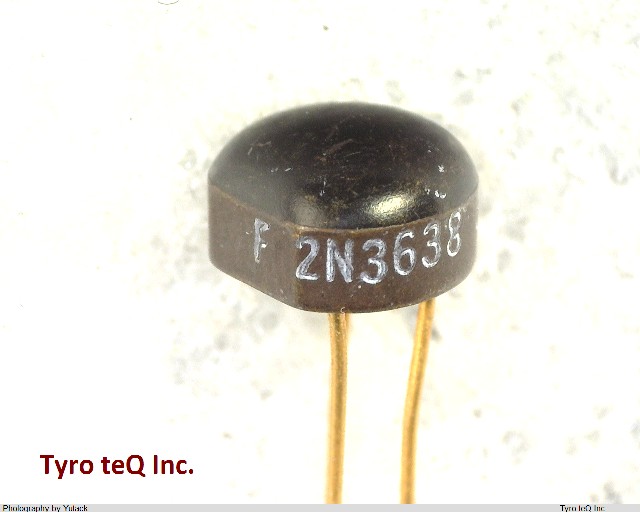

2N3638
1
-
- 個
２営業日以内に回答いたします
2N3638 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 2N3638 |
|---|---|
| メーカー | FAIRCHILD |
| Collector Current-Max (IC) | 0.05 A |
| Collector-base Capacitance-Max | 20 pF |
| Collector-emitter Voltage-Max | 10 V |
| Configuration | SINGLE |
| DC Current Gain-Min (hFE) | 20 |
| JEDEC-95 Code | TO-92 |
| JESD-30 Code | O-PBCY-T3 |
| JESD-609 Code | e0 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Temperature-Max | 125 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | ROUND |
| Package Style | CYLINDRICAL Meter |
| Polarity/Channel Type | PNP |
| Power Dissipation-Max (Abs) | 0.3 W |
| Qualification Status | Not Qualified |
| Sub Category | Other Transistors |
| Surface Mount | NO |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | BOTTOM |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
| Transition Frequency-Nom (fT) | 100 MHz |
| Turn-off Time-Max (toff) | 170 ns |
| Turn-on Time-Max (ton) | 45 ns |
| VCEsat-Max | 1 V |
| 会社名称 | Fairchild Semiconductor Corporation |
|---|---|
| 設立 | 1957 |
| 所在地 | 3030 Orchard Parkway San Jose, CA 95134 United States |
| URL | http://www.fairchildsemi.com/ |
