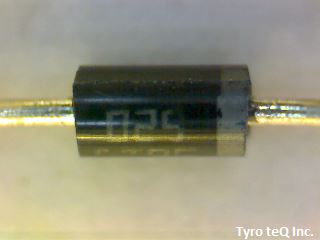

1N5819
データシート
1
-
- 個
２営業日以内に回答いたします
1N5819 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 1N5819 |
|---|---|
| メーカー | FAIRCHILD |
| データシート |  |
| Additional Feature | FREE WHEELING DIODE |
| Application | EFFICIENCY |
| Breakdown Voltage-Min | 30 V |
| Case Connection | CATHODE |
| Configuration | COMMON CATHODE, 2 ELEMENTS |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Forward Voltage-Max (VF) | 0.32 V |
| JEDEC-95 Code | DO-7 |
| JESD-30 Code | O-CALF-W2 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 1 |
| Non-rep Pk Forward Current-Max | 9 A |
| Number of Elements | 1 |
| Number of Phases | 1 |
| Number of Terminals | 1 |
| Operating Temperature-Max | 100 Cel |
| Operating Temperature-Min | -65 Cel |
| Output Current-Max | 0.001 A |
| Package Body Material | CERAMIC, METAL-SEALED COFIRED |
| Package Shape | RECTANGULAR |
| Package Style | CHIP CARRIER Meter |
| Peak Reflow Temperature (Cel) | 225 |
| Power Dissipation-Max | 0.25 W |
| Qualification Status | Not Qualified |
| Reference Standard | AEC-Q101 |
| Rep Pk Reverse Voltage-Max | 30 V |
| Reverse Current-Max | 0.001 uA |
| Reverse Recovery Time-Max | 0.01 us |
| Reverse Test Voltage | 30 V |
| Sub Category | Rectifier Diodes |
| Surface Mount | NO |
| Technology | SCHOTTKY |
| Terminal Finish | BRIGHT TIN |
| Terminal Form | FLAT |
| Terminal Position | AXIAL |
| Time@Peak Reflow Temperature-Max (s) | 5 |
| 会社名称 | Fairchild Semiconductor Corporation |
|---|---|
| 設立 | 1957 |
| 所在地 | 3030 Orchard Parkway San Jose, CA 95134 United States |
| URL | http://www.fairchildsemi.com/ |
