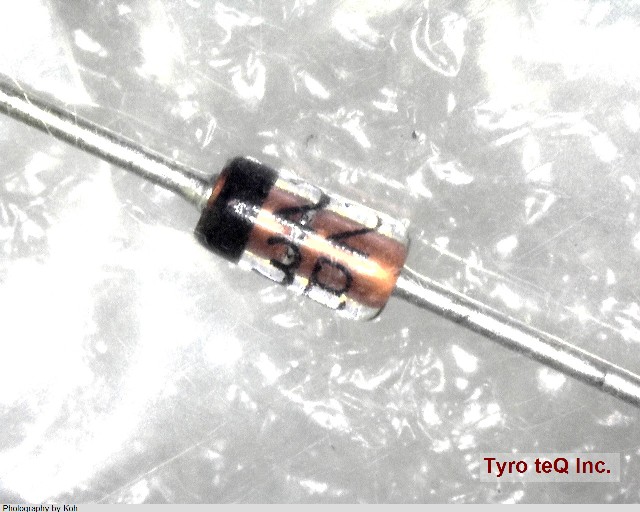

1N5223B
1
-
- 個
２営業日以内に回答いたします
1N5223B の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 1N5223B |
|---|---|
| メーカー | FAIRCHILD |
| Additional Feature | HIGH RELIABILITY |
| Case Connection | CATHODE |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | ZENER DIODE |
| Dynamic Impedance-Max | 30 ohm |
| Forward Voltage-Max (VF) | 1.1 V |
| JEDEC-95 Code | DO-7 |
| JESD-30 Code | O-LALF-W2 |
| JESD-609 Code | e0 |
| Knee Impedance-Max | 1300 ohm |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 150 Cel |
| Operating Temperature-Min | -65 Cel |
| Package Body Material | CERAMIC, METAL-SEALED COFIRED |
| Package Shape | RECTANGULAR |
| Package Style | LONG FORM Meter |
| Peak Reflow Temperature (Cel) | 240 |
| Polarity | UNIDIRECTIONAL |
| Power Dissipation-Max | 0.23 W |
| Qualification Status | Not Qualified |
| Reference Standard | AEC-Q101 |
| Reference Voltage-Nom | 2.4 V |
| Reverse Current-Max | 0.075 uA |
| Reverse Test Voltage | 1 V |
| Sub Category | Voltage Reference Diodes |
| Surface Mount | NO |
| Technology | ZENER |
| Terminal Finish | GOLD |
| Terminal Form | NO LEAD |
| Terminal Position | AXIAL |
| Time@Peak Reflow Temperature-Max (s) | 10 |
| Voltage Temp Coeff-Max | -2.16 mV/Cel |
| Voltage Tol-Max | 5 % |
| Working Test Current | 7.5 mA |
| 会社名称 | Fairchild Semiconductor Corporation |
|---|---|
| 設立 | 1957 |
| 所在地 | 3030 Orchard Parkway San Jose, CA 95134 United States |
| URL | http://www.fairchildsemi.com/ |
