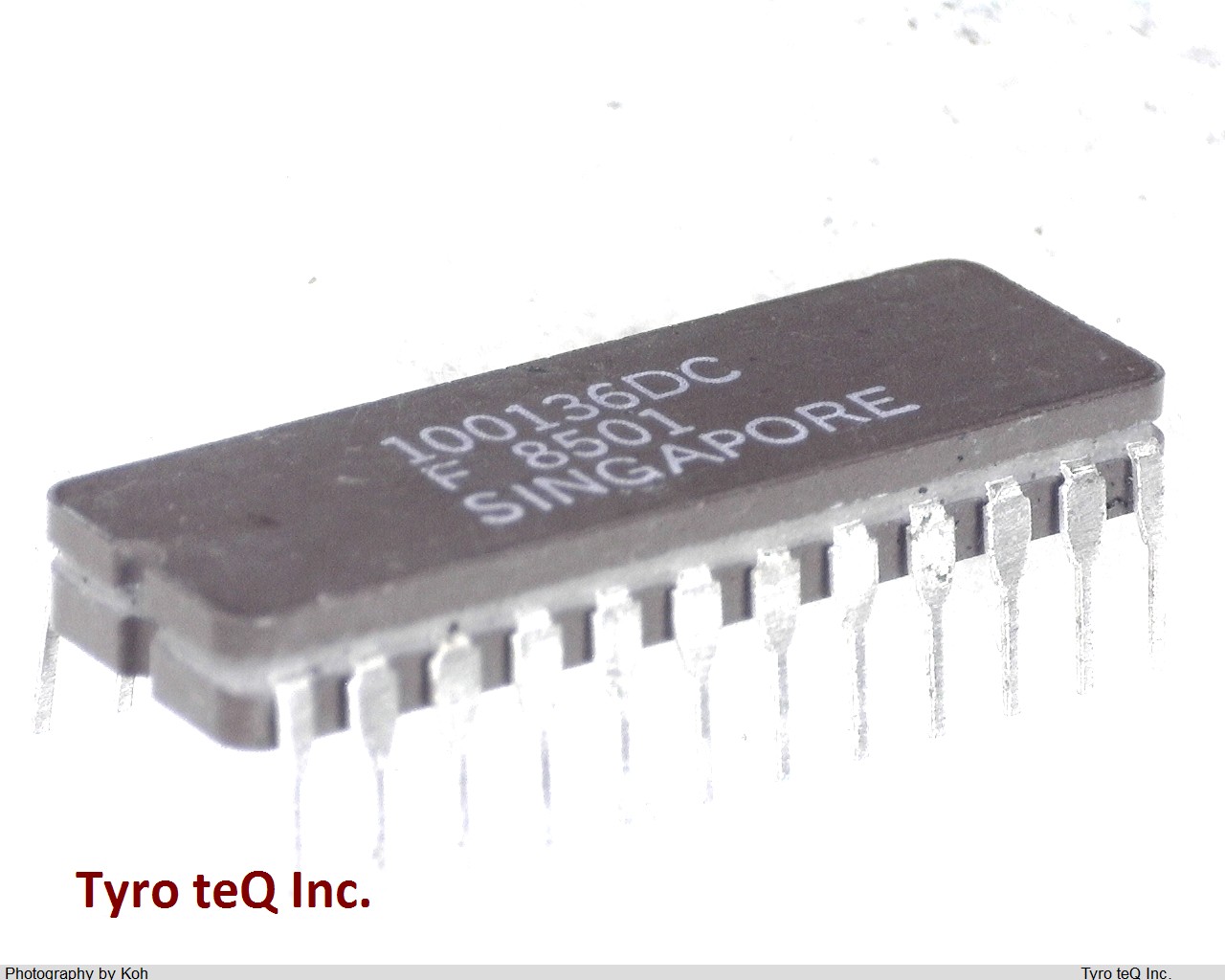

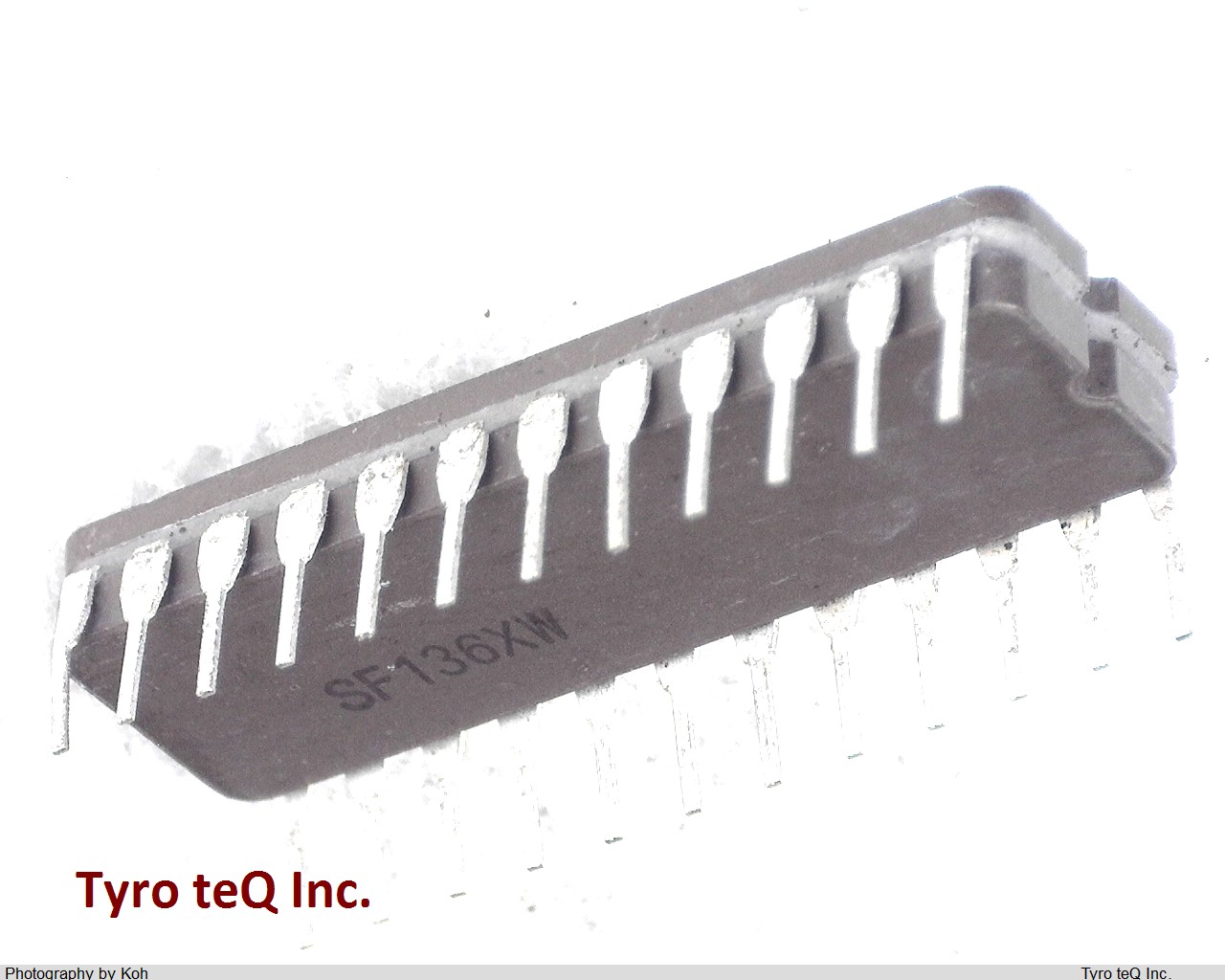

100136DC
1
-
- 個
２営業日以内に回答いたします
100136DC の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 100136DC |
|---|---|
| メーカー | FAIRCHILD |
| Additional Feature | CAN BE USED AS 4-BIT BIDIRECTIONAL SHIFT REGISTER |
| Count Direction | BIDIRECTIONAL |
| Family | 100K |
| JESD-30 Code | R-GDIP-T24 |
| JESD-609 Code | e0 |
| Load Capacitance (CL) | 3 pF |
| Load/Preset Input | YES |
| Logic IC Type | BINARY COUNTER |
| Mode of Operation | SYNCHRONOUS |
| Number of Bits | 4 |
| Number of Functions | 1 |
| Number of Terminals | 24 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | 0 Cel |
| Output Characteristics | OPEN-EMITTER |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP24,.4 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Power Supplies | -4.5 V |
| Power Supply Current-Max (ICC) | 283 mA |
| Propagation Delay (tpd) | 2.1 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.334 mm |
| Sub Category | Counters |
| Surface Mount | NO |
| Technology | ECL |
| Temperature Grade | OTHER |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Trigger Type | POSITIVE EDGE |
| Width | 10.16 mm |
| fmax-Min | 250 MHz |
| 会社名称 | Fairchild Semiconductor Corporation |
|---|---|
| 設立 | 1957 |
| 所在地 | 3030 Orchard Parkway San Jose, CA 95134 United States |
| URL | http://www.fairchildsemi.com/ |
