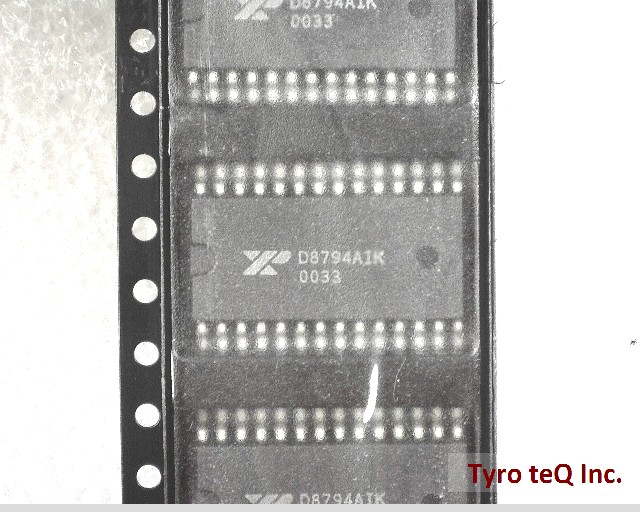

XRD8794AIK

Name: XRD8794AIK
Brand: EXAR
SKU: 340047078-0000-0000-0000

XRD8794AIK - EXAR の商品詳細ページです。

２営業日以内に回答いたします

XRD8794AIK の詳細情報

型番	XRD8794AIK
メーカー	EXAR
Analog Input Voltage-Max	5 V
Converter Type	ADC, PROPRIETARY METHOD
JESD-30 Code	R-PDSO-G28
JESD-609 Code	e0
Length	17.85 mm
Linearity Error-Max (EL)	0.061 %
Number of Analog In Channels	1
Number of Bits	12
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Bit Code	BINARY, 2'S COMPLEMENT BINARY
Output Format	PARALLEL, WORD
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP28,.5
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Sample Rate	2 MHz
Sample-and-Hold/Track-and-Hold	TRACK
Seated Height-Max	2.9 mm
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	8.4 mm
