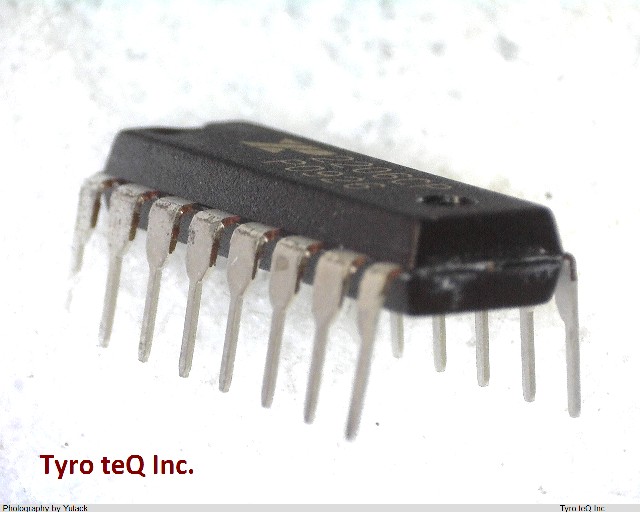

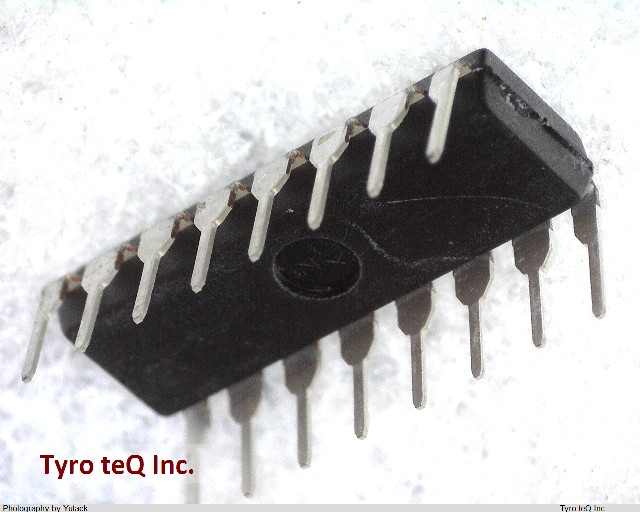

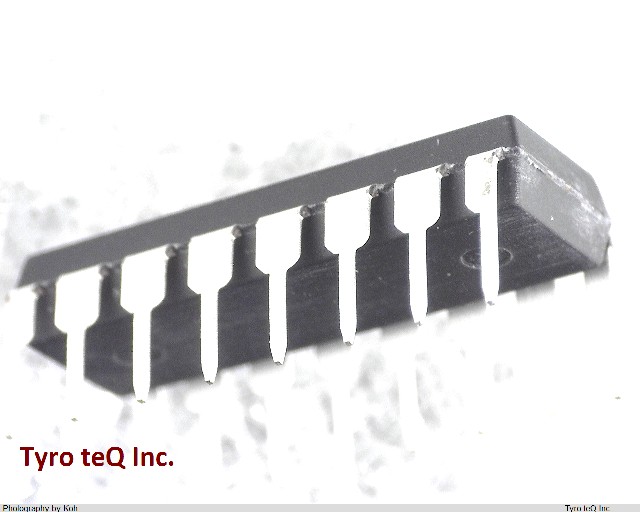

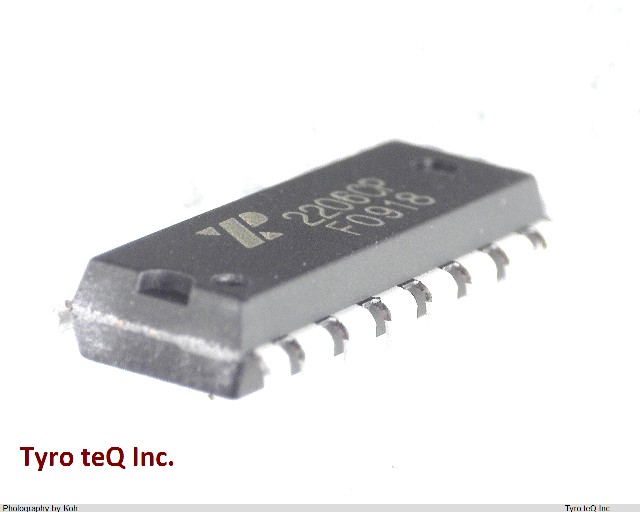

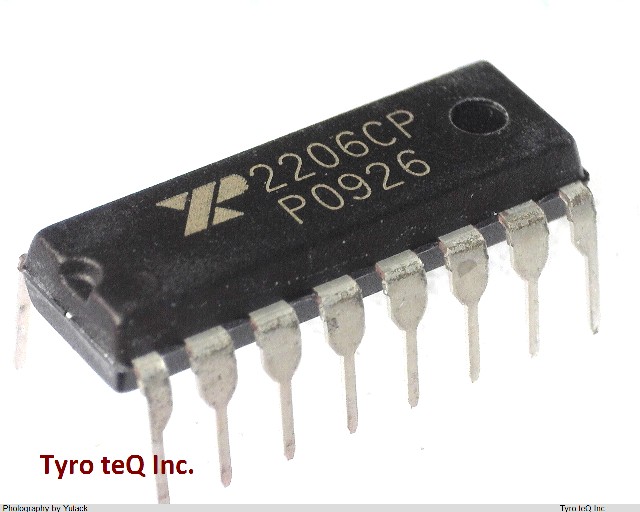

XR2206CP データシート

Name: XR2206CP
Brand: EXAR
SKU: 340001004-0000-0000-0000

XR2206CP - EXAR の商品詳細ページです。

２営業日以内に回答いたします

XR2206CP の詳細情報

型番	XR2206CP
メーカー	EXAR
データシート
Analog IC - Other Type	SQUARE; TRIANGULAR; SINE; SAWTOOTH; PULSE
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	20.1295 mm
Number of Functions	1
Number of Terminals	1
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Frequency-Max	1 GHz
Package Body Material	CERAMIC
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	12 V
Qualification Status	Not Qualified
Seated Height-Max	5.334 mm
Sub Category	Analog Waveform Generation Functions
Supply Current-Max (Isup)	20 mA
Supply Voltage-Max (Vsup)	26 V
Supply Voltage-Min (Vsup)	10 V
Supply Voltage-Nom (Vsup)	12 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm

会社名称	Exar Corporation
所在地	48720 Kato Road Fremont, CA 94538 United States
URL	http://www.exar.com/
