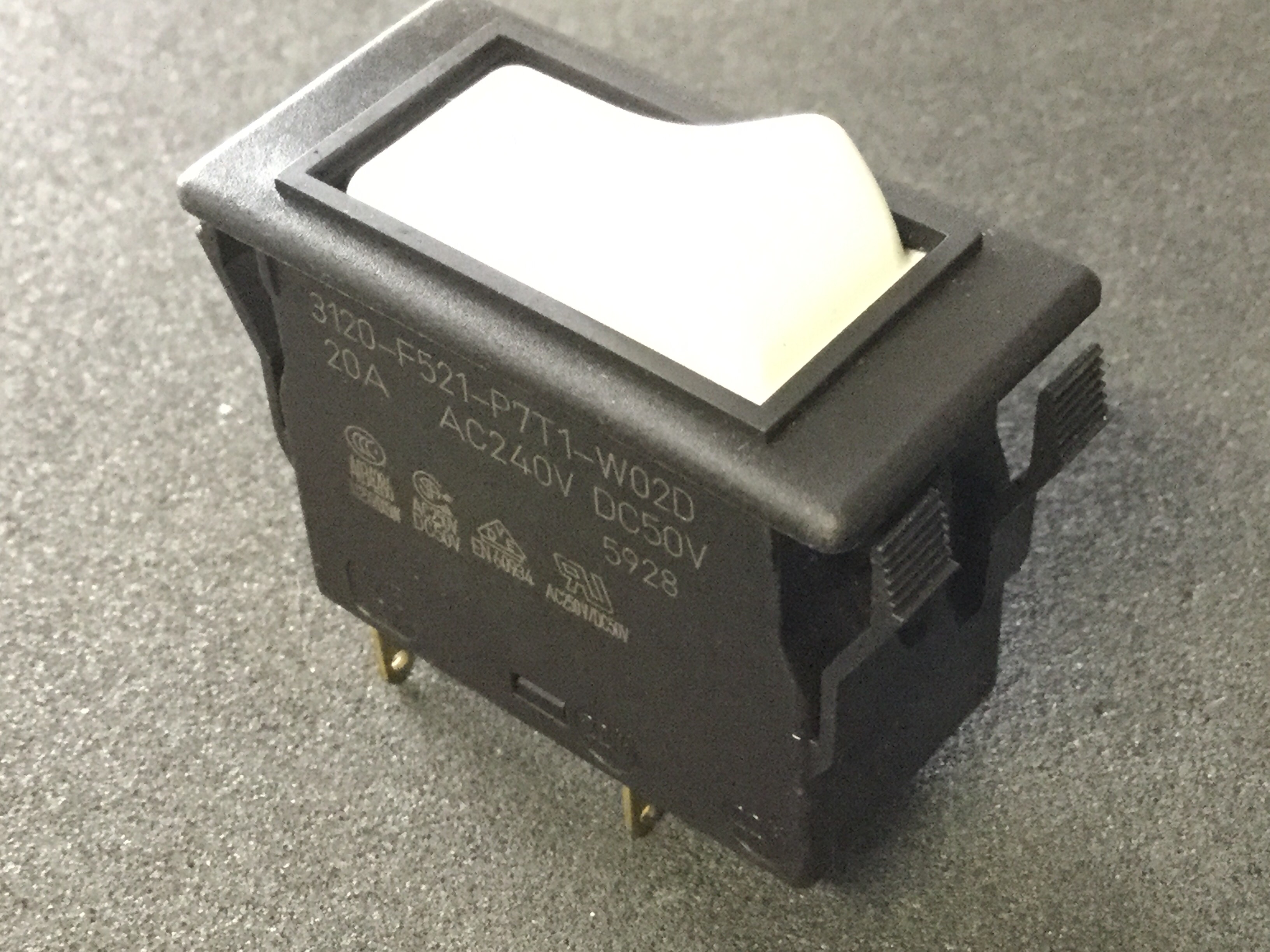

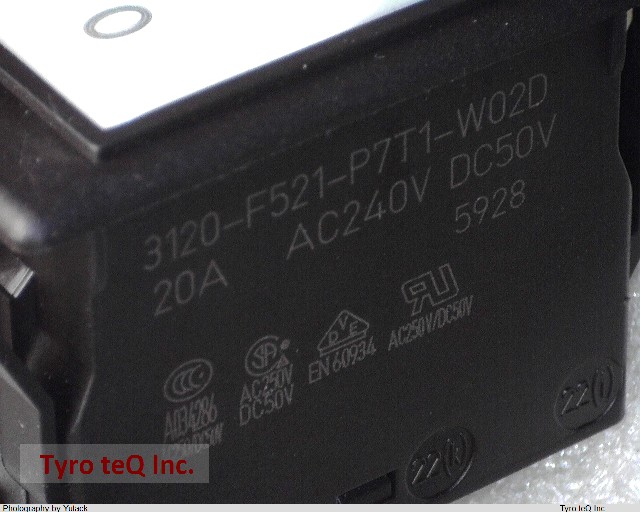

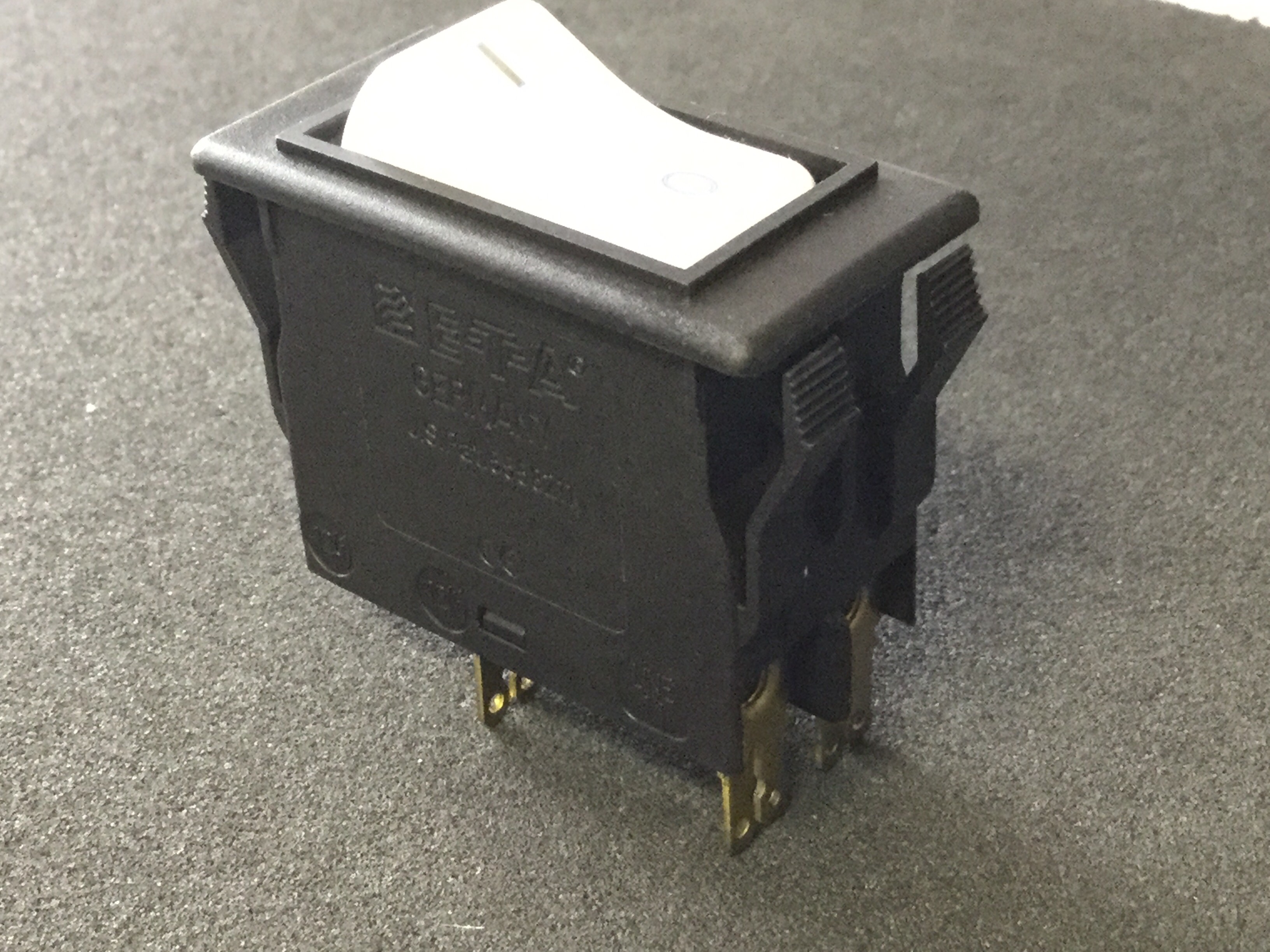

3120-F521-P7T1-W02D-20A

Name: 3120-F521-P7T1-W02D-20A
Brand: ETA
SKU: 40186504-0000-0000-0000

3120-F521-P7T1-W02D-20A - ETA の商品詳細ページです。

２営業日以内に回答いたします

3120-F521-P7T1-W02D-20A の詳細情報

型番	3120-F521-P7T1-W02D-20A
メーカー	ETA
Actuator Type	ROCKER
Body Breadth	21 inch
Body Height	33 mm
Body Length or Diameter	48 mm
Circuit Function	MANUAL ON/OFF
Circuit Protection Type	THERMAL CIRCUIT BREAKER
Environmental Characteristics	CORROSSION RESISTANT
Mounting Feature	PANEL MOUNT
Number of Poles	2
Operating Temperature-Max	60 Cel
Operating Temperature-Min	-30 Cel
Physical Dimension	48mm x 21mm x 33mm
Rated Breaking Capacity	20 A
Rated Current	20 A
Rated Voltage(AC)	250 V
Rated Voltage(DC)	50 V
Reference Standard	CCC; CSA; UL; VDE

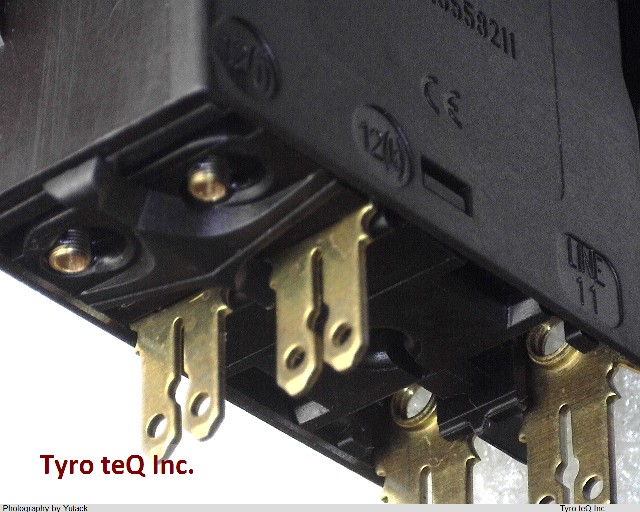

Terminal Shape	QUICK CONNECT
