TL3302BF180QG Eswitch

TL3302BF180QG - E-SWITCH の商品詳細ページです。

1

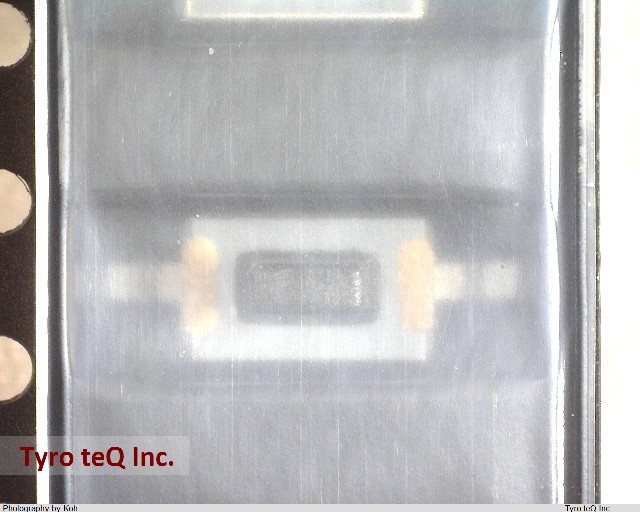

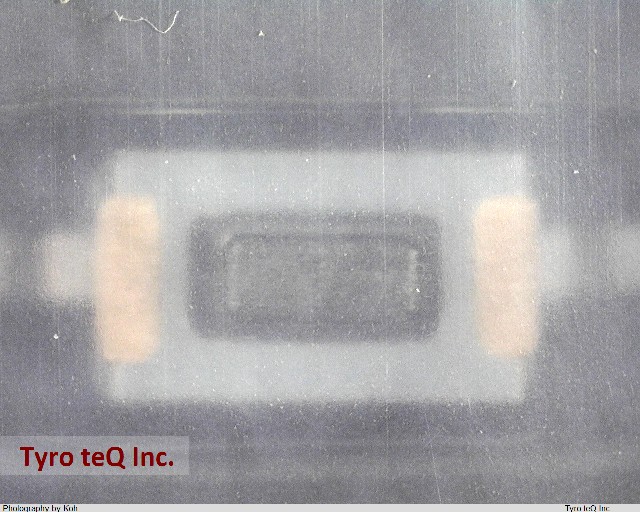

TL3302BF180QG
  • TL3302BF180QG
  • TL3302BF180QG
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

TL3302BF180QG の詳細情報

  • 仕様・詳細
  • メーカー情報
型番TL3302BF180QG
メーカーE-SWITCH
Actuator Color BLACK
Actuator Length 0.02 inch
Actuator Material POLYPHENYLENE SULPHIDE
Actuator Travel 0.25 mm
Additional Feature PACKAGE REEL
Body Breadth 3.5 inch
Body Color BROWN
Body Height 3.5 mm
Body Length or Diameter 6 mm
Center Contact Material PHOSPHOR BRONZE
Center Contact Plating SILVER
Circuit Configuration 1X1
Contact Current(DC)-Max 0.05 A
Contact DC Max Rating R Load 0.05A@12VDC
Contact Function ON-OFF
Contact Resistance 0.1 mohm
Contact Timing SNAP ACTION
Contact Voltage(DC)-Max 12 V
Dielectric Withstand Volts 250VAC V
Electrical Life 40000 Cycle(s)
End Contact Material PHOSPHOR BRONZE
End Contact Plating SILVER
Insulation Resistance 100000000 ohm
Insulator Material POLYPHENYLENE SULPHIDE
Mounting Feature SURFACE MOUNT-STRAIGHT
Number of Switches 1
Operating Force-Max 2.25 N
Operating Temperature-Max 70 Cel
Operating Temperature-Min -20 Cel
Packing Method TR
Switch Action MOMENTARY-TACTILE
Switch Function SPST
Switch Type KEYPAD SWITCH
Terminal Material BRASS
Termination Type SOLDER
会社名称E-Switch, Inc.
設立1907
所在地7153 Northland Drive N. Minneapolis, MN 55428 USA
URLhttp://www.e-switch.com/
