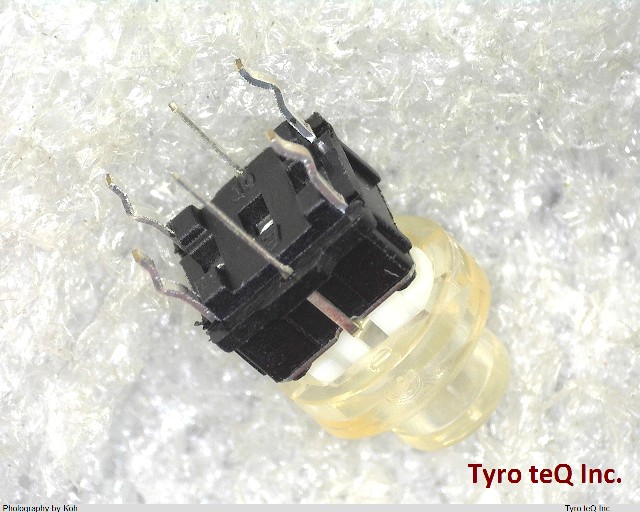

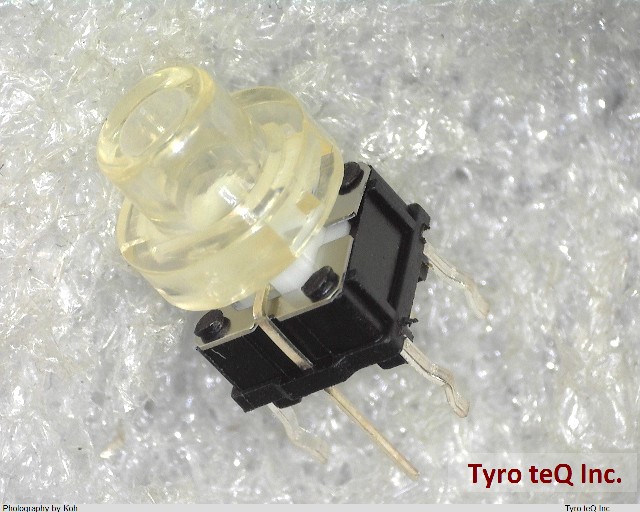

TL1265GQSCLR
1
-
- 個
２営業日以内に回答いたします
TL1265GQSCLR の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | TL1265GQSCLR |
|---|---|
| メーカー | E-SWITCH |
| Actuator Travel | 0.2 mm |
| Body Breadth | 6.8 inch |
| Body Height | 4.5 mm |
| Body Length or Diameter | 7 mm |
| Center Contact Material | SILVER |
| Circuit Configuration | 1X1 |
| Contact Current(DC)-Max | 0.05 A |
| Contact DC Max Rating R Load | 0.05A@12VDC |
| Contact Function | OFF-(ON) |
| Contact Resistance | 0.1 mohm |
| Contact Voltage(DC)-Max | 12 V |
| Dielectric Withstand Volts | 500VDC V |
| Electrical Life | 500000 Cycle(s) |
| End Contact Material | SILVER |
| Illumination | GREEN LED |
| Insulation Resistance | 100000000 ohm |
| JESD-609 Code | e4 |
| Mounting Feature | THROUGH HOLE-STRAIGHT |
| Number of Switches | 1 |
| Operating Force-Max | 2.06 N |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | -20 Cel |
| PCB Hole Count | 6 |
| Switch Action | MOMENTARY-TACTILE |
| Switch Function | SPST |
| Switch Type | KEYPAD SWITCH |
| Terminal Finish | Silver (Ag) |
| Terminal Length | 0.118 inch |
| Termination Type | SOLDER |
| 会社名称 | E-Switch, Inc. |
|---|---|
| 設立 | 1907 |
| 所在地 | 7153 Northland Drive N. Minneapolis, MN 55428 USA |
| URL | http://www.e-switch.com/ |
