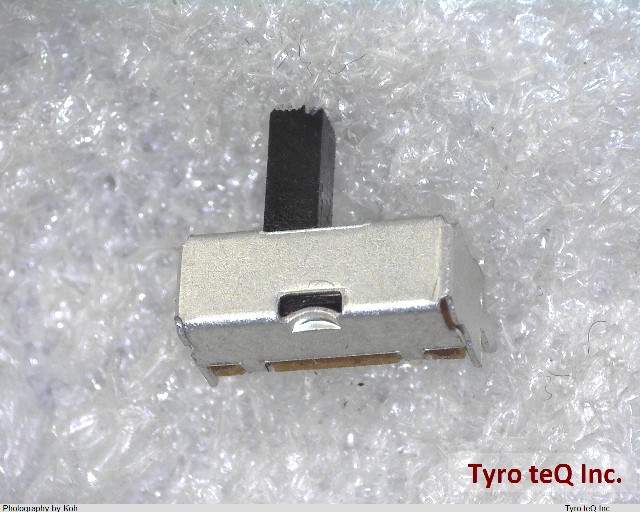

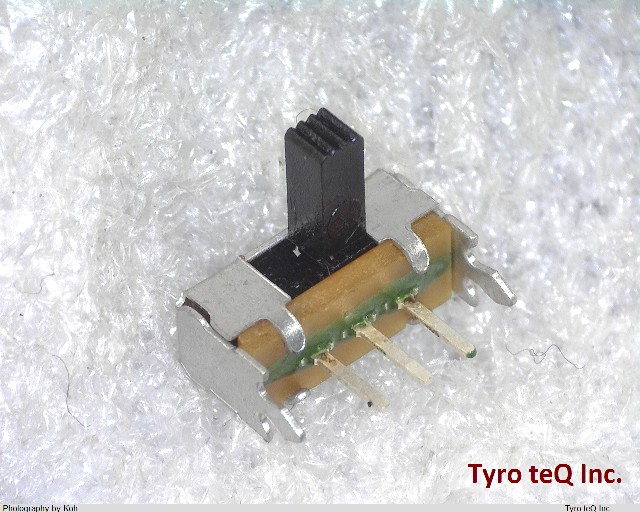

EG1213
1
-
- 個
２営業日以内に回答いたします
EG1213 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | EG1213 |
|---|---|
| メーカー | E-SWITCH |
| Actuator Length | 0.197 inch |
| Actuator Type | SLIDE |
| Additional Feature | ROHS COMPLIANT |
| Body Breadth | 3.8 inch |
| Body Height | 5 mm |
| Body Length or Diameter | 10 mm |
| Center Contact Material | COPPER ALLOY |
| Center Contact Plating | SILVER |
| Contact Current(DC)-Max | 0.2 A |
| Contact DC Max Rating R Load | 0.2A@30VDC |
| Contact Resistance | 0.02 mohm |
| Contact Timing | BREAK-BEFORE-MAKE |
| Contact Voltage(DC)-Max | 30 V |
| Dielectric Withstand Volts | 500VAC V |
| Electrical Life | 10000 Cycle(s) |
| End Contact Material | COPPER ALLOY |
| End Contact Plating | SILVER |
| Insulation Resistance | 100000000 ohm |
| JESD-609 Code | e4 |
| Mounting Feature | THROUGH HOLE-RIGHT ANGLE |
| Number of Positions | 2 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | -20 Cel |
| PCB Hole Count | 5 |
| Switch Action | LATCHED |
| Switch Function | SPDT |
| Switch Type | SLIDE SWITCH |
| Terminal Finish | Silver (Ag) |
| Terminal Length | 0.114 inch |
| Terminal Material | COPPER ALLOY |
| Termination Type | SOLDER |
| 会社名称 | E-Switch, Inc. |
|---|---|
| 設立 | 1907 |
| 所在地 | 7153 Northland Drive N. Minneapolis, MN 55428 USA |
| URL | http://www.e-switch.com/ |
