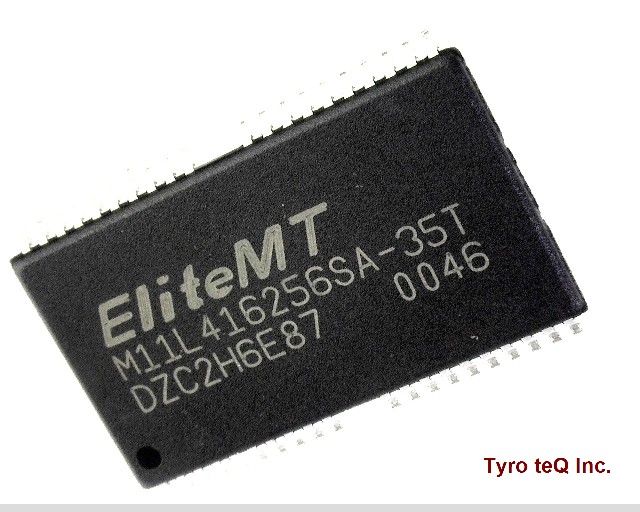

M11L416256SA-35T Esmt

M11L416256SA-35T
M11L416256SA-35T

M11L416256SA-35T - ESMT の商品詳細ページです。

1

22時間2分後 以内に見積もり依頼を頂ければ、
05月28日(火) 9:00 までに見積もり回答いたします。

  • 個
この商品のお問い合わせ

M11L416256SA-35T の詳細情報

  • 仕様・詳細
  • メーカー情報
型番M11L416256SA-35T
メーカーESMT
Access Mode EDO PAGE
Access Time-Max 35 ns
Additional Feature RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O Type COMMON
JESD-30 Code R-PDSO-G40
Length 18.41 mm
Memory Density 4194304 bit
Memory IC Type EDO DRAM
Memory Width 16
Number of Functions 1
Number of Ports 1
Number of Terminals 40
Number of Words 262144 words
Number of Words Code 256K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Organization 256KX16
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code TSOP40/44,.46,32
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Power Supplies 3.3 V
Qualification Status Not Qualified
Refresh Cycles 512
Seated Height-Max 1.2 mm
Self Refresh YES
Standby Current-Max 0.002 Amp
Sub Category DRAMs
Supply Current-Max 0.15 mA
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 3 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position DUAL
Width 10.16 mm
会社名称Elite Semiconductor Memory Technology Inc.
設立1998
所在地No.23, Industry E Rd. IV Science-Based Industrial Park,Hsinchu 300, Taiwan, R.O.C.
URLhttp://www.esmt.com.tw
