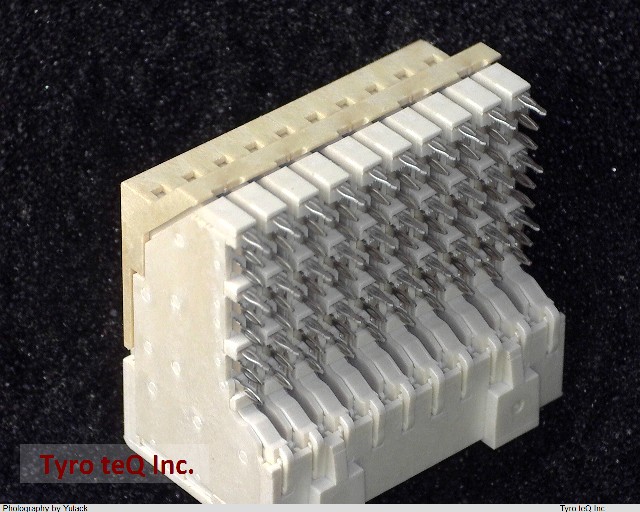

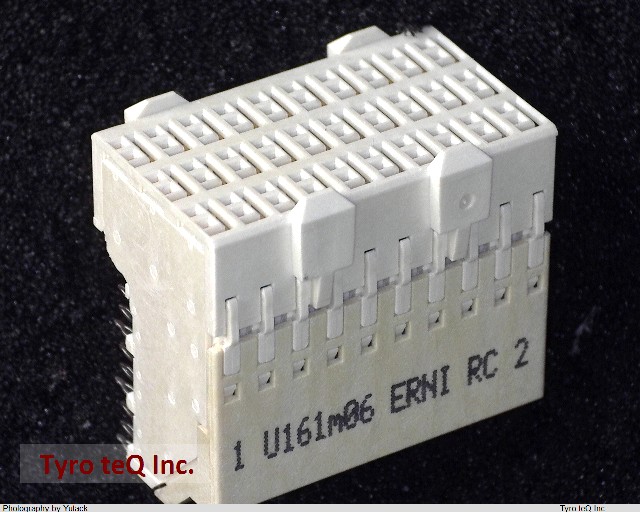

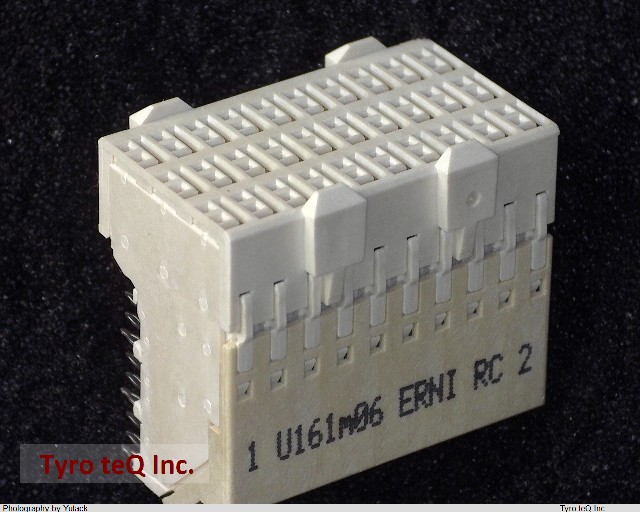

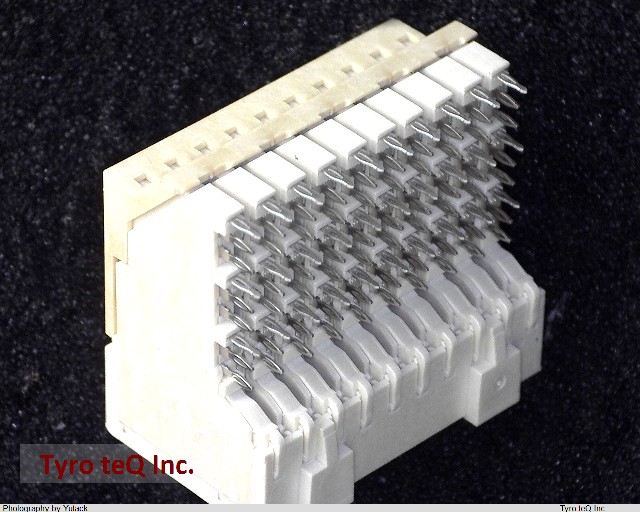

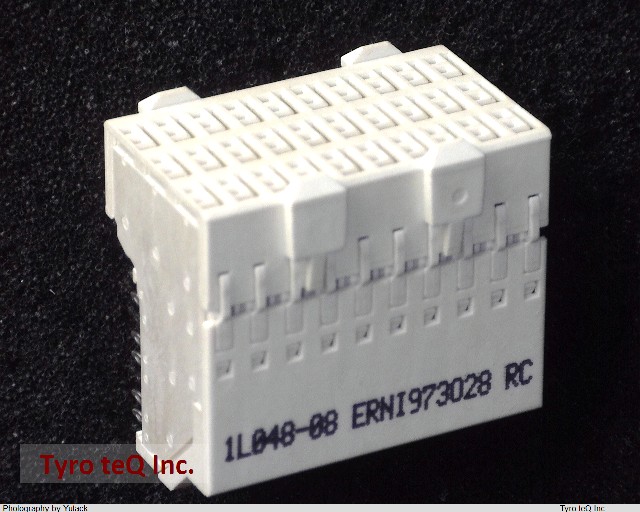

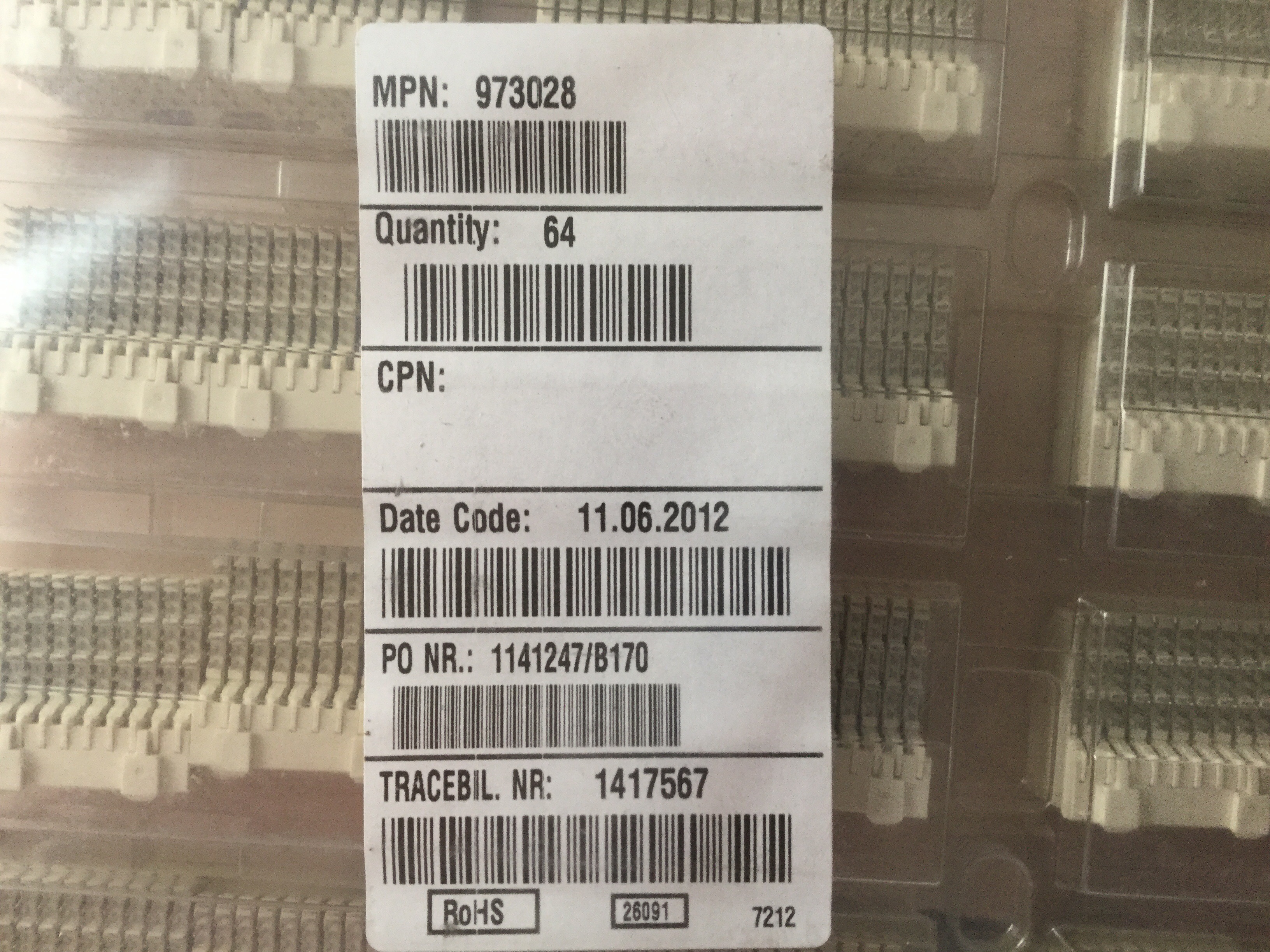

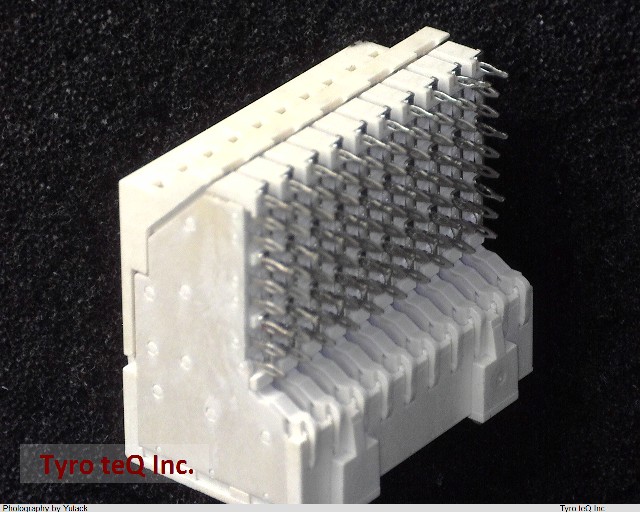

973028

Name: 973028
Brand: ERNI
SKU: 100109663-0000-0000-0000

973028 - ERNI の商品詳細ページです。

２営業日以内に回答いたします

973028 の詳細情報

型番	973028
メーカー	ERNI
Additional Feature	30 GROUND SHIELD CONTACTS IN 3 ROWS ALSO AVAILABLE, POLARIZATION AVAILABLE
Body Breadth	0.665 inch
Body Depth	0.917 inch
Body Length	0.982 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	50 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	700VAC V
Durability	250 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	.695 N
Insulation Resistance	10000000000 ohm
Insulator Material	LIQUID CRYSTAL POLYMER
MIL Conformance	NO
Mating Contact Pitch	0.098 inch
Mating Contact Row Spacing	0.059 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	GUIDE PIN
Mounting Option 2	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	9
Number of Rows Loaded	6
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	1.4986 mm
Plating Thickness	4u inch
Rated Current (Signal)	0.9 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.071 inch
Terminal Pitch	2.5 mm
Termination Type	PRESS FIT
Total Number of Contacts	60
UL Flammability Code	94V-0
Withdrawl Force-Min	.139 N
