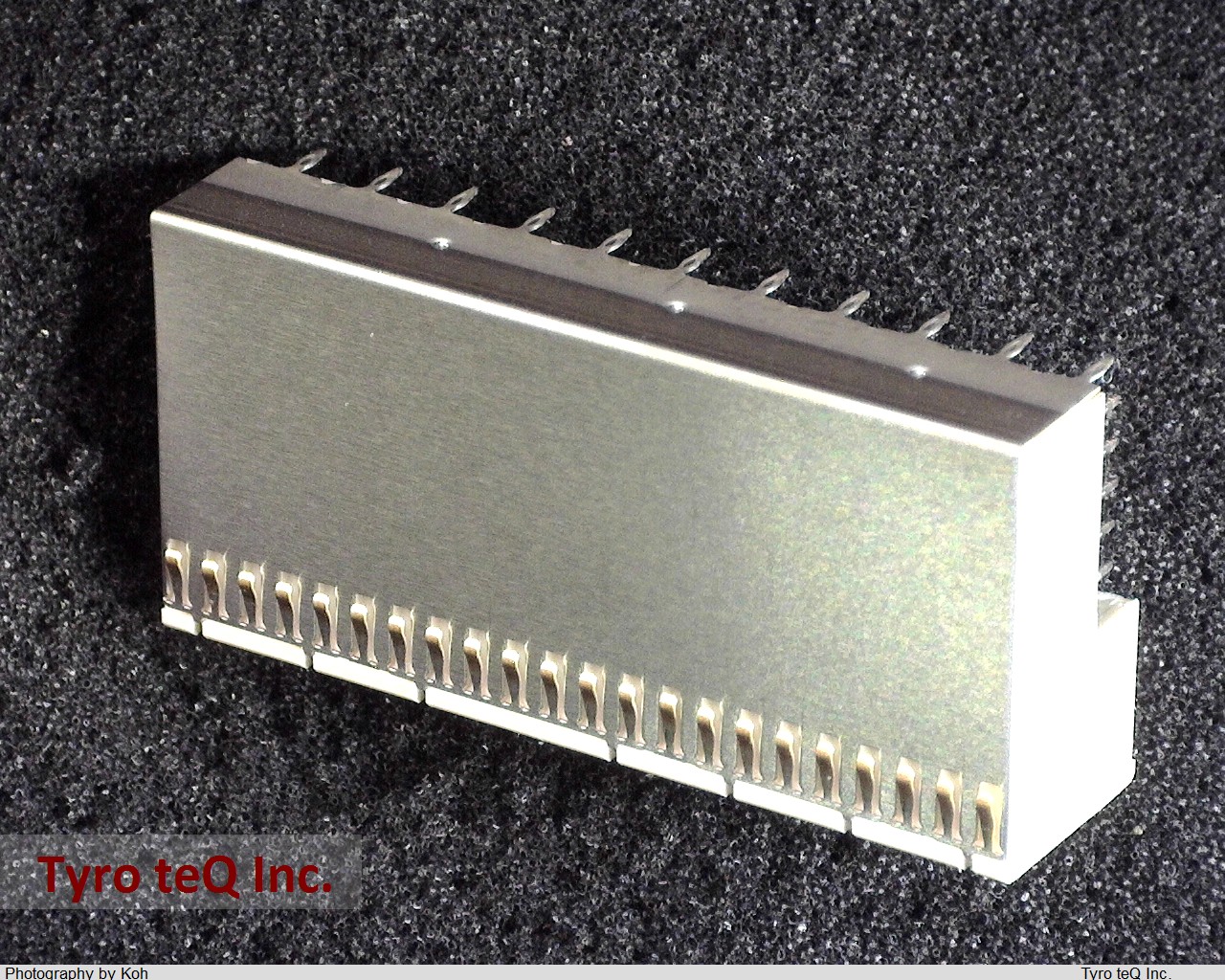

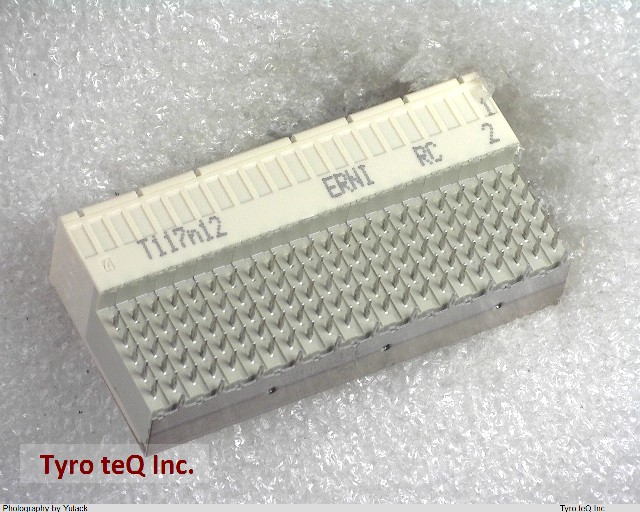

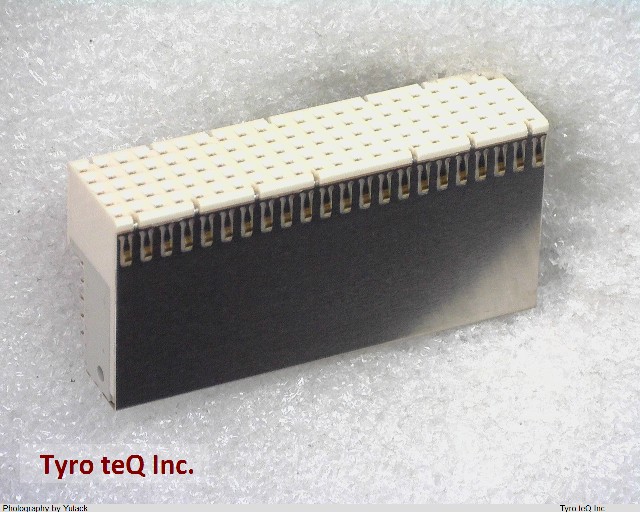

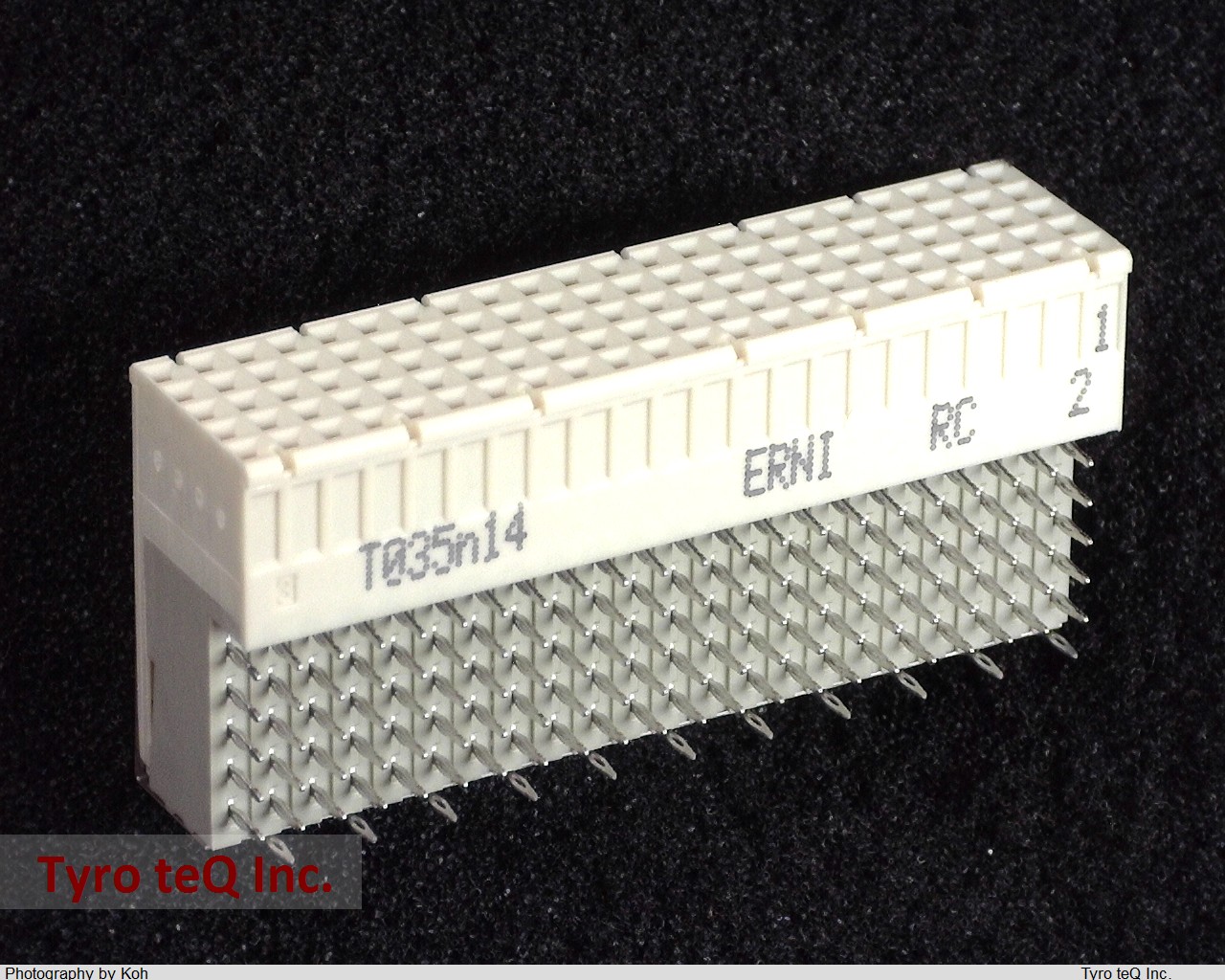

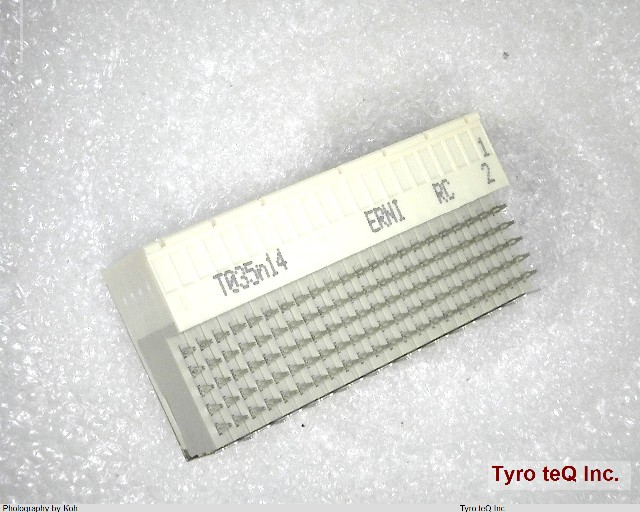

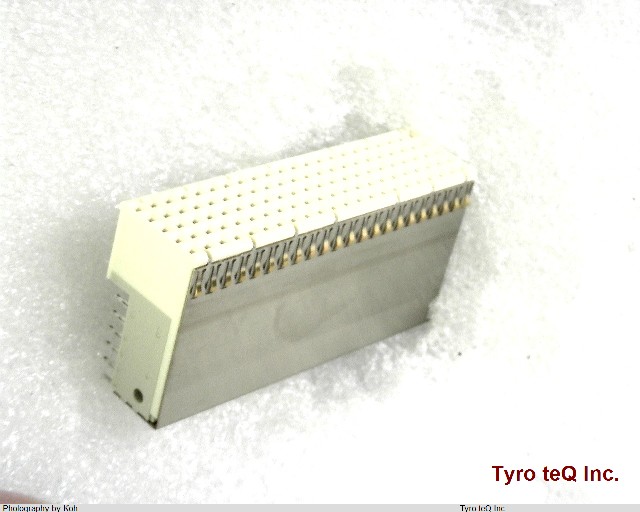

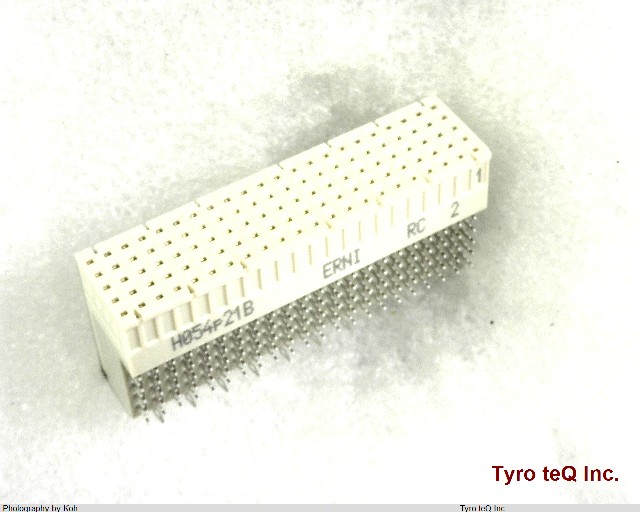

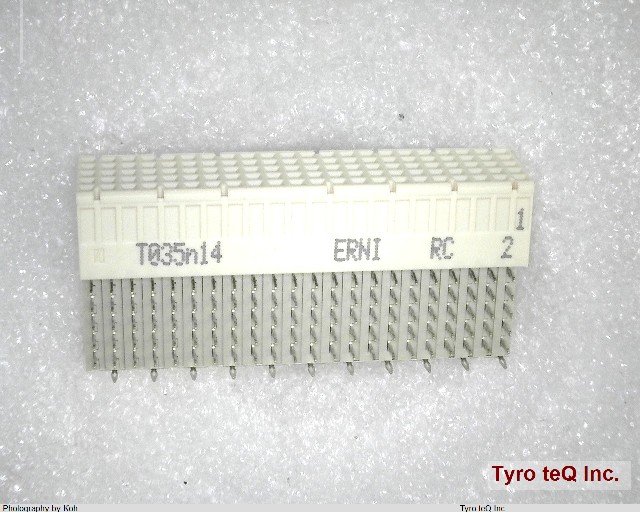

354148 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 354148 |
|---|---|
| メーカー | ERNI |
| Additional Feature | STANDARD: IEC 61076-4-101 |
| Body Breadth | 0.449 inch |
| Body Depth | 0.827 inch |
| Body Length | 1.732 inch |
| Connector Type | BOARD CONNECTOR |
| Contact Finish - Mating | NOT SPECIFIED |
| Contact Gender | FEMALE |
| Contact Material | NOT SPECIFIED |
| Contact Pattern | RECTANGULAR |
| Contact Resistance | 20 mohm |
| Contact Style | SQ PIN-SKT |
| DIN Conformance | NO |
| Durability | 250 Cycles |
| Filter Feature | NO |
| IEC Conformance | NO |
| Insertion Force-Max | 0.75 N |
| Insulation Resistance | 10000000000 ohm |
| Insulator Material | GLASS FILLED POLYBUTYLENE TEREPHTHALATE |
| MIL Conformance | NO |
| Mating Contact Pitch | 0.079 inch |
| Mating Contact Row Spacing | 0.079 inch |
| Mixed Contacts | NO |
| Mounting Option 1 | LOCKING |
| Mounting Style | RIGHT ANGLE |
| Mounting Type | BOARD |
| Number Of Connectors | ONE |
| Number Of PCB Rows | 5 |
| Number of Rows Loaded | 5 |
| Operating Temperature-Max | 125 Cel |
| Operating Temperature-Min | -55 Cel |
| Option | GENERAL PURPOSE |
| PCB Contact Pattern | RECTANGULAR |
| PCB Contact Row Spacing | 2 mm |
| Reference Standard | UL |
| Reliability | COMMERCIAL |
| Sub Category | Headers and Edge Type Connectors |
| Terminal Length | 0.118 inch |
| Terminal Pitch | 2 mm |
| Termination Type | PRESS FIT |
| Total Number of Contacts | 110 |
| Withdrawl Force-Min | 0.15 N |
| 会社名称 | ERNI Electronics Inc. |
|---|---|
| 設立 | 1956 |
| 所在地 | Seestrasse 9 73099 Adelberg ,Germany |
| URL | http://www.erni.com/index.php?id=98 |
