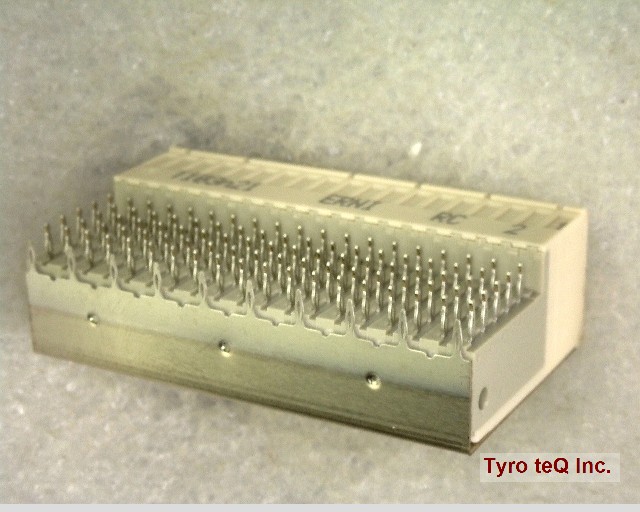

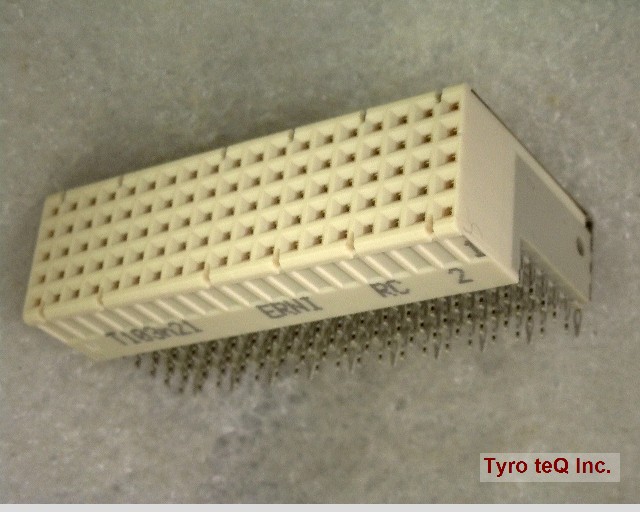

354146

Name: 354146
Brand: ERNI
SKU: 40186623-0000-0000-0000

354146 - ERNI の商品詳細ページです。

２営業日以内に回答いたします

354146 の詳細情報

型番	354146
メーカー	ERNI
Additional Feature	ROHS COMPLIANT
Body Breadth	0.449 inch
Body Depth	0.827 inch
Body Length	1.496 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Durability	250 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	.7506 N
Insulation Resistance	10000000000 ohm
MIL Conformance	NO
Mating Contact Pitch	0.079 inch
Mating Contact Row Spacing	0.079 inch
Mixed Contacts	NO
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	6
Number of Rows Loaded	5
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2 mm
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.118 inch
Terminal Pitch	2 mm
Termination Type	PRESS FIT
Total Number of Contacts	95
Withdrawl Force-Min	.139 N
