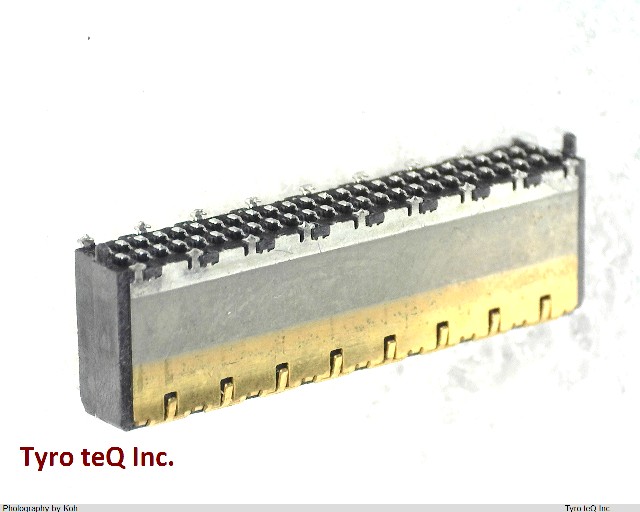

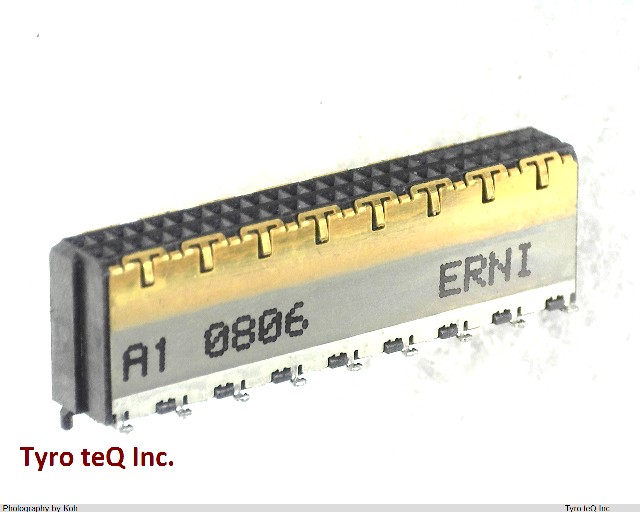

224514 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 224514 |
|---|---|
| メーカー | ERNI |
| Additional Feature | ROHS COMPLIANT |
| Board Mounting Option | PEG |
| Body Breadth | 0.164 inch |
| Body Depth | 0.307 inch |
| Body Length | 1.045 inch |
| Connector Type | BOARD CONNECTOR |
| Contact Finish - Mating | GOLD |
| Contact Finish - Termination | Tin (Sn) |
| Contact Gender | FEMALE |
| Contact Material | NOT SPECIFIED |
| Contact Pattern | RECTANGULAR |
| Contact Resistance | 25 mohm |
| Contact Style | SQ PIN-SKT |
| DIN Conformance | NO |
| Dielectric Withstanding Voltage | 500VAC V |
| Durability | 500 Cycles |
| Filter Feature | NO |
| IEC Conformance | NO |
| Insertion Force-Max | .5004 N |
| Insulation Resistance | 10000000000 ohm |
| Insulator Material | LIQUID CRYSTAL POLYMER |
| JESD-609 Code | e3 |
| MIL Conformance | NO |
| Mating Contact Pitch | 0.039 inch |
| Mating Contact Row Spacing | 0.059 inch |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed Contacts | NO |
| Mounting Option 1 | LOCKING |
| Mounting Style | STRAIGHT |
| Mounting Type | BOARD |
| Number Of Connectors | ONE |
| Number Of PCB Rows | 2 |
| Number of Rows Loaded | 2 |
| Operating Temperature-Max | 125 Cel |
| Operating Temperature-Min | -55 Cel |
| Option | GENERAL PURPOSE |
| PCB Contact Pattern | RECTANGULAR |
| PCB Contact Row Spacing | 1.4986 mm |
| Plating Thickness | 4u inch |
| Polarization Key | POLARIZED HOUSING |
| Rated Current (Signal) | 1 A |
| Reference Standard | UL |
| Reliability | COMMERCIAL |
| Sub Category | Headers and Edge Type Connectors |
| Terminal Pitch | 1 mm |
| Termination Type | SURFACE MOUNT |
| Total Number of Contacts | 50 |
| 会社名称 | ERNI Electronics Inc. |
|---|---|
| 設立 | 1956 |
| 所在地 | Seestrasse 9 73099 Adelberg ,Germany |
| URL | http://www.erni.com/index.php?id=98 |
