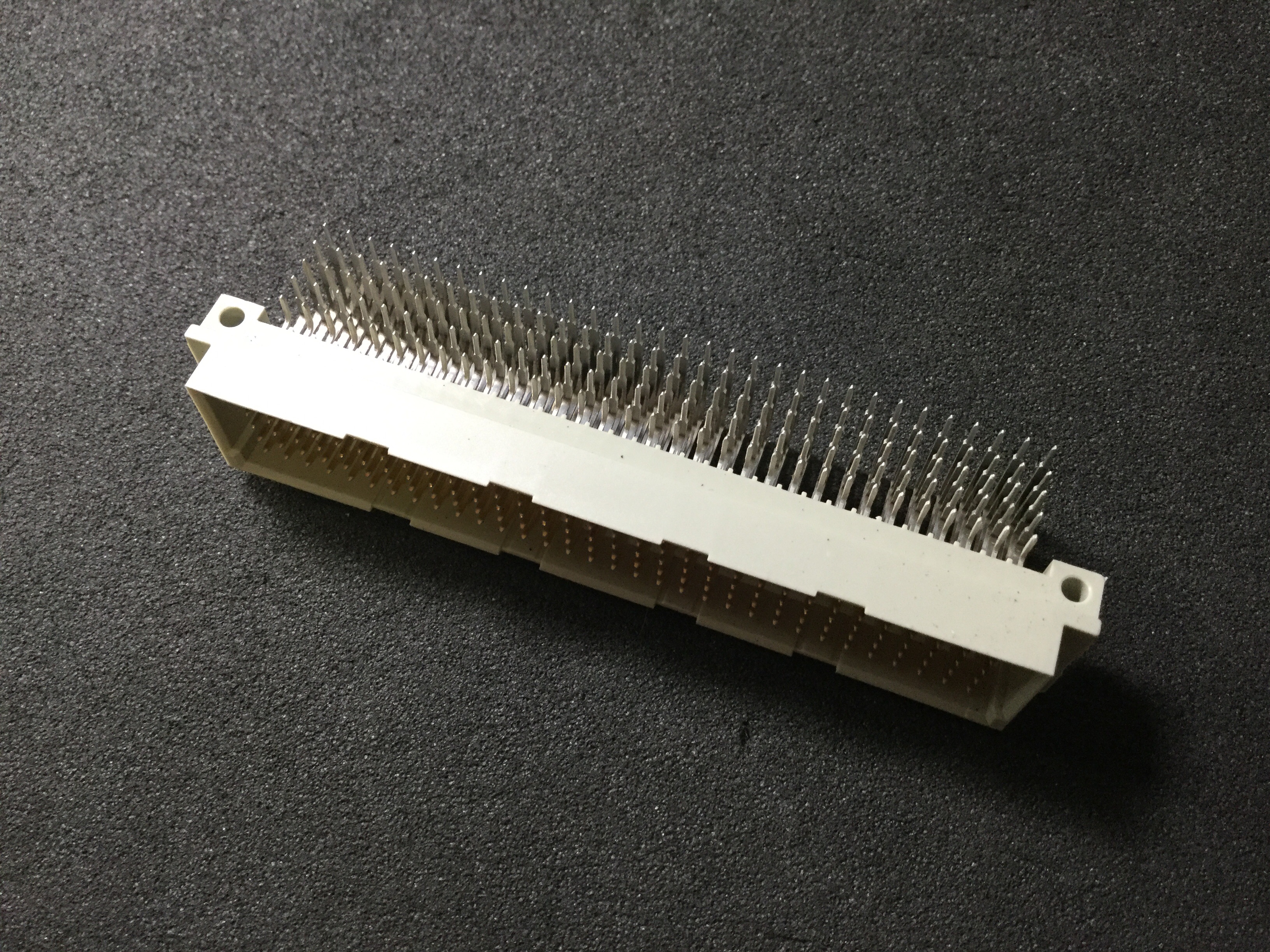

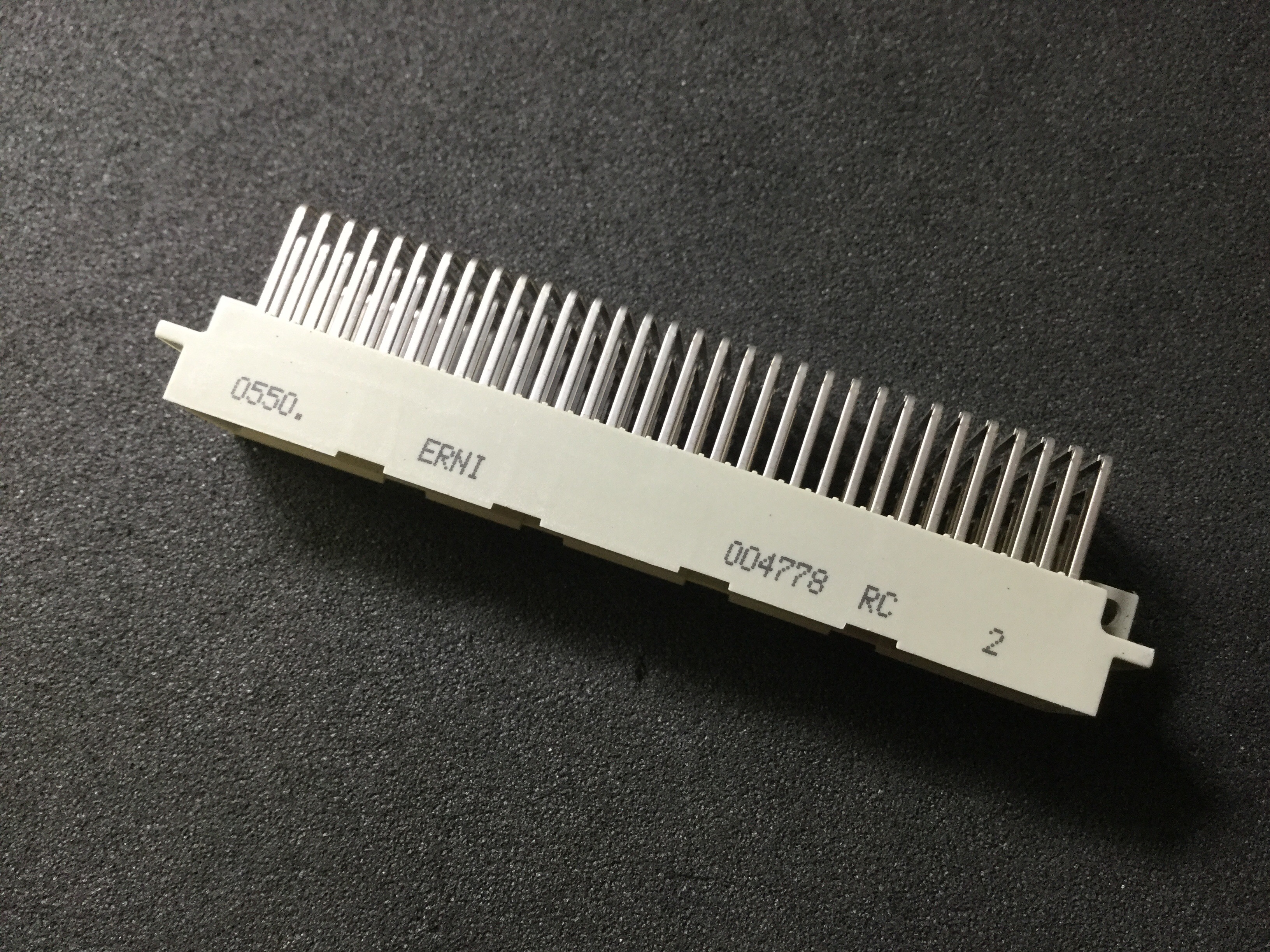

004778

Name: 004778
Brand: ERNI
SKU: 10146288-0000-0000-0000

004778 - ERNI の商品詳細ページです。

２営業日以内に回答いたします

004778 の詳細情報

型番	004778
メーカー	ERNI
Additional Feature	STANDARDS: DIN 41612; IEC 60603-2
Body Breadth	0.638 inch
Body Depth	0.892 inch
Body Length	3.701 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD EURO CONNECTOR
Contact Finish - Mating	TIN
Contact Finish - Termination	Gold (Au)
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	YES
Dielectric Withstanding Voltage	1000VAC V
Durability	400 Cycles
Filter Feature	NO
IEC Conformance	YES
Insertion Force-Max	.695 N
Insulation Resistance	1000000000000 ohm
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e4
MIL Conformance	NO
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Name of Rows Loaded	A,B,C,D,E
Number Of PCB Rows	5
Number of Rows Loaded	5
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-65 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.54 mm
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.118 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	160
UL Flammability Code	94V-0
Withdrawl Force-Min	.695 N
