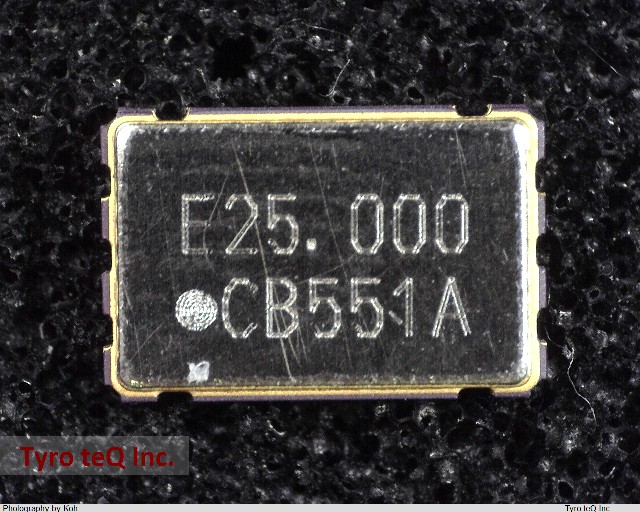

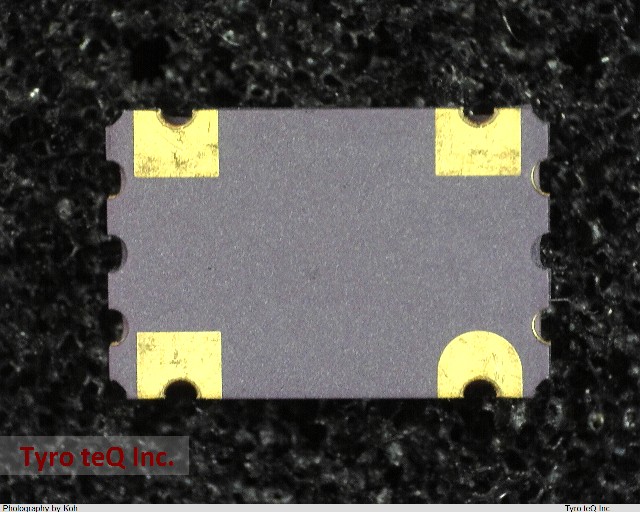

SG-710ECK 25.0000MB

Name: SG-710ECK 25.0000MB
Brand: EPSON
SKU: 290076793-0000-0000-0000

SG-710ECK 25.0000MB - EPSON の商品詳細ページです。

２営業日以内に回答いたします

SG-710ECK 25.0000MB の詳細情報

型番	SG-710ECK 25.0000MB
メーカー	EPSON
Additional Feature	STANDBY; BULK
Fall Time-Max	6 ns
Frequency Adjustment-Mechanical	NO
Frequency Stability	50 %
Mounting Feature	SURFACE MOUNT
Number of Terminals	4
Operating Frequency-Max	67 MHz
Operating Frequency-Min	1.8 MHz
Operating Frequency-Nom	25 MHz
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-20 Cel
Oscillator Type	CMOS
Output Load	15 pF
Output Low Current-Max	2 Amp
Package Body Material	CERAMIC
Package Equivalence Code	DILCC4,.2,200
Physical Dimension	7.3mm x 4.8mm x 1.3mm
Power Supplies	3.3 V
Qualification Status	Not Qualified
Rise Time-Max	6 ms
Sub Category	Other Oscillators
Supply Current-Max	8 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Symmetry-Max	55/45 %
Technology	CMOS
