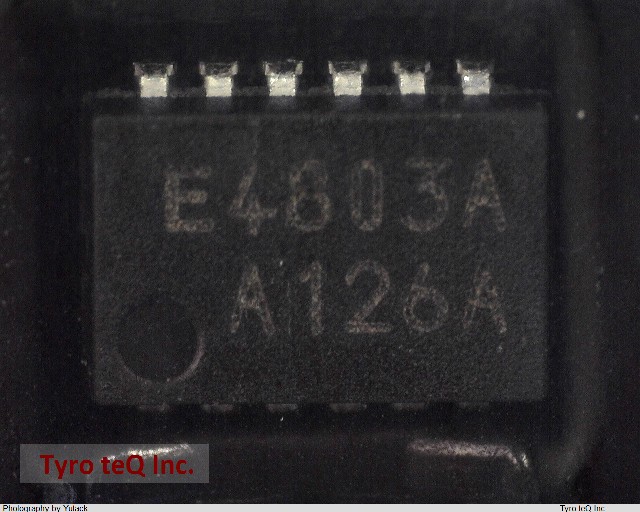

RX-4803LC

Name: RX-4803LC
Brand: EPSON
SKU: 280414322-0000-0000-0000

RX-4803LC - EPSON の商品詳細ページです。

２営業日以内に回答いたします

RX-4803LC の詳細情報

型番	RX-4803LC
メーカー	EPSON
Clock Frequency-Max	0.032 MHz
Information Access Method	SERIAL, 4-WIRE/SPI
Interrupt Capability	Y
JESD-30 Code	R-PDSO-J12
JESD-609 Code	e3
Length	3.6 mm
Number of Terminals	12
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOJ
Package Equivalence Code	TSSOJ12,.11,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	1.8/5 V
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Timer or RTC
Supply Voltage-Max	5.5 V
Supply Voltage-Min	1.6 V
Supply Voltage-Nom	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN
Terminal Form	J BEND
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time-Min	SECONDS
Time@Peak Reflow Temperature-Max (s)	30
Volatile	YES
Width	2.4 mm
uPs/uCs/Peripheral ICs Type	TIMER, REAL TIME CLOCK
