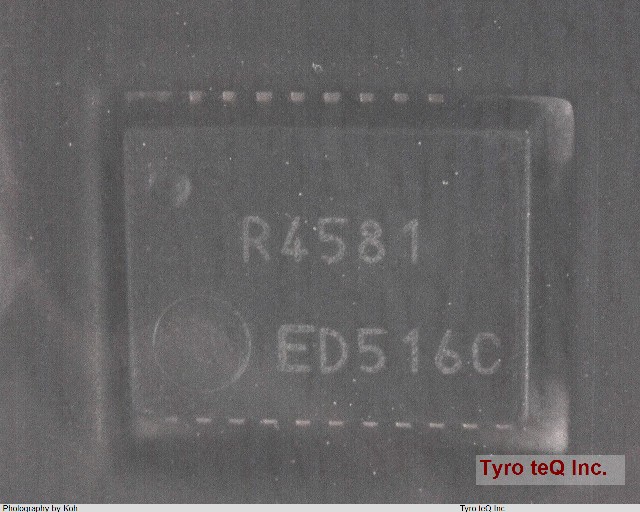

RX-4581NBB データシート

Name: RX-4581NBB
Brand: EPSON
SKU: 280180858-0000-0000-0000

RX-4581NBB - EPSON の商品詳細ページです。

２営業日以内に回答いたします

RX-4581NBB の詳細情報

型番	RX-4581NBB
メーカー	EPSON
データシート
Additional Feature	LG-MAX
Clock Frequency-Max	0.032 MHz
External Data Bus Width	0
Information Access Method	SERIAL, 3-WIRE
Interrupt Capability	Y
JESD-30 Code	R-PDSO-N22
Length	6.3 mm
Number of Terminals	22
Number of Timers	0
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SON
Package Equivalence Code	SOLCC22,.2,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	1.6/5.5 V
Qualification Status	Not Qualified
Seated Height-Max	1.4 mm
Sub Category	Timers or RTCs
Supply Voltage-Max	5.5 V
Supply Voltage-Min	1.6 V
Supply Voltage-Nom	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time-Min	SECONDS
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Volatile	YES
Width	4.8 mm
uPs/uCs/Peripheral ICs Type	TIMER, REAL TIME CLOCK
