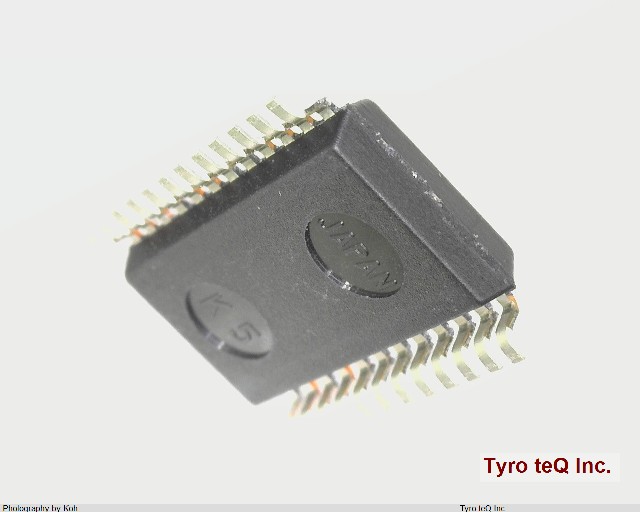

RTC-7301SF

Name: RTC-7301SF
Brand: EPSON
SKU: 280413864-0000-0000-0000

RTC-7301SF - EPSON の商品詳細ページです。

２営業日以内に回答いたします

RTC-7301SF の詳細情報

型番	RTC-7301SF
メーカー	EPSON
Clock Frequency-Max	0.032 MHz
External Data Bus Width	4
Information Access Method	PARALLEL
Interrupt Capability	Y
JESD-30 Code	R-PDSO-G24
JESD-609 Code	e2
Length	10.2 mm
Number of Bits	4
Number of Terminals	24
Number of Timers	0
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SOP24,.3,32
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	1.8/5 V
Qualification Status	Not Qualified
Seated Height-Max	2 mm
Sub Category	Timer or RTC
Supply Voltage-Max	5.5 V
Supply Voltage-Min	1.6 V
Supply Voltage-Nom	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN/TIN SILVER
Terminal Form	GULL WING
Terminal Pitch	0.8 mm
Terminal Position	DUAL
Time-Min	SECONDS
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Volatile	YES
Width	5.4 mm
uPs/uCs/Peripheral ICs Type	TIMER, REAL TIME CLOCK
