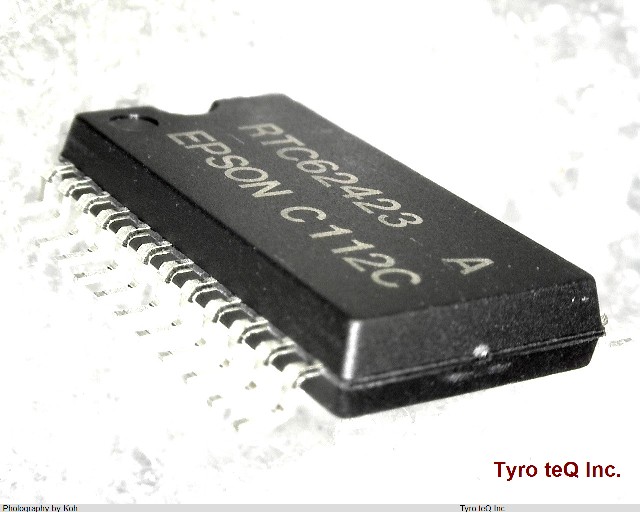

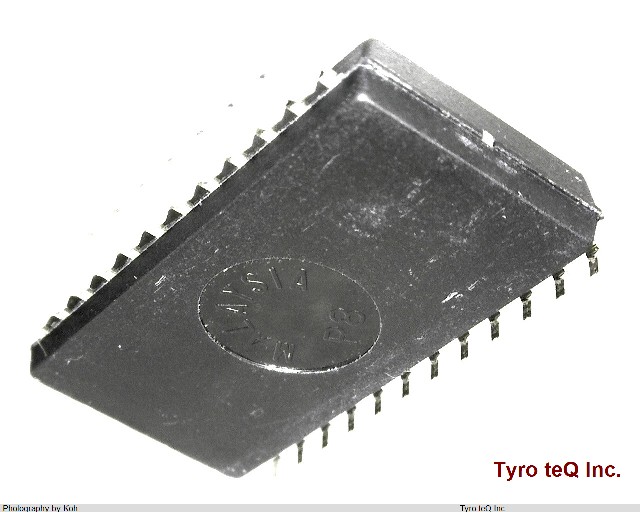

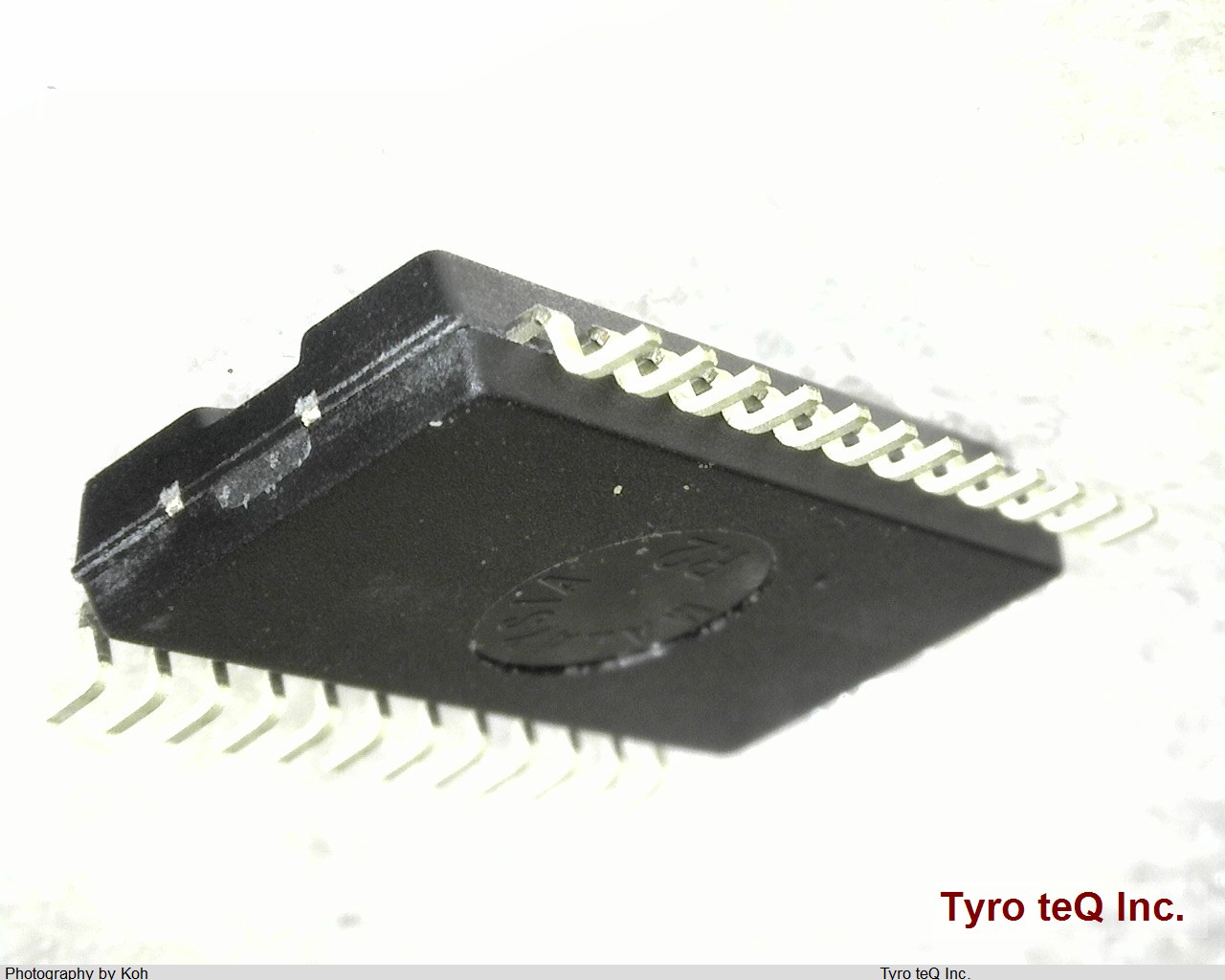

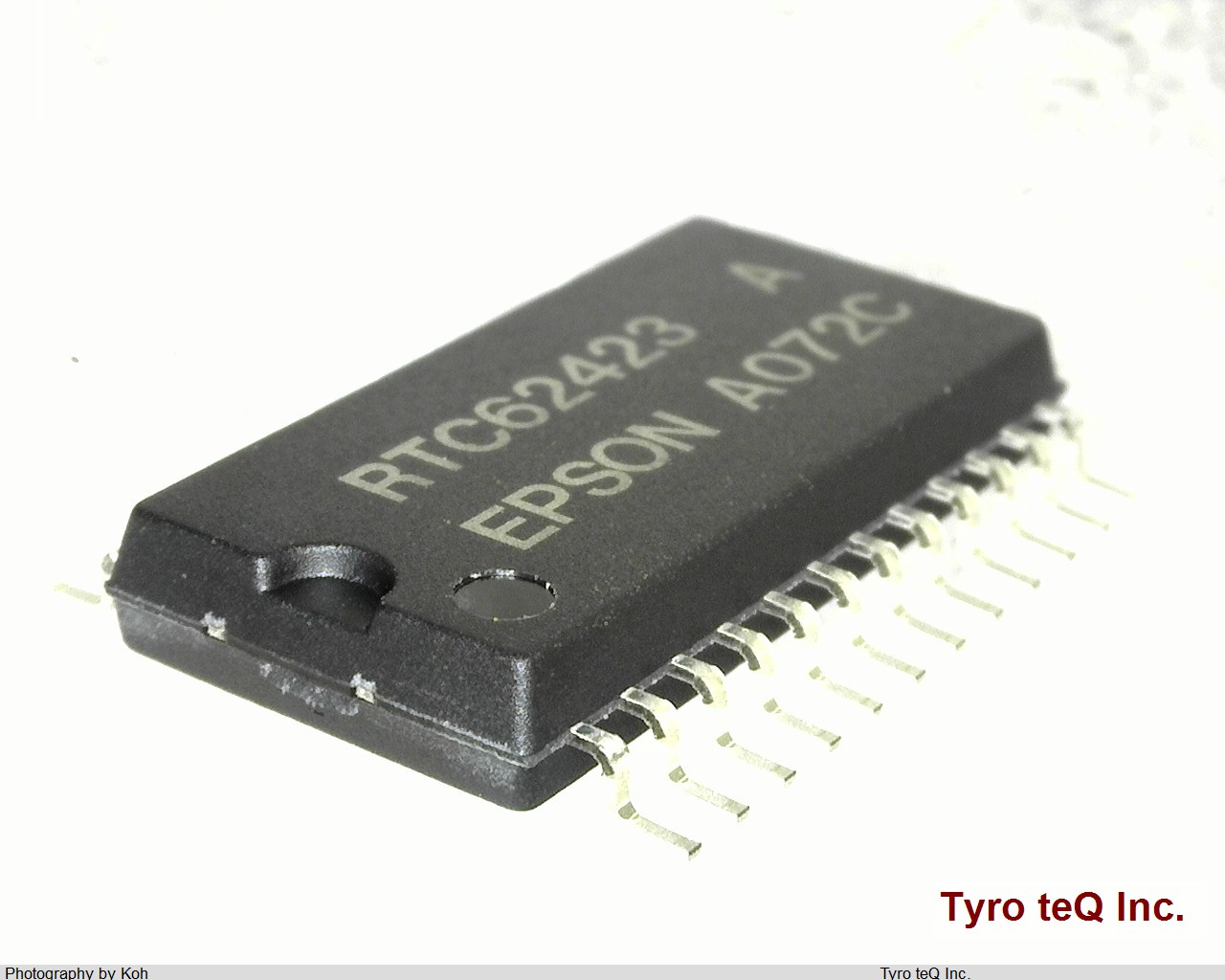

RTC62423A

Name: RTC62423A
Brand: EPSON
SKU: 280412687-0000-0000-0000

RTC62423A - EPSON の商品詳細ページです。

２営業日以内に回答いたします

RTC62423A の詳細情報

型番	RTC62423A
メーカー	EPSON
Clock Frequency-Max	0.032 MHz
External Data Bus Width	4
Information Access Method	PARALLEL
Interrupt Capability	N
JESD-30 Code	R-PDSO-G24
JESD-609 Code	e3
Number of Terminals	24
Number of Timers	0
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP24,.5
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	2.8 mm
Sub Category	Timer or RTC
Supply Current-Max	0.03 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time-Min	SECONDS
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Volatile	YES
Width	7.9 mm
uPs/uCs/Peripheral ICs Type	TIMER, REAL TIME CLOCK
