EN29LV800CT-70BIP Eon

EN29LV800CT-70BIP - EON の商品詳細ページです。

1

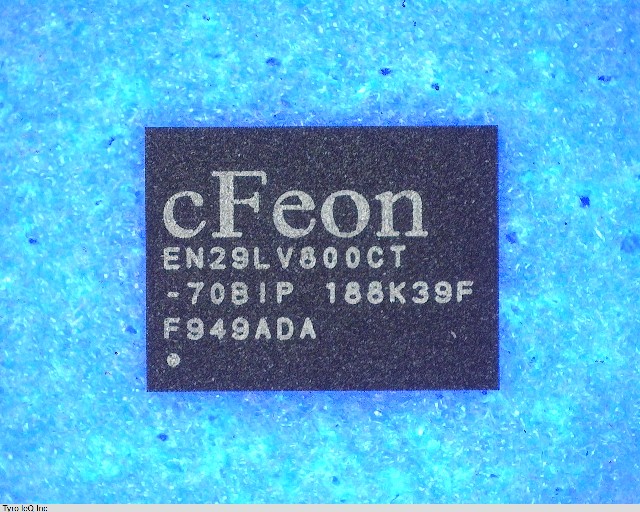

EN29LV800CT-70BIP
  • EN29LV800CT-70BIP
  • EN29LV800CT-70BIP
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

EN29LV800CT-70BIP の詳細情報

  • 仕様・詳細
  • メーカー情報
型番EN29LV800CT-70BIP
メーカーEON
Access Time-Max 70 ns
Additional Feature TOP BOOT SECTOR
Alternate Memory Width 8
Boot Block TOP
Command User Interface YES
Data Polling YES
Endurance 100000 Write/Erase Cycles
JESD-30 Code R-PBGA-B48
Length 8 mm
Memory Density 8388608 bit
Memory IC Type FLASH
Memory Width 16
Number of Functions 1
Number of Sectors/Size 1,2,1,15
Number of Terminals 48
Number of Words 524288 words
Number of Words Code 512K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
Organization 512KX16
Package Body Material PLASTIC/EPOXY
Package Code LFBGA
Package Equivalence Code BGA48,6X8,32
Package Shape RECTANGULAR
Package Style GRID ARRAY, LOW PROFILE, FINE PITCH Meter
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies 3/3.3 V
Programming Voltage 3 V
Qualification Status Not Qualified
Ready/Busy YES
Seated Height-Max 1.3 mm
Sector Size 16K,8K,32K,64K Words
Standby Current-Max 5.0E-6 Amp
Sub Category Flash Memories
Supply Current-Max 0.02 mA
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 2.7 V
Supply Voltage-Nom (Vsup) 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form BALL
Terminal Pitch 0.8 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Toggle Bit YES
Type NOR TYPE
Width 6 mm
会社名称Eon Silicon Solution Inc.
設立2002
所在地6F-2, No.30, Tai-Yuan Street,Chu-Pei, Hsin-Chu, Taiwan.
URLhttp://www.eonssi.com/
