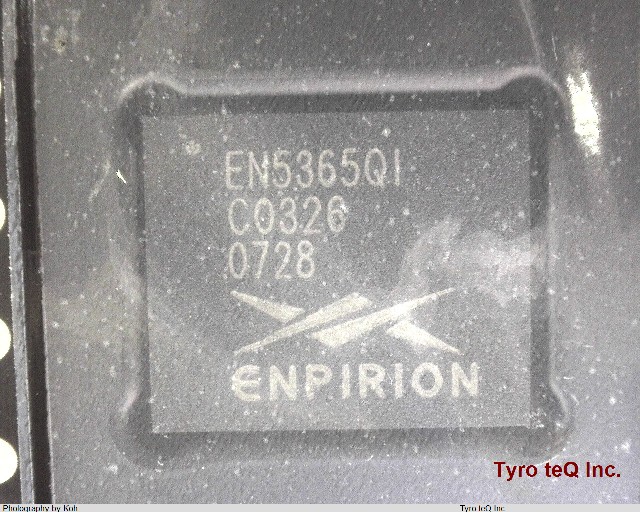

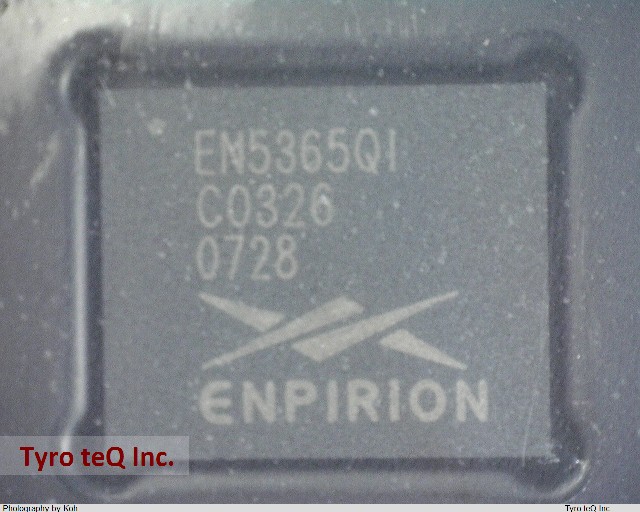

EN5365QI データシート

Name: EN5365QI
Brand: ENPIRION
SKU: 150067721-0000-0000-0000

EN5365QI - ENPIRION の商品詳細ページです。

56時間44分後以内に見積もり依頼を頂ければ、
04月23日(火) 9:00 までに見積もり回答いたします。

検討リストに追加する

EN5365QI の詳細情報

型番	EN5365QI
メーカー	ENPIRION
データシート
Additional Feature	ALSO OPERATES IN THE ADJUSTABLE MODE FROM 0.75 TO 3.3V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	5.5 V
Input Voltage-Min	2.375 V
Input Voltage-Nom	5 V
JESD-30 Code	R-PQCC-N58
JESD-609 Code	e3
Length	12 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	58
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	6 A
Package Body Material	PLASTIC/EPOXY
Package Code	HQCCN
Package Equivalence Code	LCC58,.39X.47,25
Package Shape	RECTANGULAR
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Seated Height-Max	1.95 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	5000 kHz
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.635 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	10 mm
