EDS1216AATA-75-E Elpida

EDS1216AATA-75-E - ELPIDA の商品詳細ページです。

1

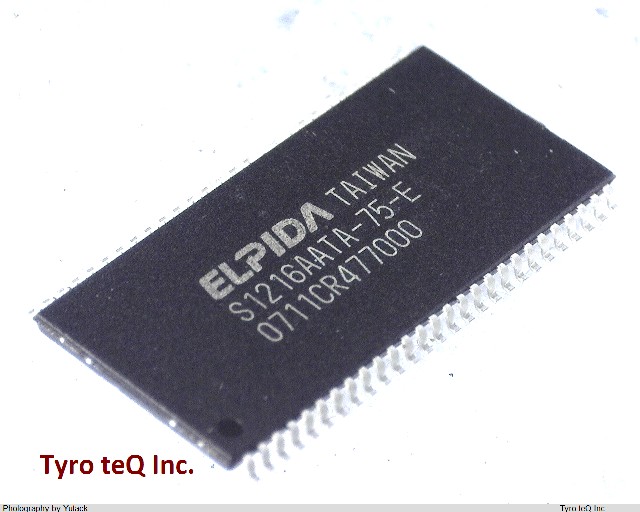

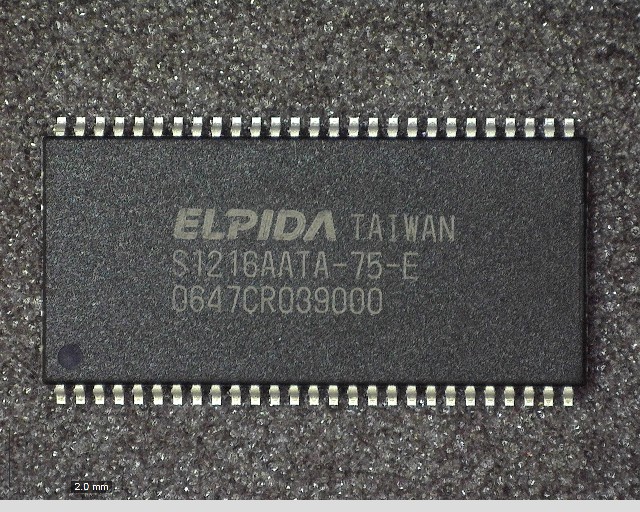

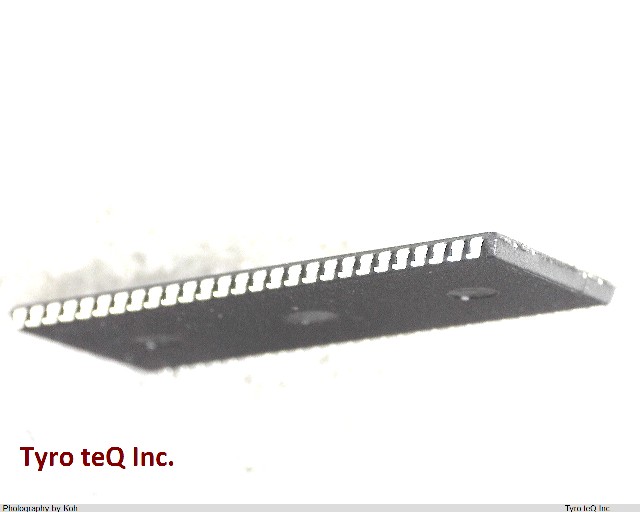

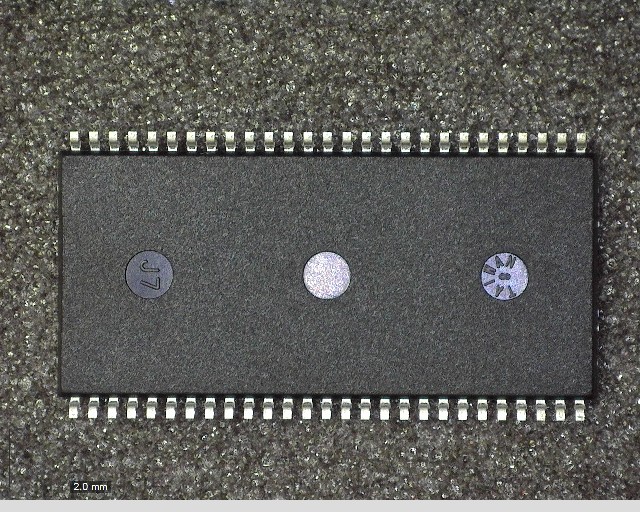

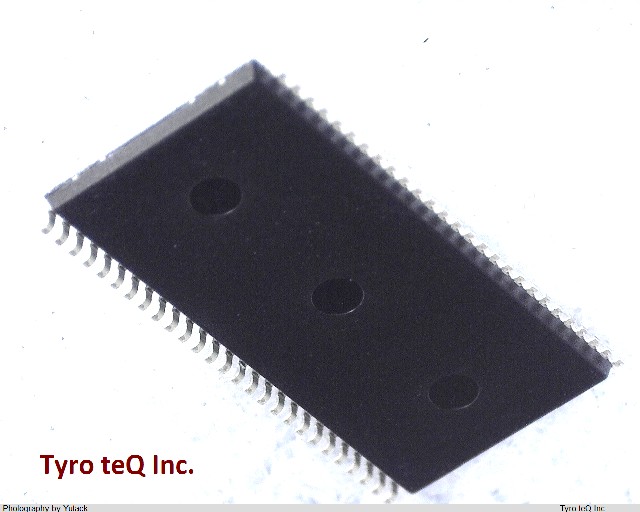

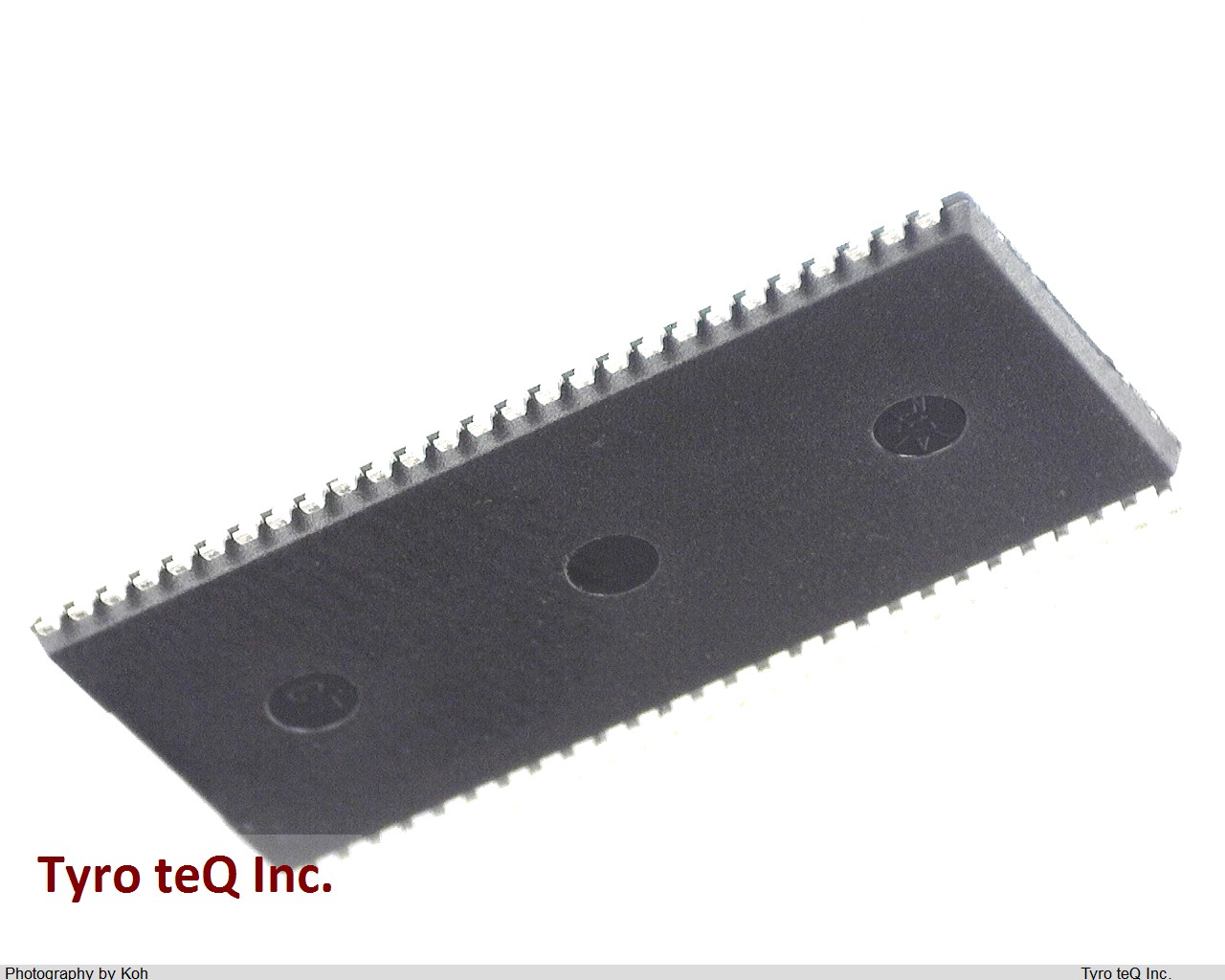

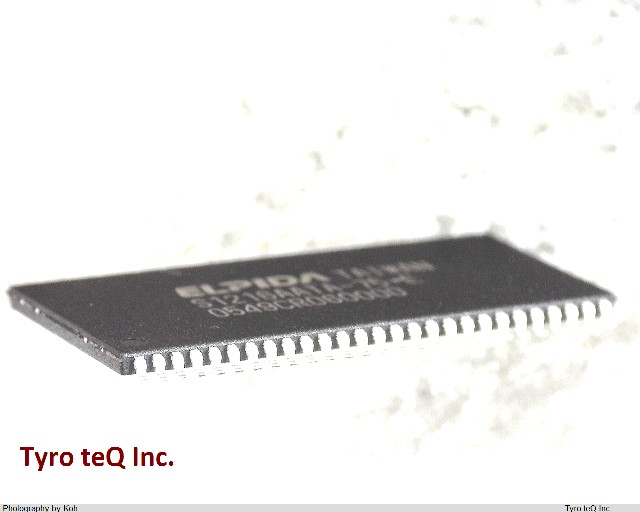

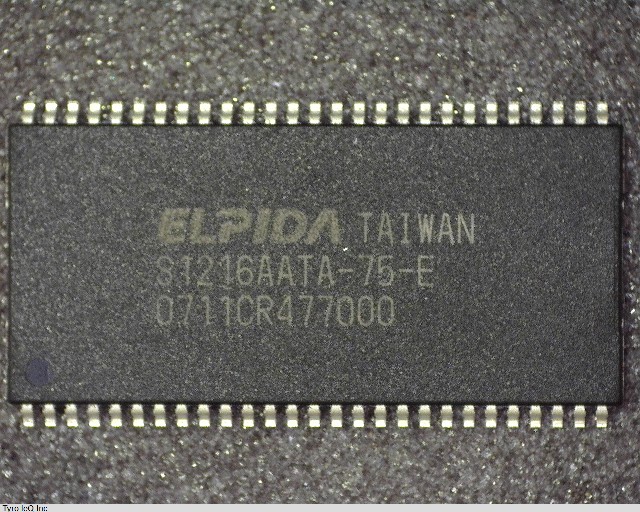

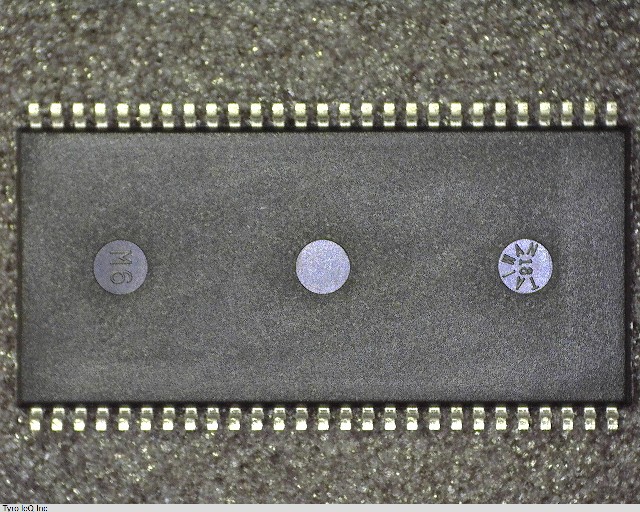

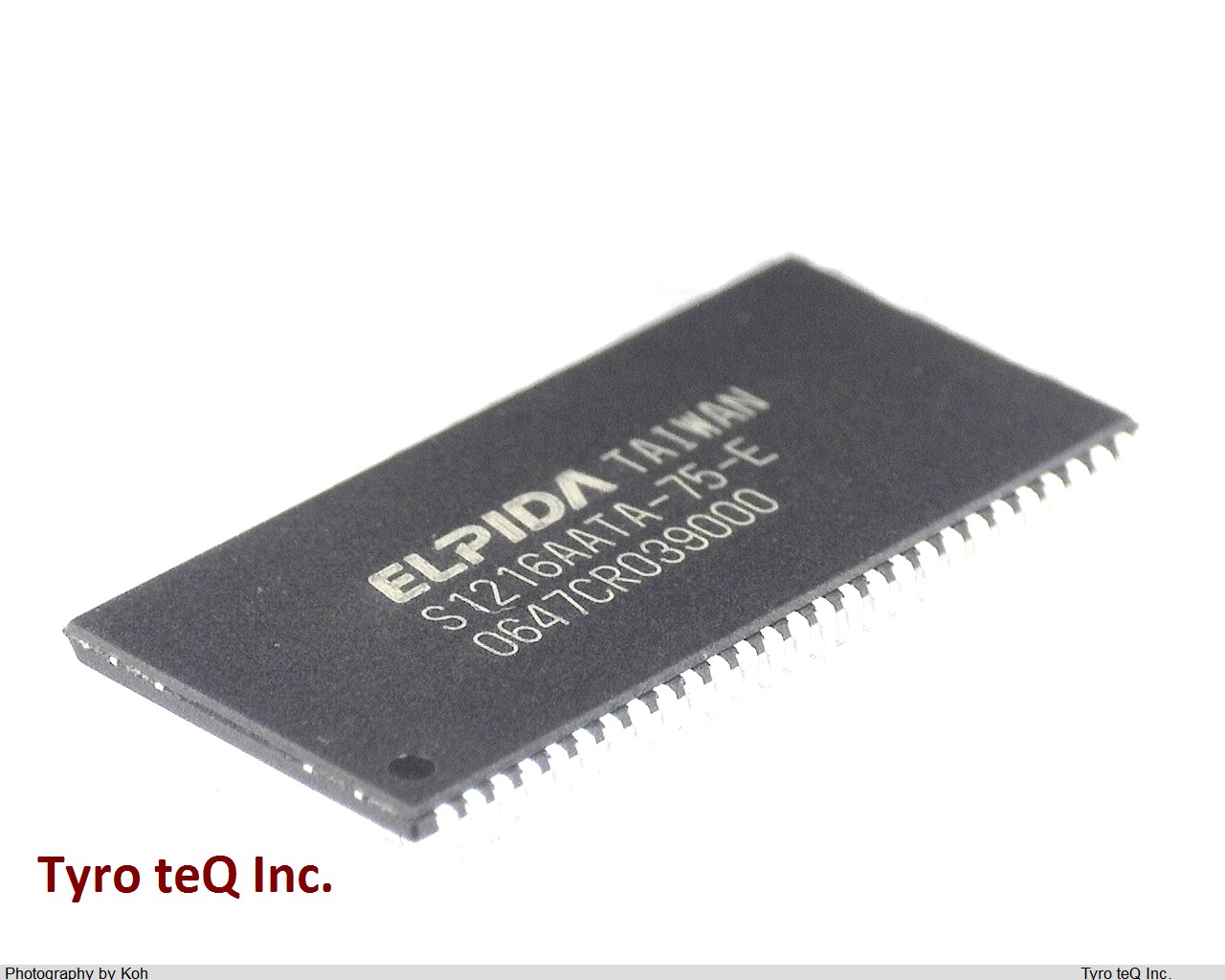

EDS1216AATA-75-E
  • EDS1216AATA-75-E
  • EDS1216AATA-75-E
  • EDS1216AATA-75-E
  • EDS1216AATA-75-E
  • EDS1216AATA-75-E
  • EDS1216AATA-75-E
  • EDS1216AATA-75-E
  • EDS1216AATA-75-E
  • EDS1216AATA-75-E
  • EDS1216AATA-75-E
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

EDS1216AATA-75-E の詳細情報

  • 仕様・詳細
  • メーカー情報
型番EDS1216AATA-75-E
メーカーELPIDA
Access Mode FOUR BANK PAGE BURST
Access Time-Max 5.4 ns
Additional Feature AUTO/SELF REFRESH
Clock Frequency-Max (fCLK) 133 MHz
I/O Type COMMON
Interleaved Burst Length 1,2,4,8
JESD-30 Code R-PDSO-G54
JESD-609 Code e6
Length 22.22 mm
Memory Density 134217728 bit
Memory IC Type SYNCHRONOUS DRAM
Memory Width 16
Number of Functions 1
Number of Ports 1
Number of Terminals 54
Number of Words 8388608 words
Number of Words Code 8M
Operating Mode SYNCHRONOUS
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Organization 8MX16
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TSOP2
Package Equivalence Code TSOP54,.46,32
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE Meter
Power Supplies 3.3 V
Qualification Status Not Qualified
Refresh Cycles 4096
Seated Height-Max 1.2 mm
Self Refresh YES
Sequential Burst Length 1,2,4,8,FP
Standby Current-Max 0.002 Amp
Sub Category DRAMs
Supply Current-Max 0.22 mA
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 3 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN BISMUTH
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position DUAL
Width 10.16 mm
