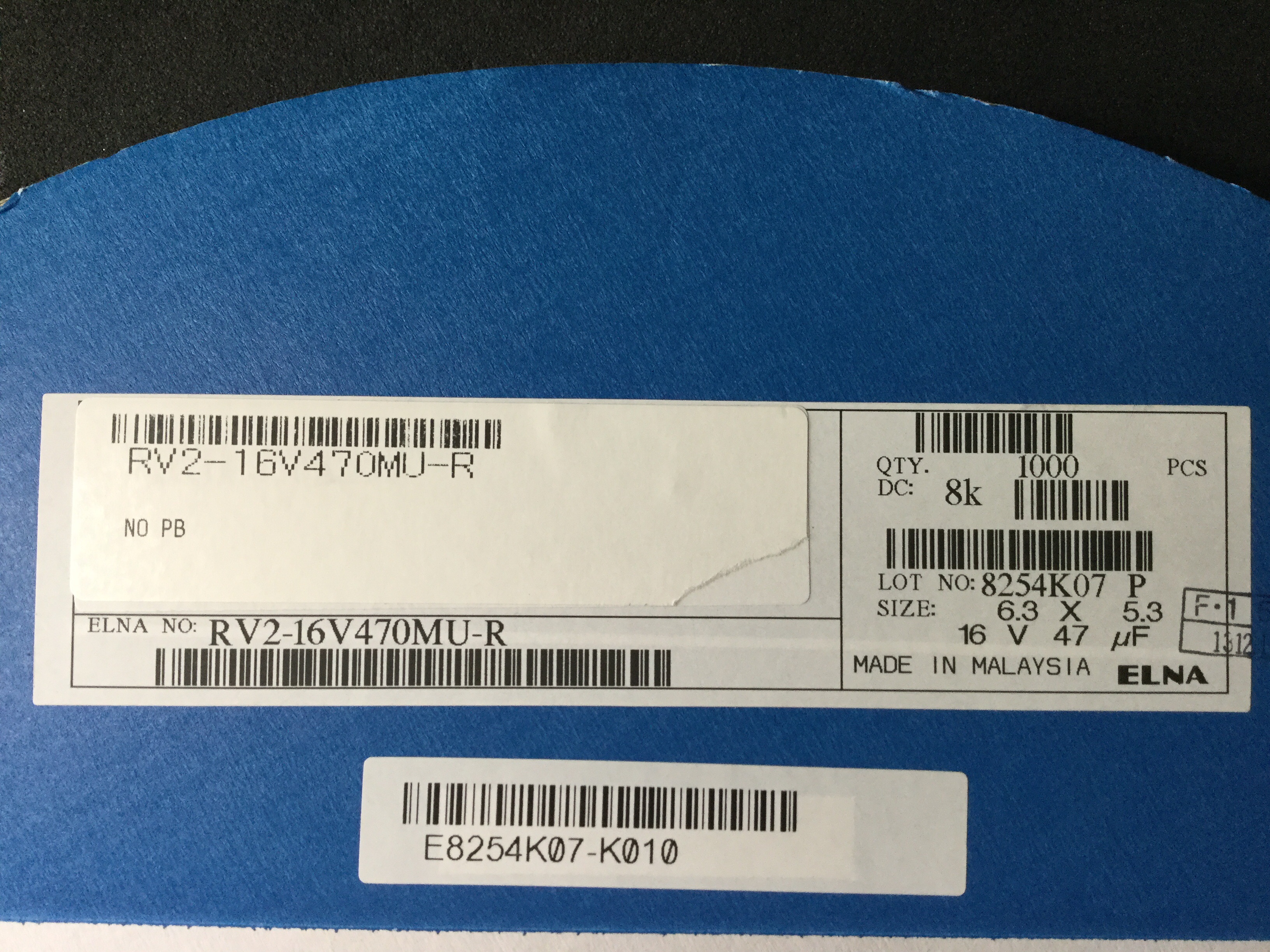

RV2-16V470MU-R

Name: RV2-16V470MU-R
Brand: ELNA
SKU: 280247041-0000-0000-0000

RV2-16V470MU-R - ELNA の商品詳細ページです。

２営業日以内に回答いたします

RV2-16V470MU-R の詳細情報

型番	RV2-16V470MU-R
メーカー	ELNA
Capacitance	47 uF
Capacitor Type	ALUMINUM ELECTROLYTIC CAPACITOR
Dielectric Material	ALUMINUM (WET)
ESR	7100 mohm
Height	5.3 mm
Leakage Current	.00752 mA
Length	6.6 mm
Mounting Feature	SURFACE MOUNT
Negative Tolerance	20 %
Number of Terminals	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Shape	CYLINDRICAL PACKAGE
Package Style	SMT Meter
Packing Method	TR, CARDBOARD, 15 INCH
Polarity	POLARIZED
Positive Tolerance	20 %
Rated DC Voltage (URdc)	16 V
Reference Standard	IEC60384-18
Ripple Current	75 mA
Size Code	2626
Tan Delta	0.20
Terminal Shape	FLAT
Width	7.4 mm
