EL4584CN データシート

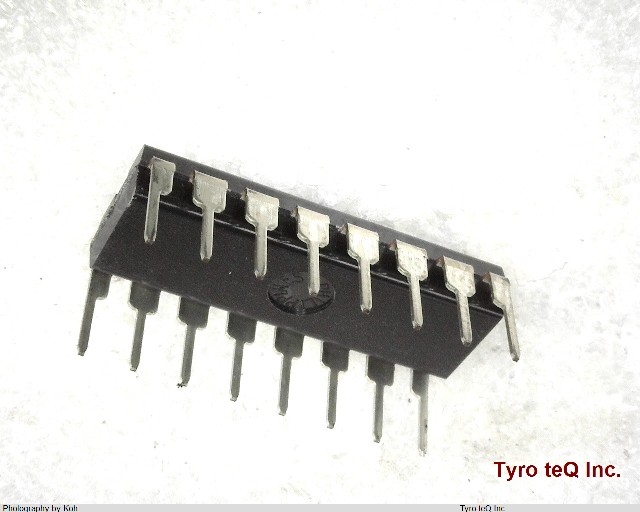

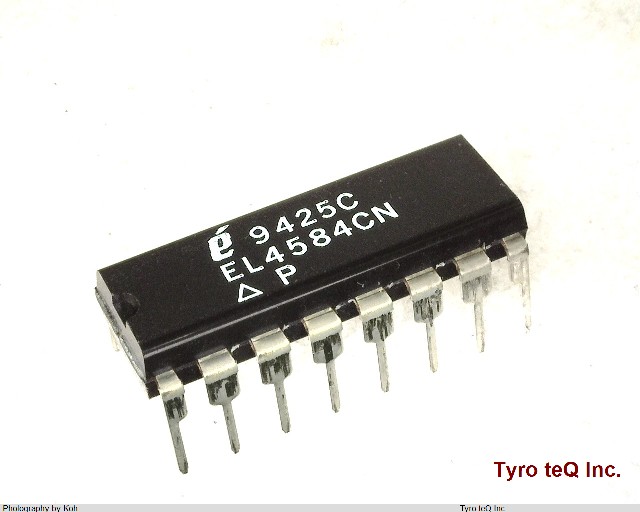

Name: EL4584CN
Brand: ELANTEC
SKU: 150031560-0000-0000-0000

EL4584CN - ELANTEC の商品詳細ページです。

２営業日以内に回答いたします

EL4584CN の詳細情報

型番	EL4584CN
メーカー	ELANTEC
データシート
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.05 mm
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Clock Frequency-Max	36 MHz
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Primary Clock/Crystal Frequency-Nom	36 MHz
Qualification Status	Not Qualified
Seated Height-Max	5.334 mm
Sub Category	Other Microprocessor ICs
Supply Current-Max	4 mA
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
uPs/uCs/Peripheral ICs Type	CLOCK GENERATOR, VIDEO

会社名称	Intersil Americas LLC
設立	1967
所在地	1001 Murphy Ranch Road Milpitas, CA 95035 USA
URL	http://www.intersil.com/en.html
