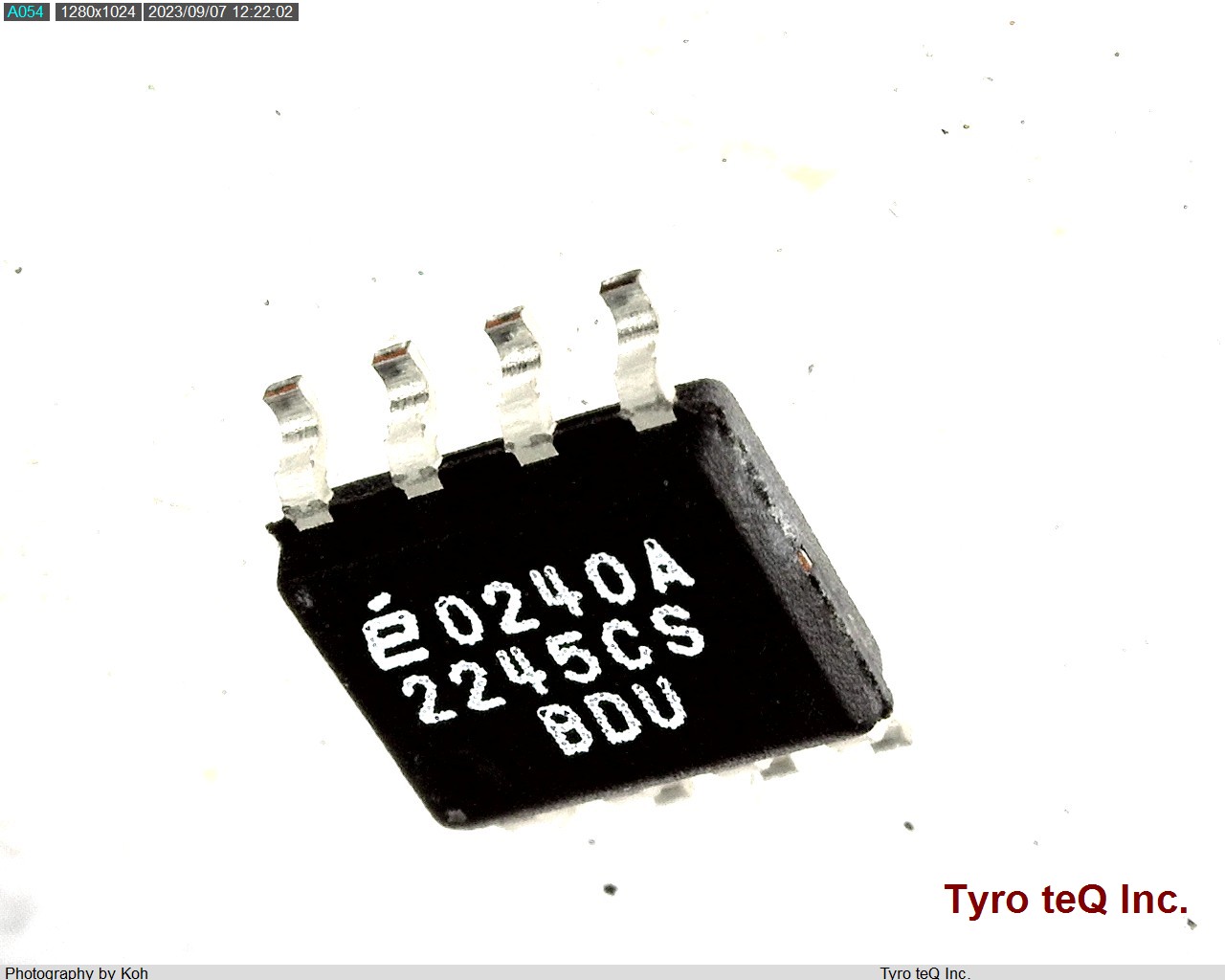

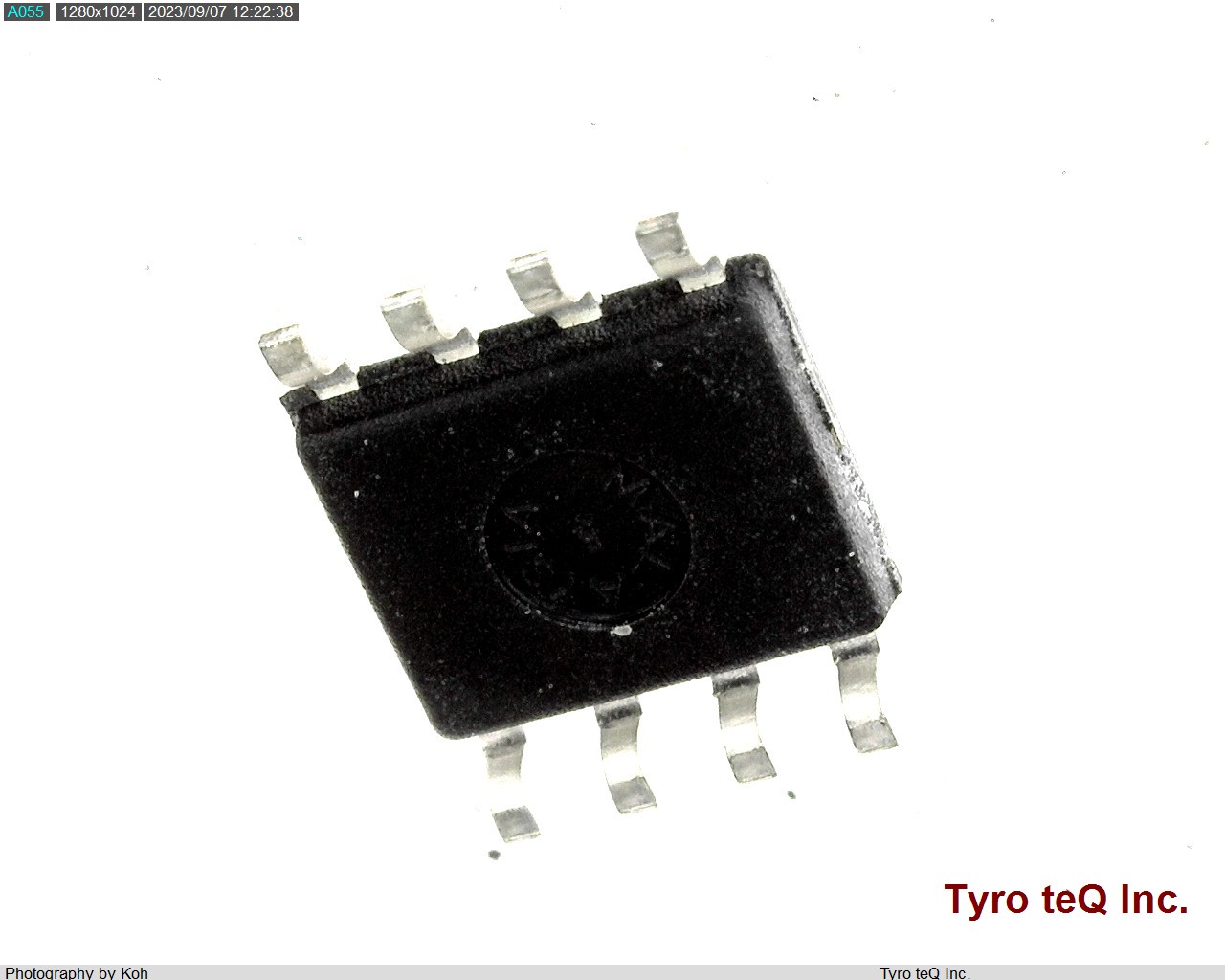

EL2245CS
1
-
- 個
２営業日以内に回答いたします
EL2245CS の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | EL2245CS |
|---|---|
| メーカー | ELANTEC |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Average Bias Current-Max (IIB) | 9.2 uA |
| Bandwidth (3dB)-Nom | 100 MHz |
| Bias Current-Max (IIB) @25C | 8.2 uA |
| Common-mode Reject Ratio-Min | 70 dB |
| Common-mode Reject Ratio-Nom | 90 dB |
| Frequency Compensation | YES (AVCL>=2) |
| Input Offset Current-Max (IIO) | 0.3 uA |
| Input Offset Voltage-Max | 6000 uV |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e0 |
| Length | 4.89 mm |
| Low-Bias | NO |
| Low-Offset | NO |
| Mfr Name | ELANTEC |
| Mfr P/N | EL2245CS |
| Micropower | NO |
| Neg Supply Voltage Limit-Max | -18 V |
| Neg Supply Voltage-Nom (Vsup) | -15 V |
| New Category | Operational Amplifiers |
| New Part Type | AMPLIFIERS |
| Number of Functions | 2 |
| Number of Terminals | 8 |
| Old Category | Audio/Video Amplifiers |
| Old Part Type | CONSUMER_ICS |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUT LINE Meter |
| Part Objectid | 1439890535 |
| Power | YES |
| Programmable Power | NO |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.68 mm |
| Slew Rate-Min | 200 V/us |
| Slew Rate-Nom | 275 V/us |
| Sub Category | Operational Amplifier |
| Supply Current-Max | 14 mA |
| Supply Voltage Limit-Max | 18 V |
| Supply Voltage-Nom (Vsup) | 15 V |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| 会社名称 | Intersil Americas LLC |
|---|---|
| 設立 | 1967 |
| 所在地 | 1001 Murphy Ranch Road Milpitas, CA 95035 USA |
| URL | http://www.intersil.com/en.html |
