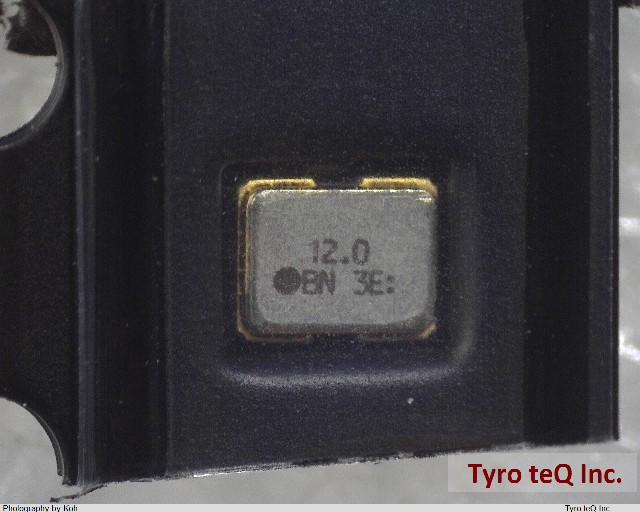

ECS-1633-120-BN-TR

Name: ECS-1633-120-BN-TR
Brand: ECS
SKU: 150188413-0000-0000-0000

ECS-1633-120-BN-TR - ECS の商品詳細ページです。

２営業日以内に回答いたします

ECS-1633-120-BN-TR の詳細情報

型番	ECS-1633-120-BN-TR
メーカー	ECS
Additional Feature	TRI-STATE; ENABLE/DISABLE FUNCTION
Fall Time-Max	5 ns
Frequency Adjustment-Mechanical	NO
Frequency Stability	50 %
Mounting Feature	SURFACE MOUNT
Number of Terminals	4
Operating Frequency-Nom	12 MHz
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Oscillator Type	CMOS
Output Load	15 pF
Physical Dimension	2.0mm x 1.6mm x 0.9mm
Rise Time-Max	5 ms
Supply Current-Max	6 mA
Supply Voltage-Max	3.465 V
Supply Voltage-Min	3.135 V
Supply Voltage-Nom	3.3 V
Symmetry-Max	45/55 %
