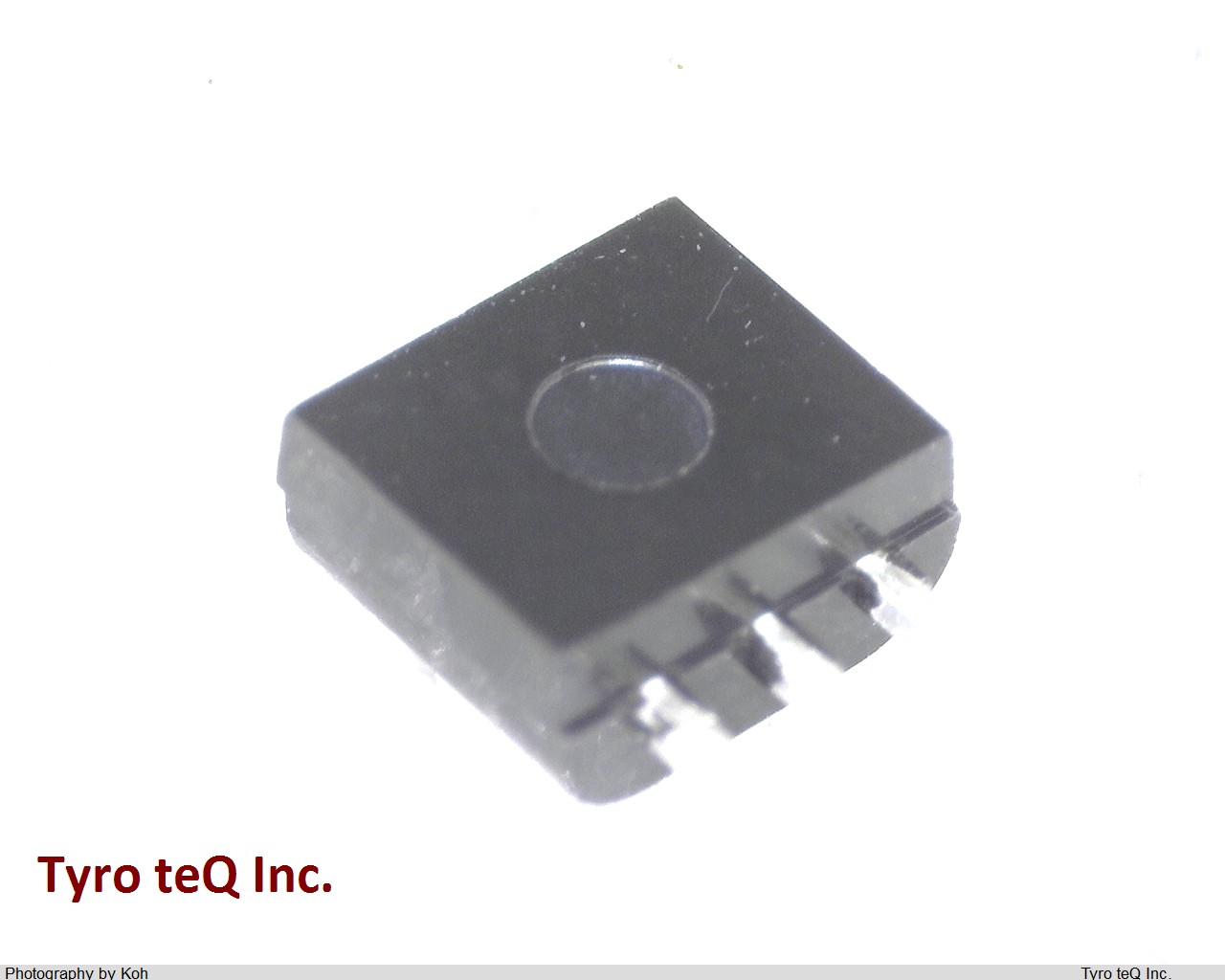

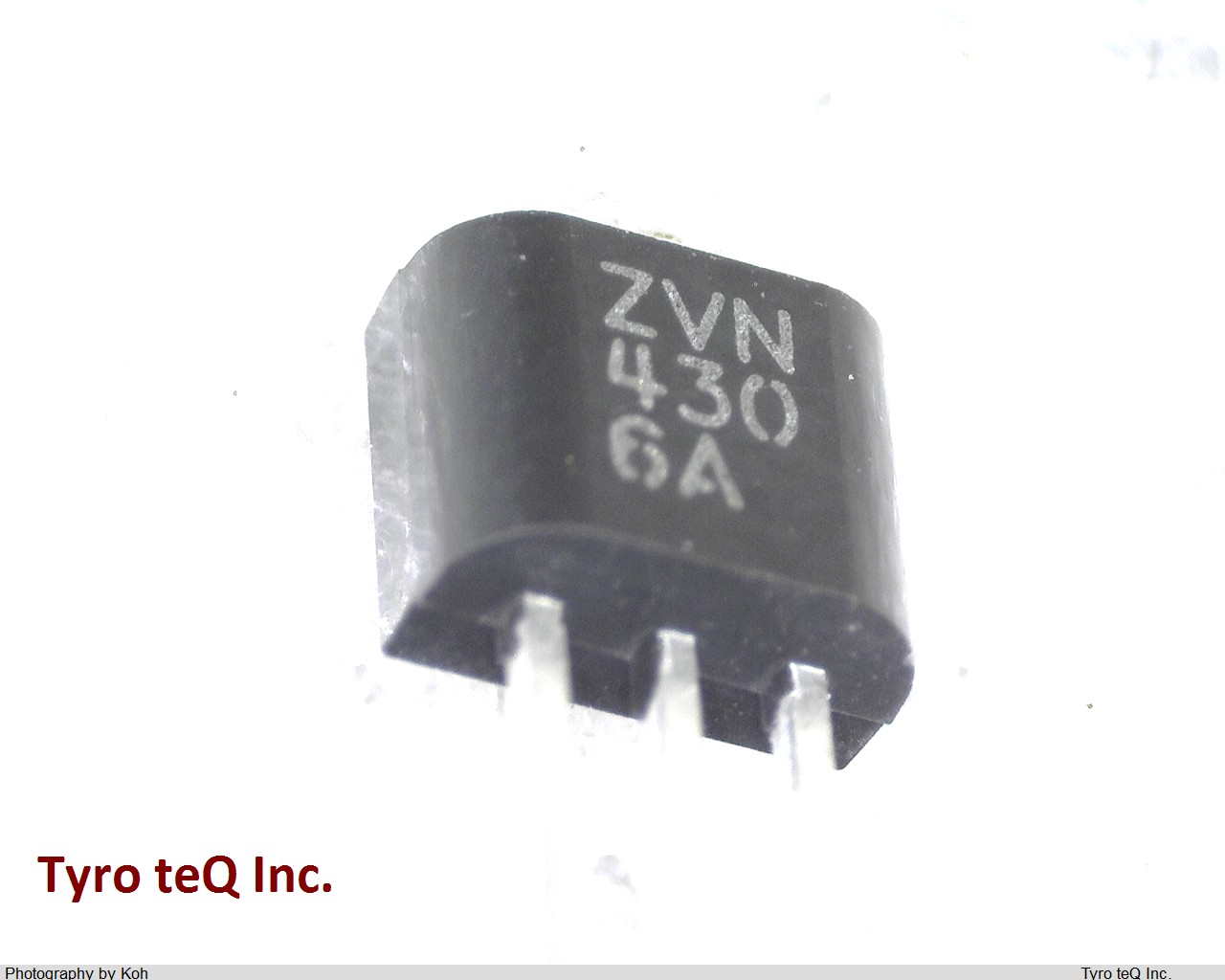

ZVN4306A

Name: ZVN4306A
Brand: DIODES
SKU: 360045997-0000-0000-0000

ZVN4306A - DIODES の商品詳細ページです。

２営業日以内に回答いたします

ZVN4306A の詳細情報

型番	ZVN4306A
メーカー	DIODES
Additional Feature	HIGH RELIABILITY
Configuration	SINGLE
DS Breakdown Voltage-Min	60 V
Drain Current-Max (Abs) (ID)	1.1 A
Drain Current-Max (ID)	1.1 A
Drain-source On Resistance-Max	0.33 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss)	30 pF
JESD-30 Code	O-PBCY-T3
JESD-609 Code	e3
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	CYLINDRICAL Meter
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	1.13 W
Qualification Status	Not Qualified
Reference Standard	AEC-Q101
Sub Category	FET General Purpose Power
Surface Mount	NO
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	10
Transistor Application	SWITCHING
Transistor Element Material	SILICON
