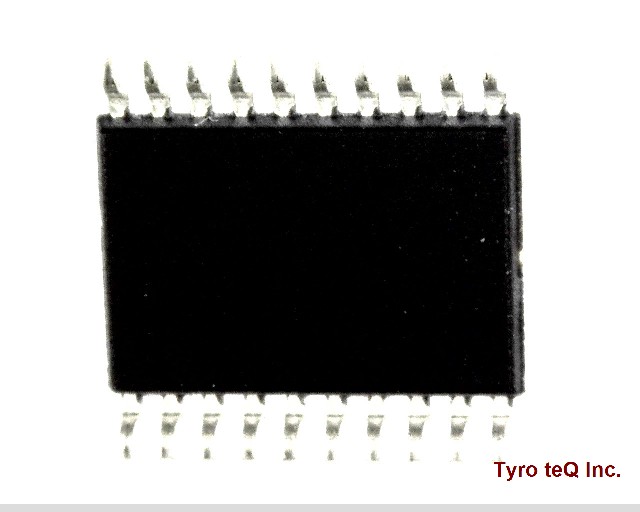

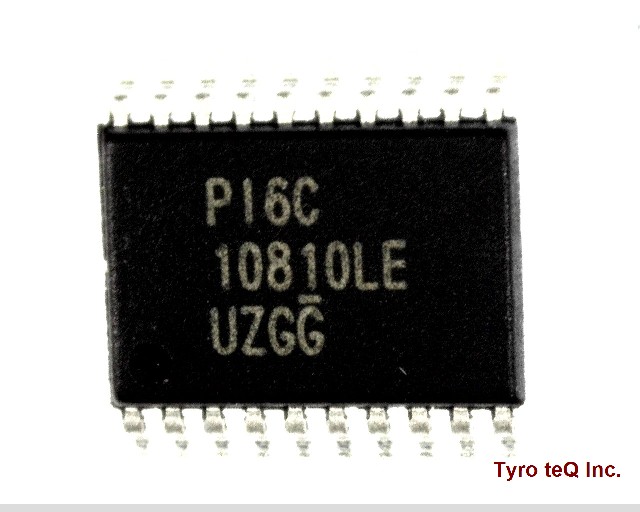

PI6C10810LE

Name: PI6C10810LE
Brand: DIODES
SKU: 400068329-0000-0000-0000

PI6C10810LE - DIODES の商品詳細ページです。

２営業日以内に回答いたします

PI6C10810LE の詳細情報

型番	PI6C10810LE
メーカー	DIODES
Additional Feature	IT ALSO OPERATES AT 1.5V, 1.8V AND 2.5V SUPPLY
DLA Qualification	Not Qualified
Family	6C
Input Conditioning	STANDARD
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G20
Length (mm)	6.5
Logic IC Type	CLOCK DRIVER
Moisture Sensitivity Level	1
Number of Functions	1
Number of Inverted Outputs	0
Number of Terminals	20
Number of True Outputs	10
Operating Temperature-Max (Cel)	85
Operating Temperature-Min (Cel)	-40
Output Low Current-Max (mA)	8
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP20,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies (V)	1.2/2.5
Propagation Delay (ns)	6
Propagation Delay-Max@Nom-Sup (ns)	6
Same Edge Clock Skew Delay-Max (ns)	0.3
Seated Height-Max (mm)	1.2
Sub Category	Clock Drivers
Supply Voltage-Max (V)	1.3
Supply Voltage-Min (V)	1.1
Supply Voltage-Nom (V)	1.2
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch (mm)	0.65
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Width (mm)	4.4
