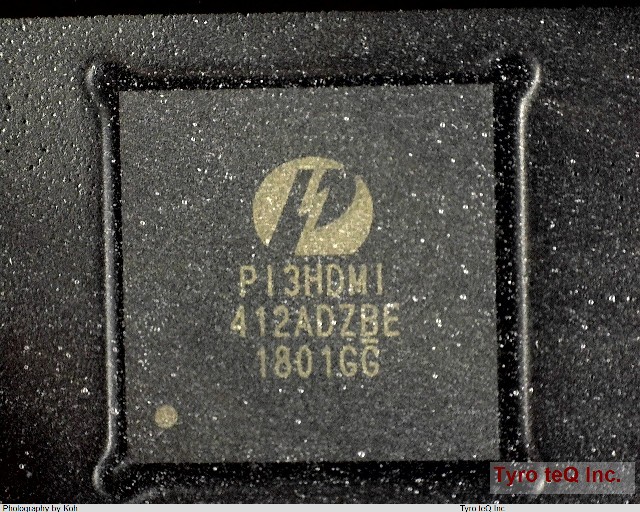

PI3HDMI412ADZBEX

Name: PI3HDMI412ADZBEX
Brand: DIODES
SKU: 400068321-0000-0000-0000

PI3HDMI412ADZBEX - DIODES の商品詳細ページです。

２営業日以内に回答いたします

PI3HDMI412ADZBEX の詳細情報

型番	PI3HDMI412ADZBEX
メーカー	DIODES
Family	3HDMI
JESD-30 Code	S-XQCC-N56
JESD-609 Code	e4
Length	8 mm
Logic IC Type	MULTIPLEXER AND DEMUX/DECODER
Moisture Sensitivity Level	2
Number of Functions	1
Number of Inputs	1
Number of Outputs	2
Number of Terminals	56
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	TRUE
Package Body Material	UNSPECIFIED
Package Code	HVQCCN
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Qualification Status	Not Qualified
Seated Height-Max	0.84 mm
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Width	8 mm

会社名称	Diodes Incorporated
所在地	4949 Hedgcoxe Road, Suite 200 Plano, TX 75024 United States
URL	http://www.diodes.com/
