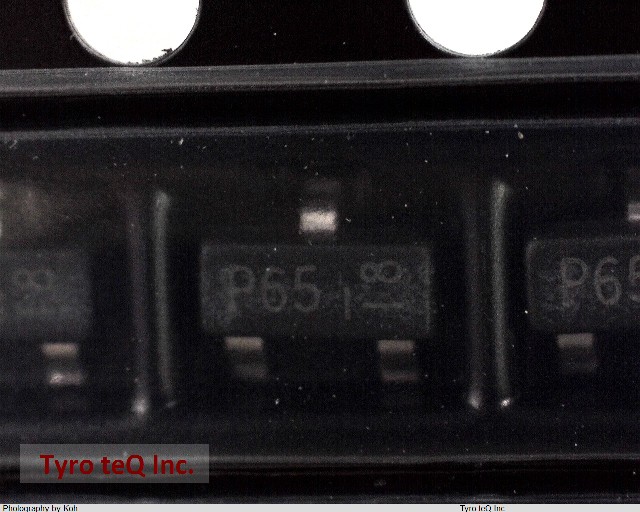

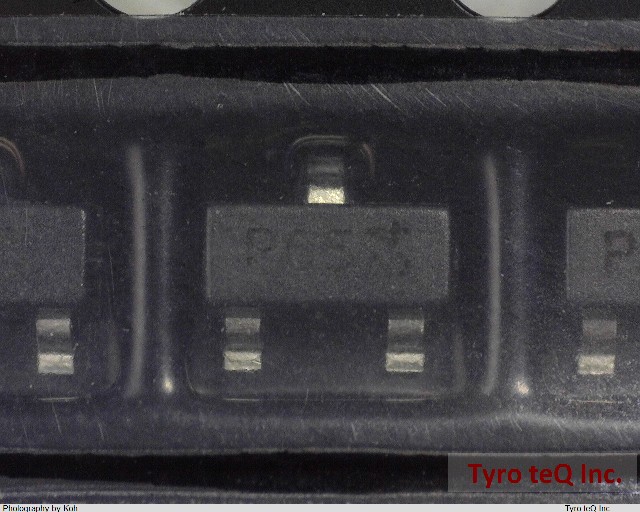

DMP4065S-7
1
-
- 個
２営業日以内に回答いたします
DMP4065S-7 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | DMP4065S-7 |
|---|---|
| メーカー | DIODES |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| DS Breakdown Voltage-Min | 40 V |
| Drain Current-Max (ID) | 2.4 A |
| Drain-source On Resistance-Max | 0.08 ohm |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| Feedback Cap-Max (Crss) | 40 pF |
| JESD-30 Code | R-PDSO-G3 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Mode | ENHANCEMENT MODE |
| Operating Temperature-Max | 150 Cel |
| Operating Temperature-Min | -55 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity/Channel Type | P-CHANNEL |
| Power Dissipation-Max (Abs) | 1.4 W |
| Pulsed Drain Current-Max (IDM) | 20 A |
| Surface Mount | YES |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
| 会社名称 | Diodes Incorporated |
|---|---|
| 所在地 | 4949 Hedgcoxe Road, Suite 200 Plano, TX 75024 United States |
| URL | http://www.diodes.com/ |
