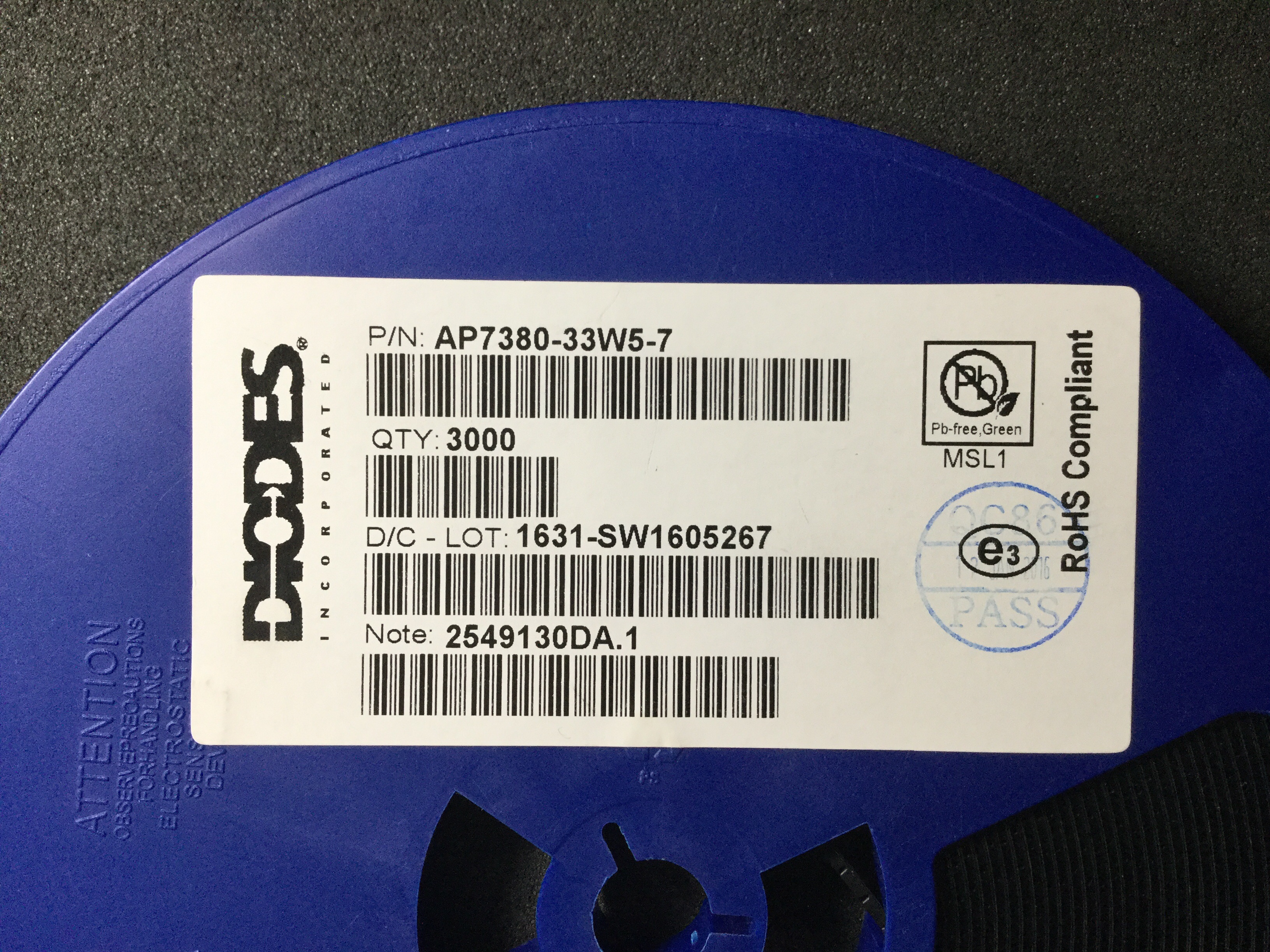

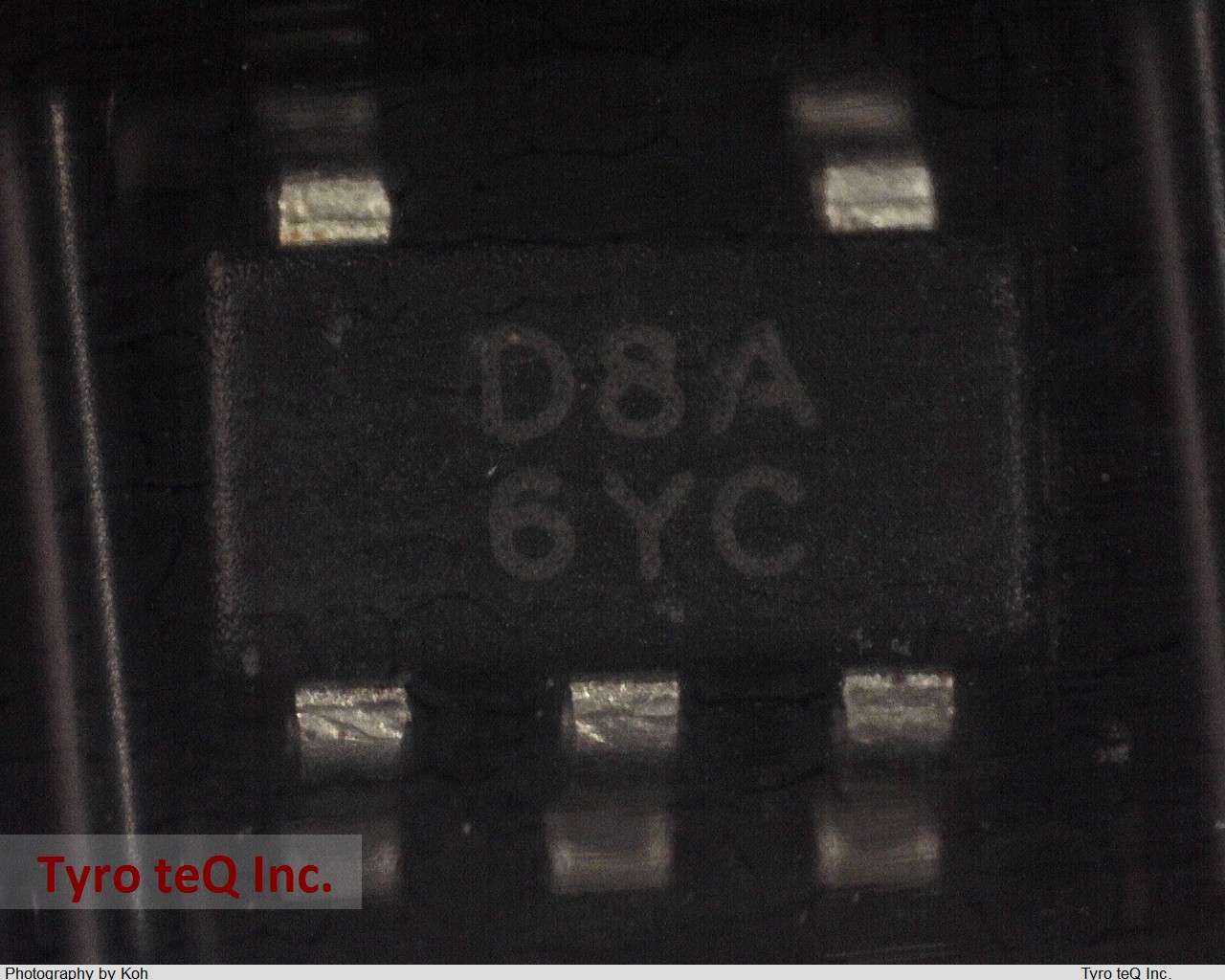

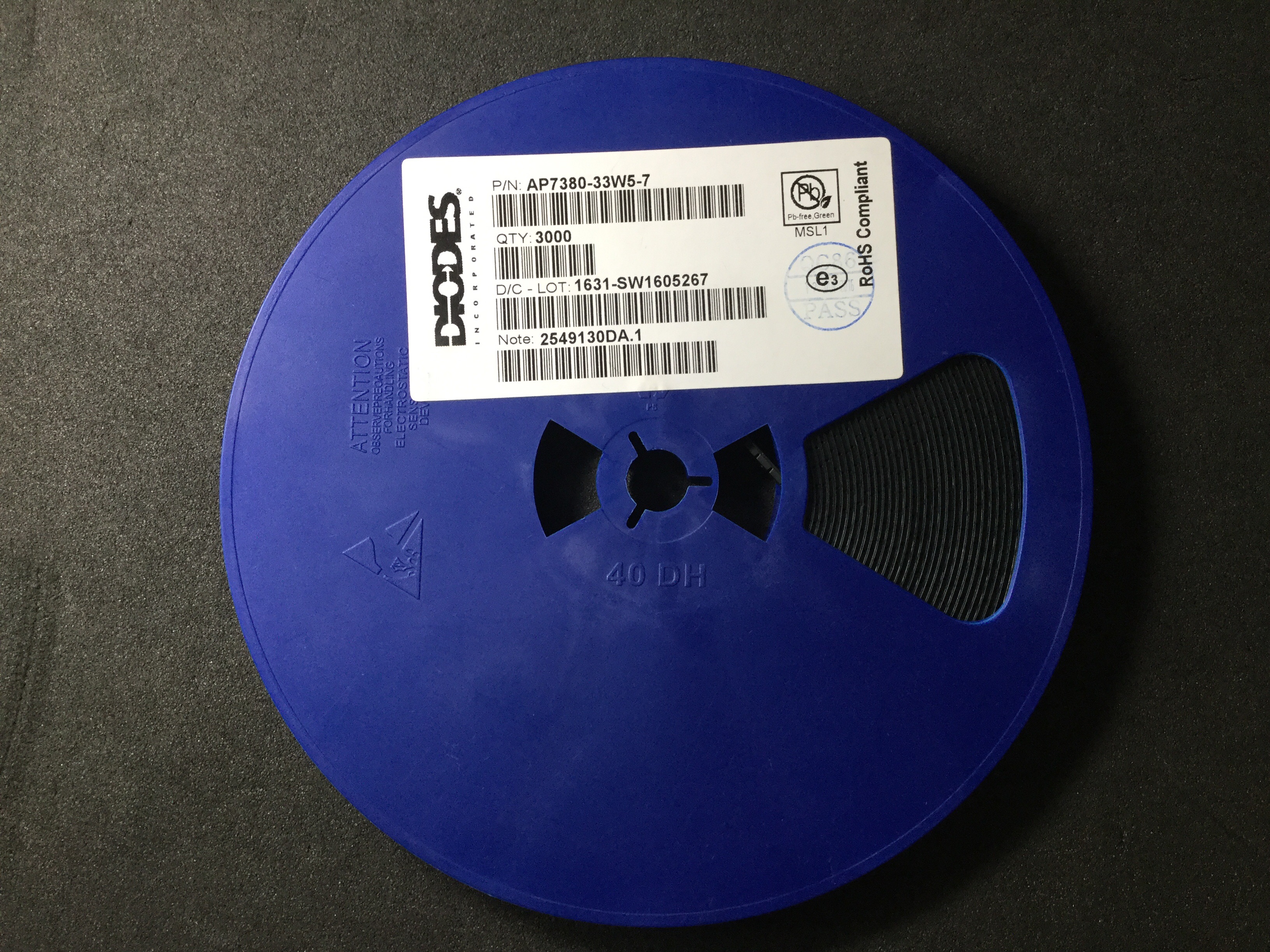

AP7380-33W5-7

Name: AP7380-33W5-7
Brand: DIODES
SKU: 110268711-0000-0000-0000

AP7380-33W5-7 - DIODES の商品詳細ページです。

２営業日以内に回答いたします

AP7380-33W5-7 の詳細情報

型番	AP7380-33W5-7
メーカー	DIODES
Adjustability	FIXED
Dropout Voltage1-Max	1.5 V
Dropout Voltage1-Nom	1.05 V
Input Voltage Absolute-Max	30 V
Input Voltage-Max	24 V
Input Voltage-Min	3.5 V
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e3
Length	3 mm
Number of Functions	1
Number of Outputs	1
Number of Terminals	5
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Output Current1-Max	0.15 A
Output Voltage1-Max	3.333 V
Output Voltage1-Min	3.267 V
Output Voltage1-Nom	3.3 V
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSOP5/6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	1.4 mm
Surface Mount	YES
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Voltage Tolerance-Max	1 %
Width	1.6 mm
