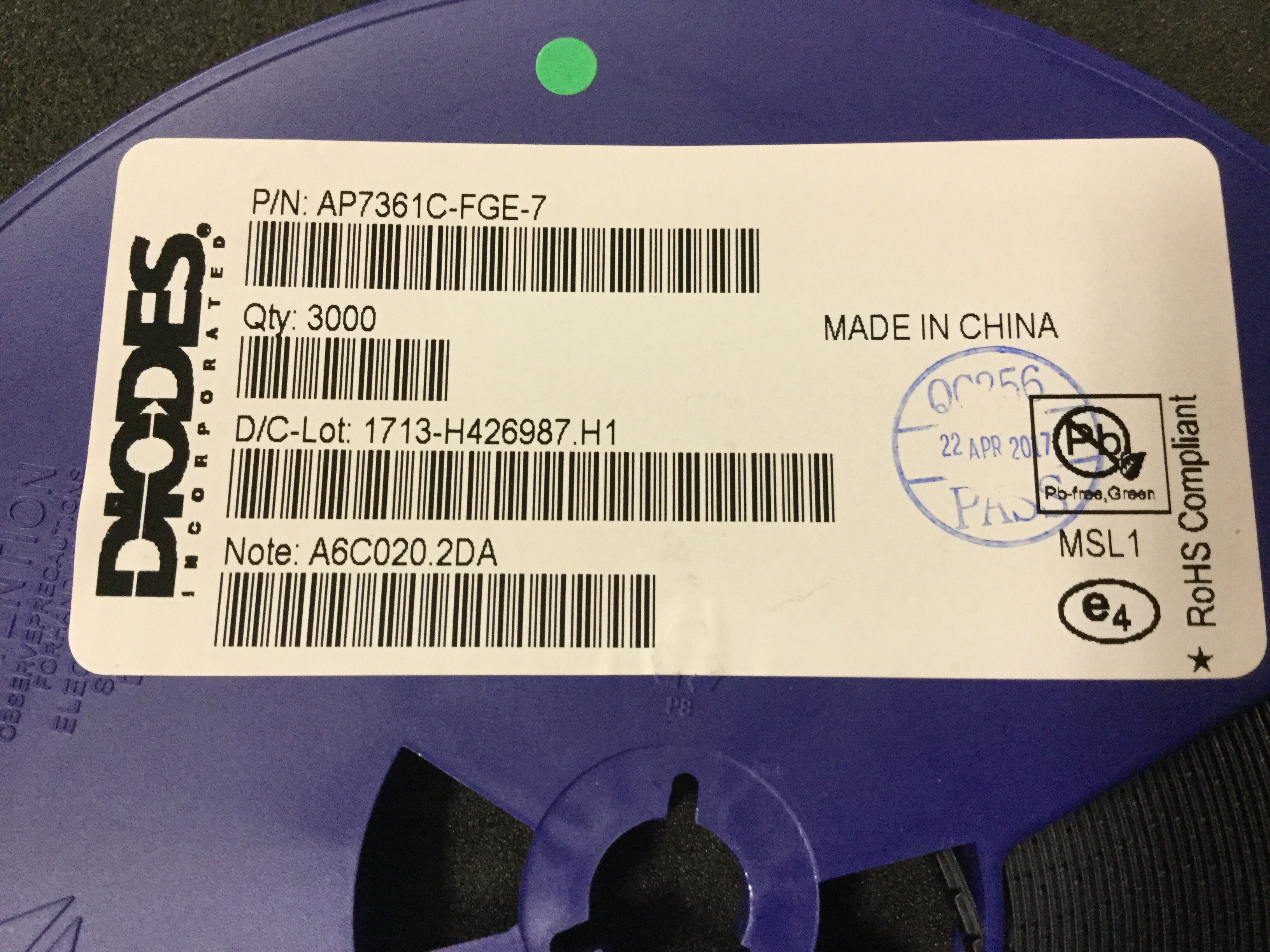

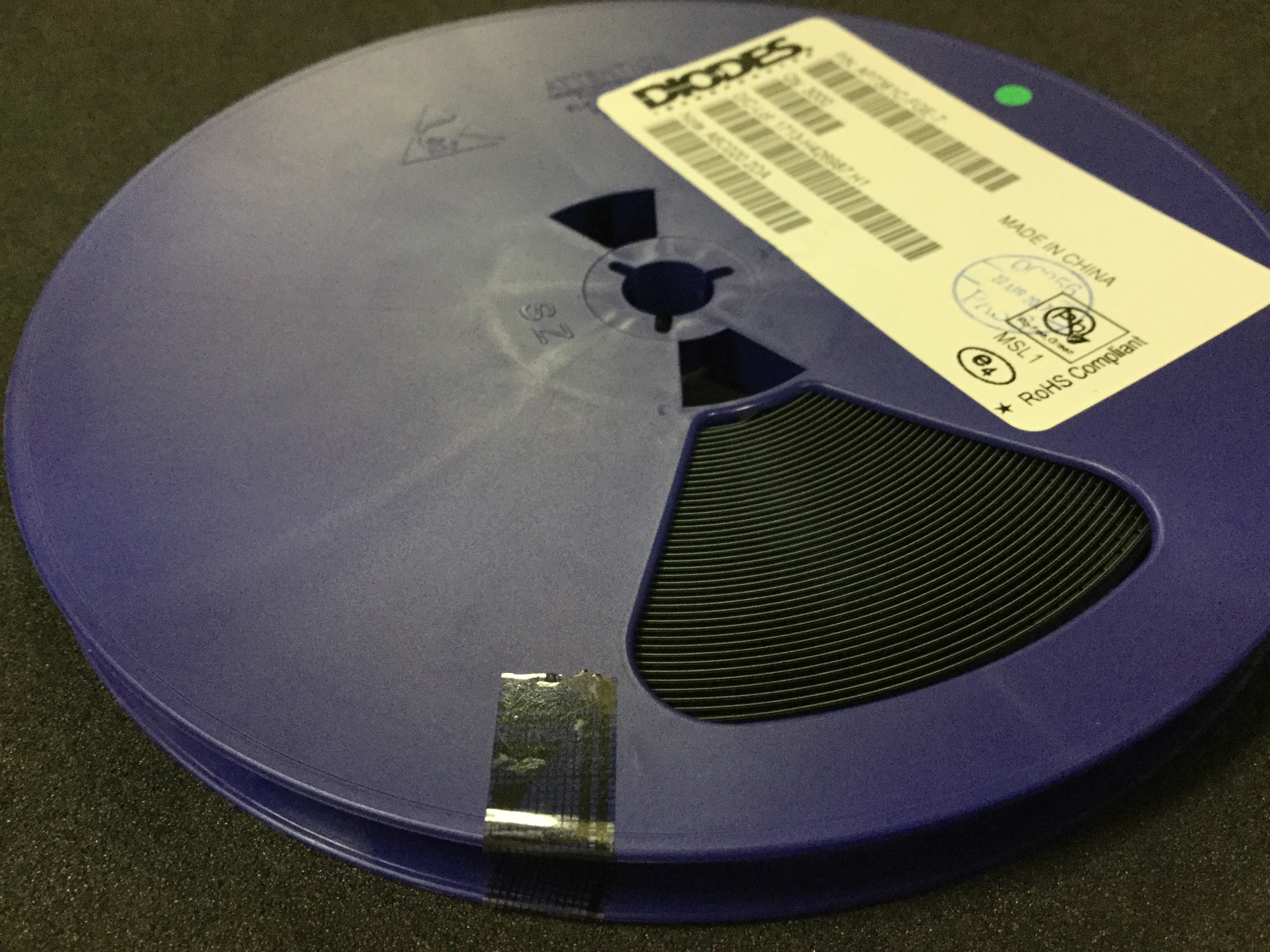

AP7361C-FGE-7

Name: AP7361C-FGE-7
Brand: DIODES
SKU: 110264824-0000-0000-0000

AP7361C-FGE-7 - DIODES の商品詳細ページです。

２営業日以内に回答いたします

AP7361C-FGE-7 の詳細情報

型番	AP7361C-FGE-7
メーカー	DIODES
Adjustability	ADJUSTABLE
JESD-30 Code	S-PDSO-N8
JESD-609 Code	e4
Length	3 mm
Line Regulation-Max (%/V)	0.2
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature, TJ-Max	150 Cel
Operating Temperature, TJ-Min	-40 Cel
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current1-Max	1 A
Output Voltage1-Max	5 V
Output Voltage1-Min	0.8 V
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Equivalence Code	SOLCC8,.12,25
Package Shape	SQUARE
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Packing Method	TR, 7 INCH
Peak Reflow Temperature (Cel)	260
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	0.63 mm
Surface Mount	YES
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	NO LEAD
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Width	3 mm
