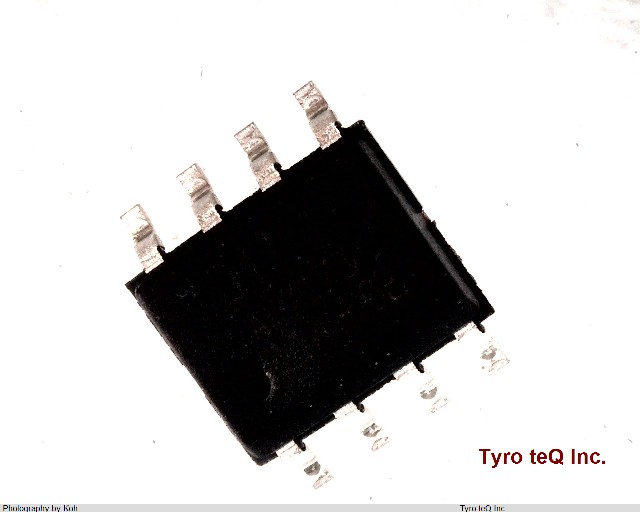

AP7173-SPG-13

Name: AP7173-SPG-13
Brand: DIODES
SKU: 400039779-0000-0000-0000

AP7173-SPG-13 - DIODES の商品詳細ページです。

２営業日以内に回答いたします

AP7173-SPG-13 の詳細情報

型番	AP7173-SPG-13
メーカー	DIODES
Adjustability	ADJUSTABLE
Dropout Voltage1-Max	0.27 V
Dropout Voltage1-Nom	1.5 V
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature, TJ-Max	150 Cel
Operating Temperature, TJ-Min	-40 Cel
Output Current1-Max	1.5 A
Output Voltage1-Max	3.3 V
Output Voltage1-Min	0.8 V
Package Body Material	PLASTIC/EPOXY
Package Code	HSOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	1.75 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	NMOS
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.9 mm
