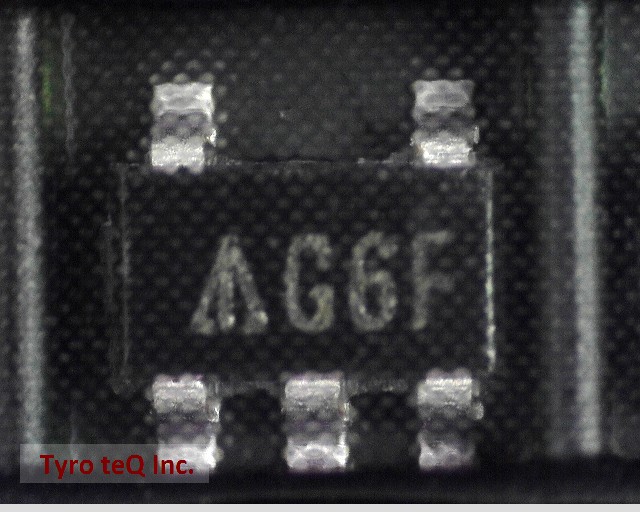

AP3015AKTR-G1
1
-
- 個
２営業日以内に回答いたします
AP3015AKTR-G1 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | AP3015AKTR-G1 |
|---|---|
| メーカー | DIODES |
| Additional Feature | ALSO HAS A COFF CONTROL TECHNIQUE; HIGH OUTPUT VOLTAGE UP TO 34V |
| Analog IC - Other Type | SWITCHING REGULATOR |
| Control Mode | VOLTAGE-MODE |
| Control Technique | PULSE FREQUENCY MODULATION |
| Input Voltage-Max | 12 V |
| Input Voltage-Min | 1 V |
| Input Voltage-Nom | 1.2 V |
| JESD-30 Code | R-PDSO-G5 |
| JESD-609 Code | e3 |
| Length | 2.92 mm |
| Moisture Sensitivity Level | 3 |
| Number of Functions | 1 |
| Number of Terminals | 5 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Output Current-Max | 0.125 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | LSSOP |
| Package Equivalence Code | TSOP5/6,.11,37 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.45 mm |
| Sub Category | Switching Regulator or Controllers |
| Surface Mount | YES |
| Switcher Configuration | BOOST |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.95 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 1.6 mm |
| 会社名称 | Diodes Incorporated |
|---|---|
| 所在地 | 4949 Hedgcoxe Road, Suite 200 Plano, TX 75024 United States |
| URL | http://www.diodes.com/ |
