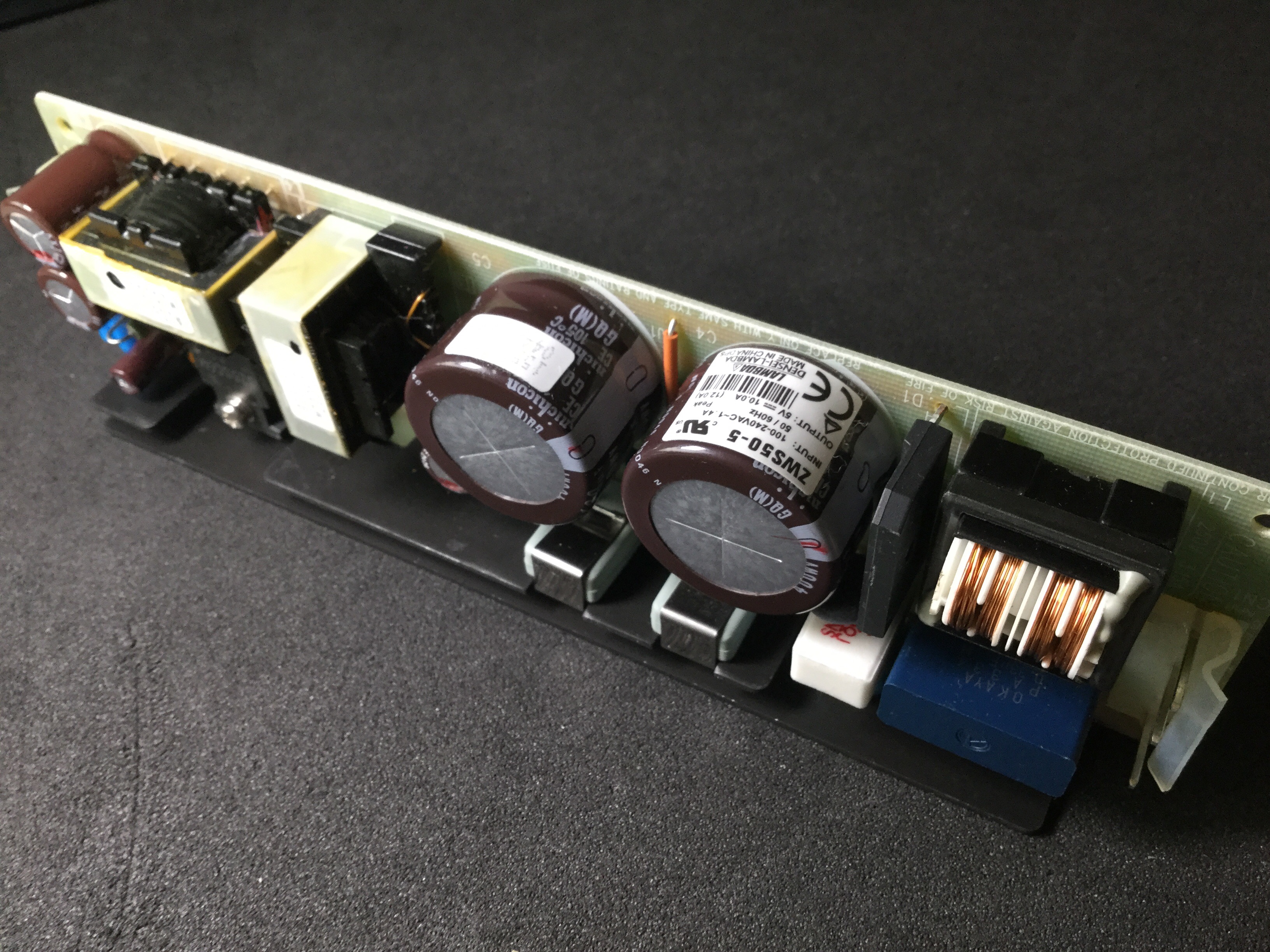

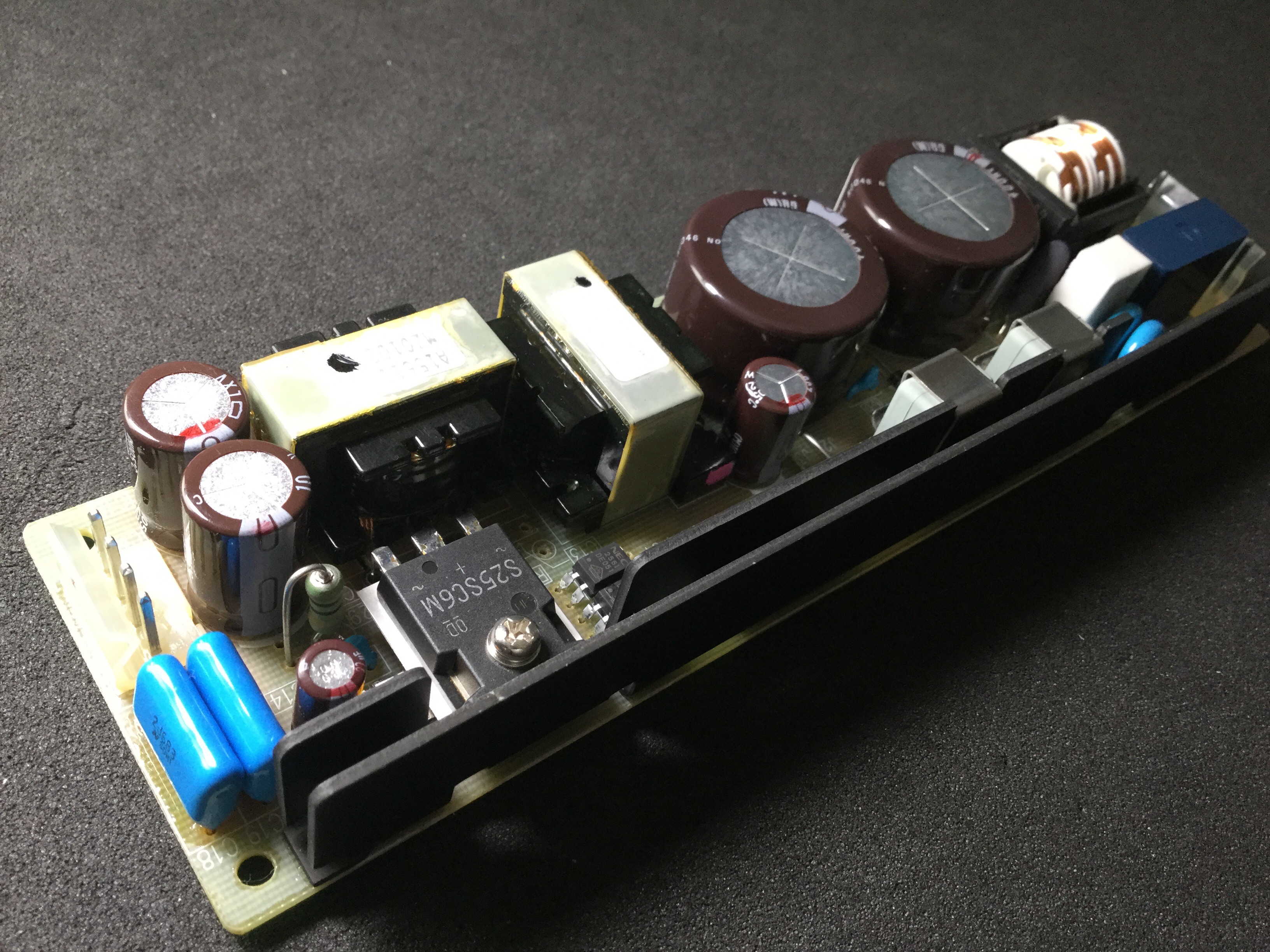

ZWS50-5

Name: ZWS50-5
Brand: DENSEILAMBDA
SKU: 360045851-0000-0000-0000

ZWS50-5 - DENSEILAMBDA の商品詳細ページです。

２営業日以内に回答いたします

ZWS50-5 の詳細情報

型番	ZWS50-5
メーカー	DENSEILAMBDA
Analog IC - Other Type	AC-DC POWER FACTOR CORRECTION MODULE
Approvals	CE, CSA, EN, UL V
Efficiency (Main Output)	77 %
Height	25.9 mm
Input Voltage-Max	265 V
Input Voltage-Min	85 V
JESD-30 Code	R-XXMA-X
JESD-609 Code	e0
Length	195 mm
Load Regulation-Max	0.8 %
Number of Functions	1
Number of Outputs	1
Operating Temperature-Max	60 Cel
Operating Temperature-Min	-10 Cel
Output Current-Max	10 A
Output Voltage-Max	5.5 V
Output Voltage-Min	4.5 V
Output Voltage-Nom	5 V
Package Body Material	UNSPECIFIED
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Protection(s)	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE V
Qualification Status	Not Qualified
Sub Category	Power Supply Modules
Surface Mount	NO
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	UNSPECIFIED
Terminal Position	UNSPECIFIED
Total Power Output-Max	50 W
Trim/Adjustable Output	NO V
Width	55.1 mm
