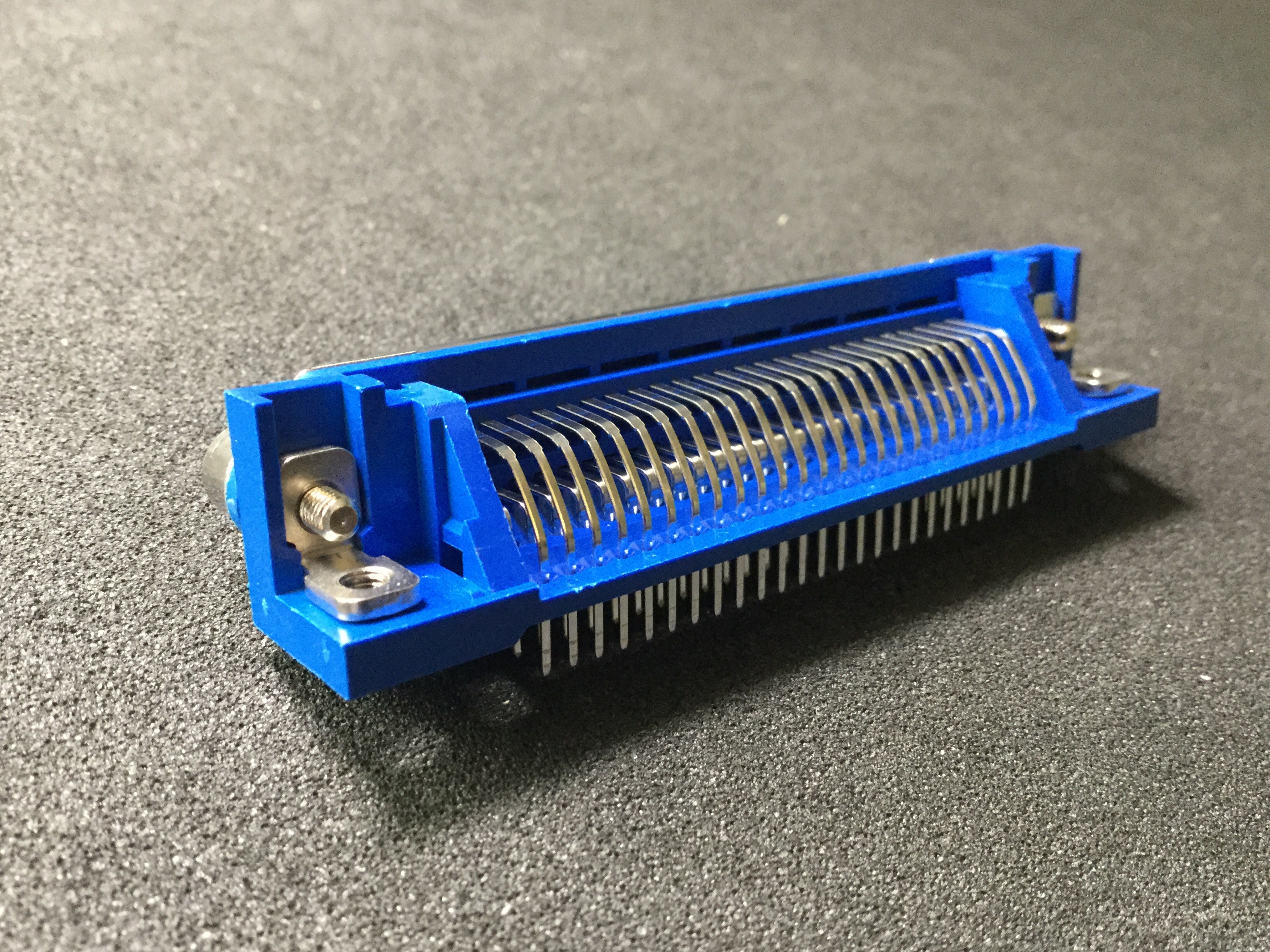

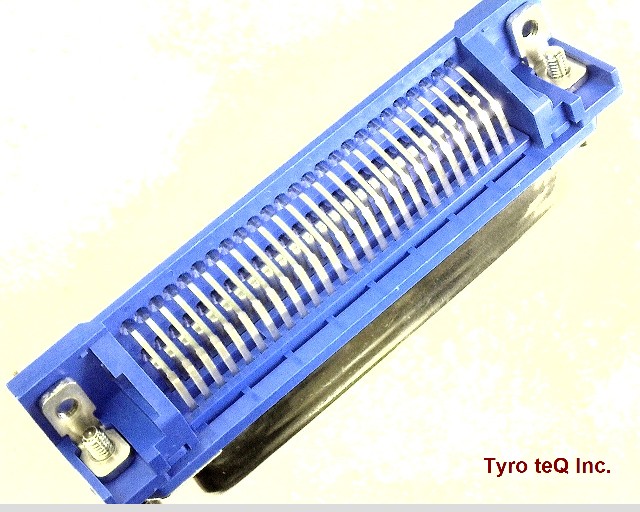

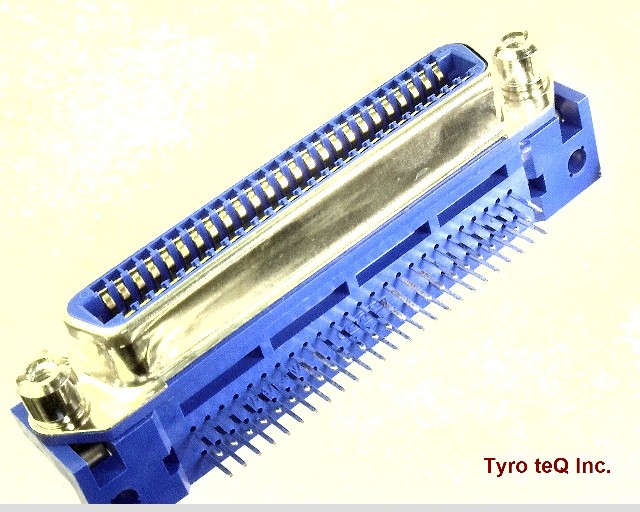

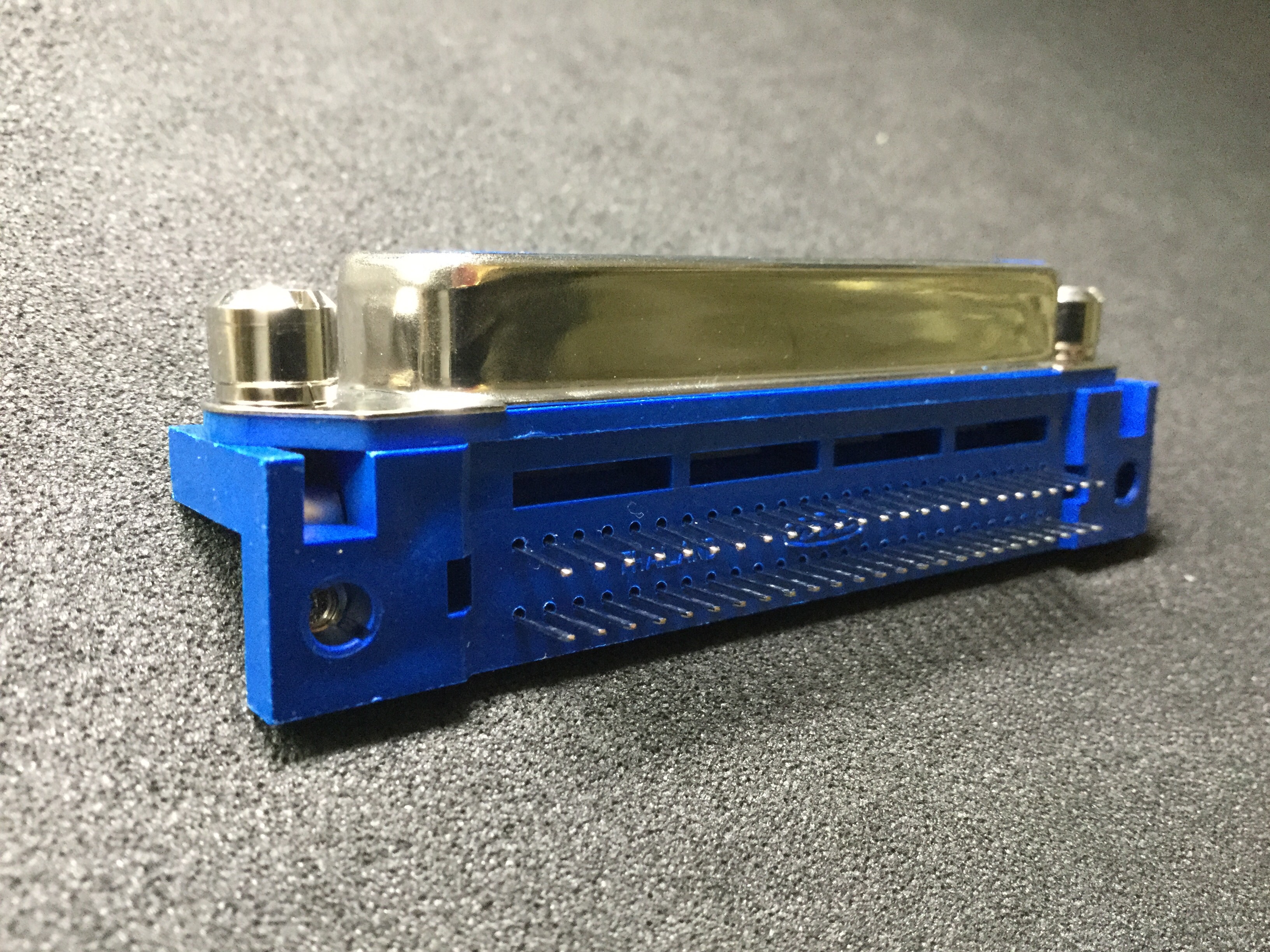

57LE-20500-7700D35G データシート

Name: 57LE-20500-7700D35G
Brand: DDK
SKU: 60167276-0000-0000-0000

57LE-20500-7700D35G - DDK の商品詳細ページです。

２営業日以内に回答いたします

57LE-20500-7700D35G の詳細情報

型番	57LE-20500-7700D35G
メーカー	DDK
データシート
Additional Feature	LESS COVER
Body Breadth	0.617 inch
Body Depth	0.63 inch
Body Length	3.262 inch
Body/Shell Style	PLUG
Contact Finish - Mating	AU ON NI
Contact Finish - Termination	TIN OVER NICKEL
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	35 mohm
Contact Style	BELLOWED TYPE
Dielectric Withstanding Voltage	1200VAC V
Insulation Resistance	1000000000 ohm
Insulator Color	BLUE
Insulator Material	POLYBUTYLENE TEREPHTHALATE
Mating Contact Pitch	0.085 inch
Mounting Option 1	M3.5
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of PCB Rows	2
Number of Rows Loaded	2
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	4.2926 mm
Plating Thickness	15u inch
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	BRASS
Sub Category	D Type Connectors
Terminal Length	0.187 inch
Terminal Pitch	2.159 mm
Termination Type	SOLDER
Total Number of Contacts	50
