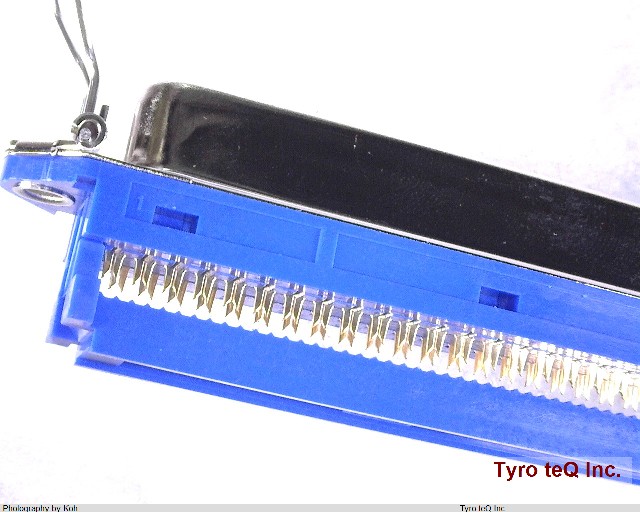

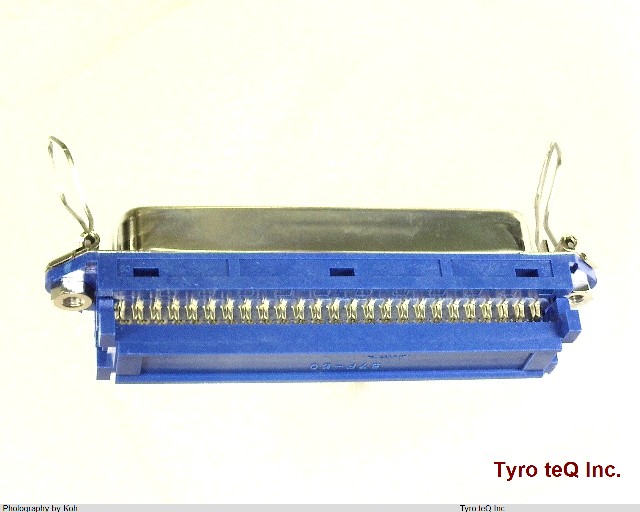

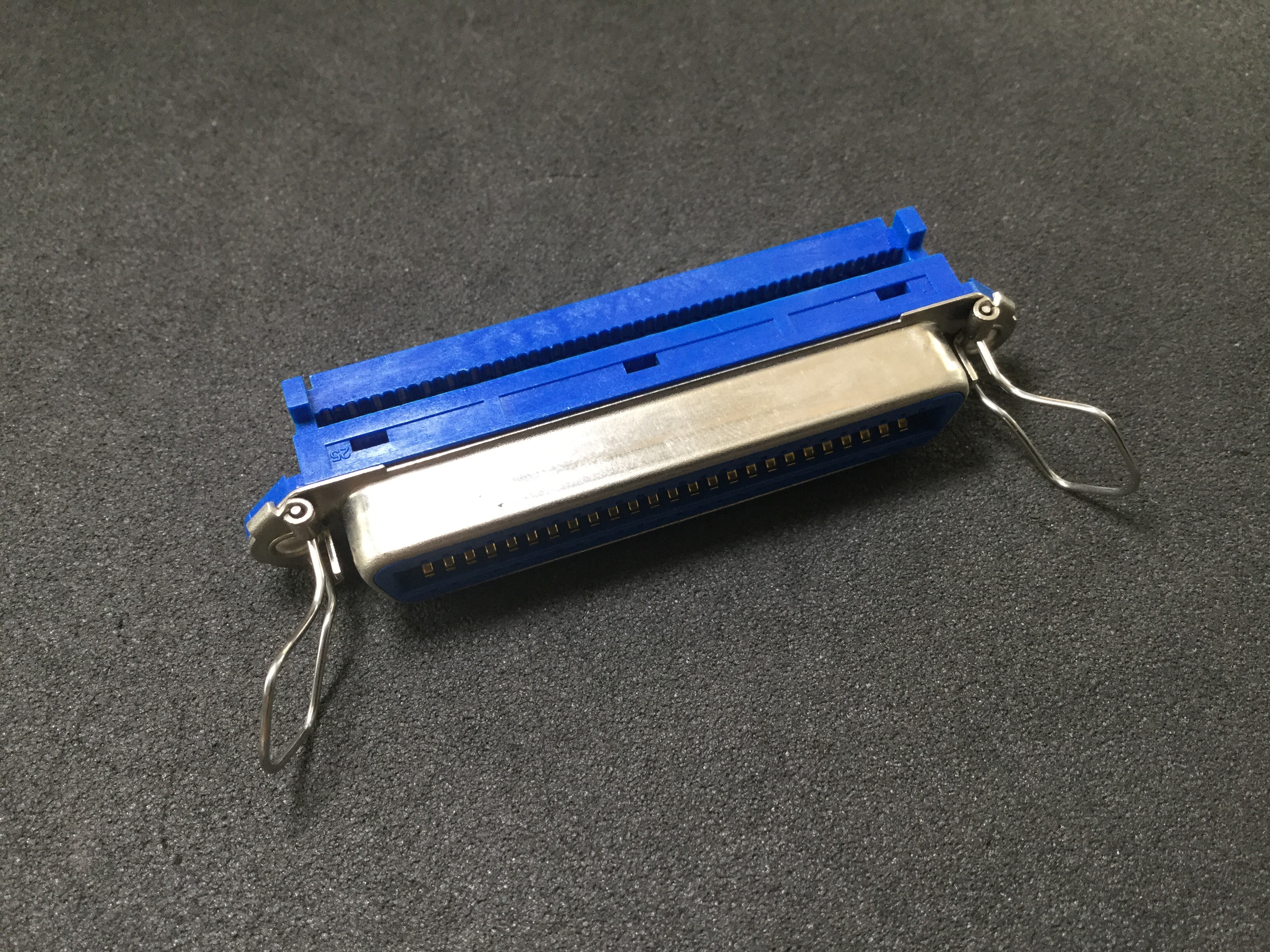

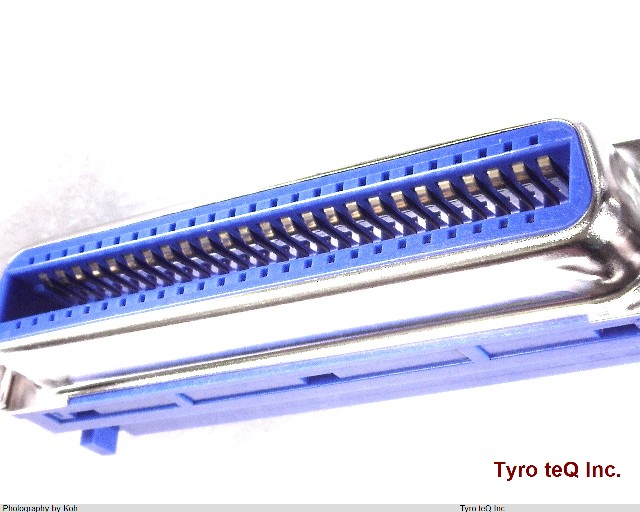

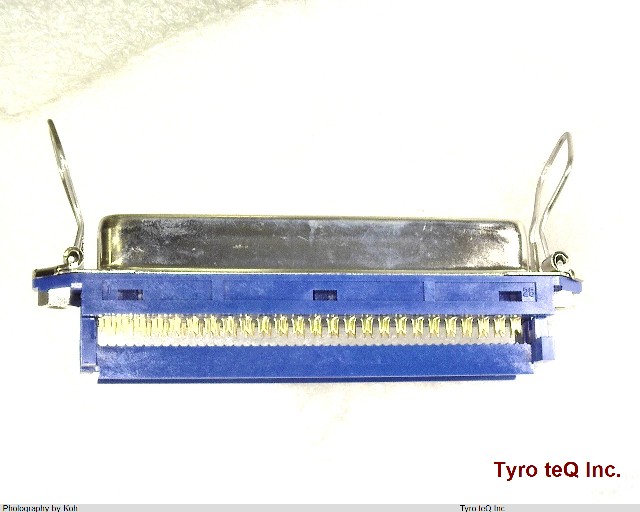

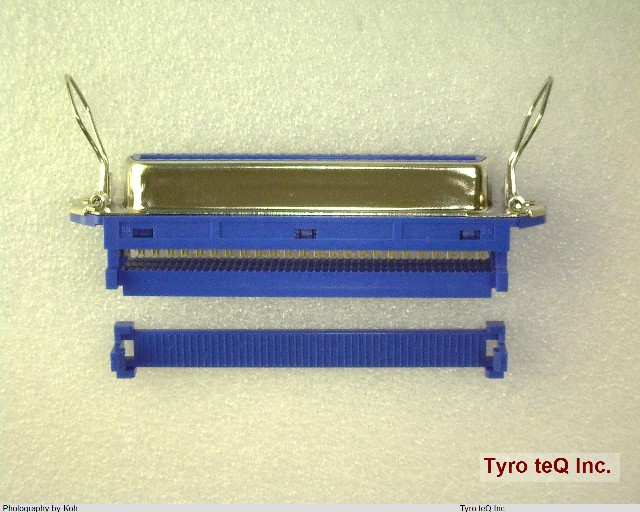

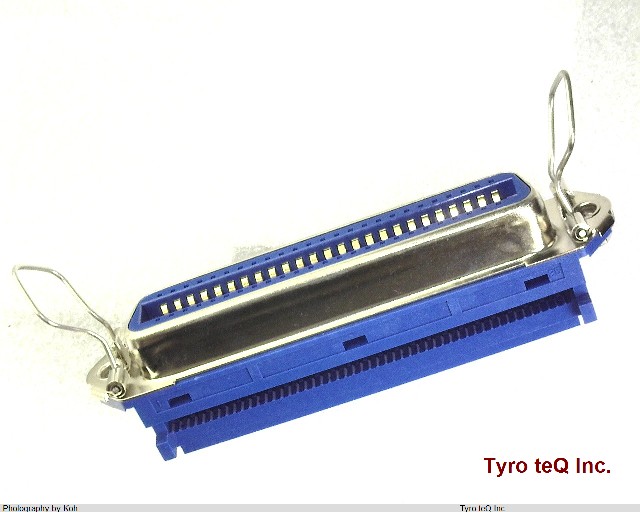

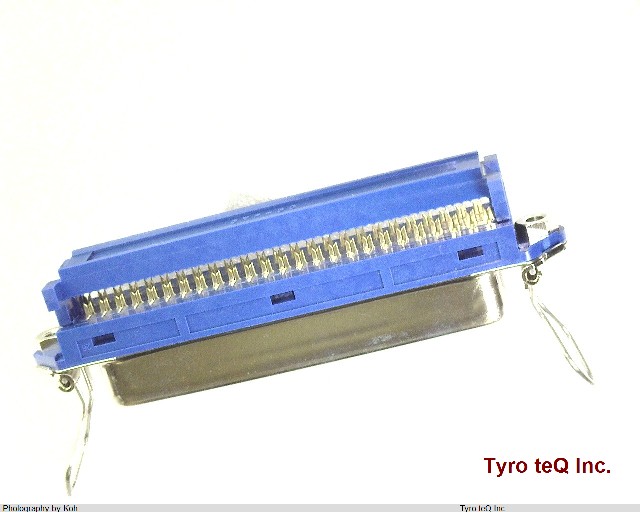

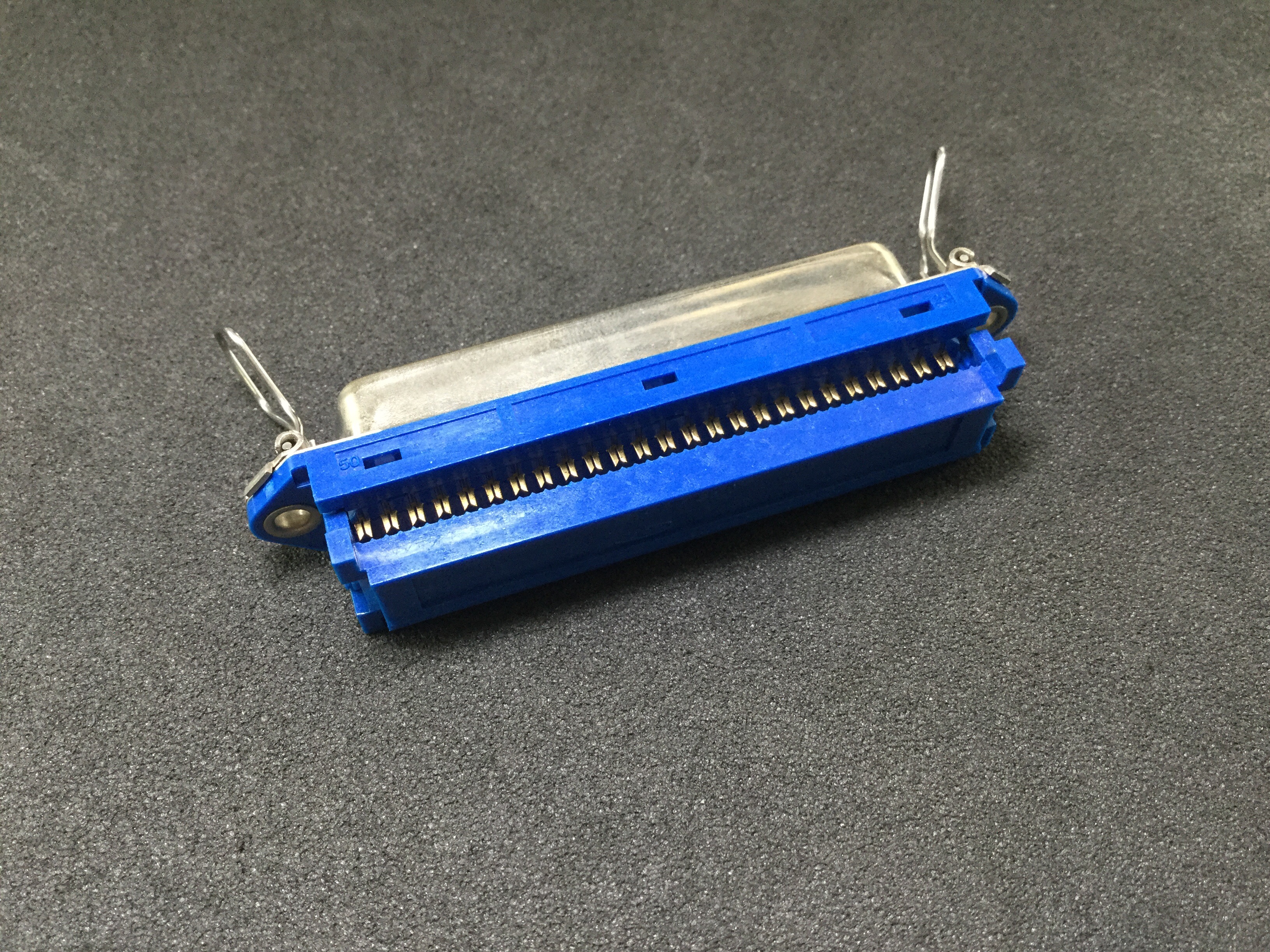

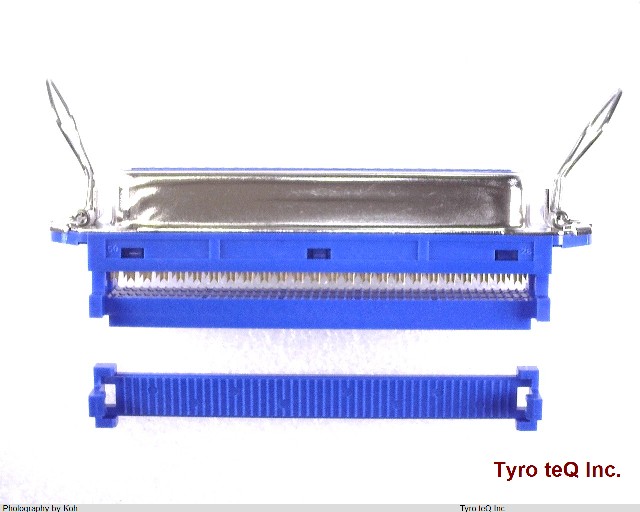

57FE-40500-20S データシート

Name: 57FE-40500-20S
Brand: DDK
SKU: 60000061-0000-0000-0000

57FE-40500-20S - DDK の商品詳細ページです。

２営業日以内に回答いたします

57FE-40500-20S の詳細情報

型番	57FE-40500-20S
メーカー	DDK
データシート
Additional Feature	OPEN COVER, PLAST STRN RELIEF
Body Breadth	0.594 inch
Body Depth	0.279 inch
Body Length	3.021 inch
Body/Shell Style	PLUG
Contact Design	PREASSEM CONN
Contact Finish - Mating	AU ON NI
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	35 mohm
Contact Style	BELLOWED TYPE
Dielectric Withstanding Voltage	500VAC V
Insulation Resistance	1000000000 ohm
Insulator Color	BLUE
Insulator Material	POLYCARBONATE
Mating Contact Pitch	0.085 inch
Mounting Option 1	#4-40
Mounting Option 2	CLINCH NUT
Mounting Type	CABLE
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Plating Thickness	15u inch
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	COPPER ALLOY
Sub Category	D Type Connectors
Termination Type	IDC
Total Number of Contacts	50
Wire Size-Max	26 AWG
Wire Size-Min	30 AWG
