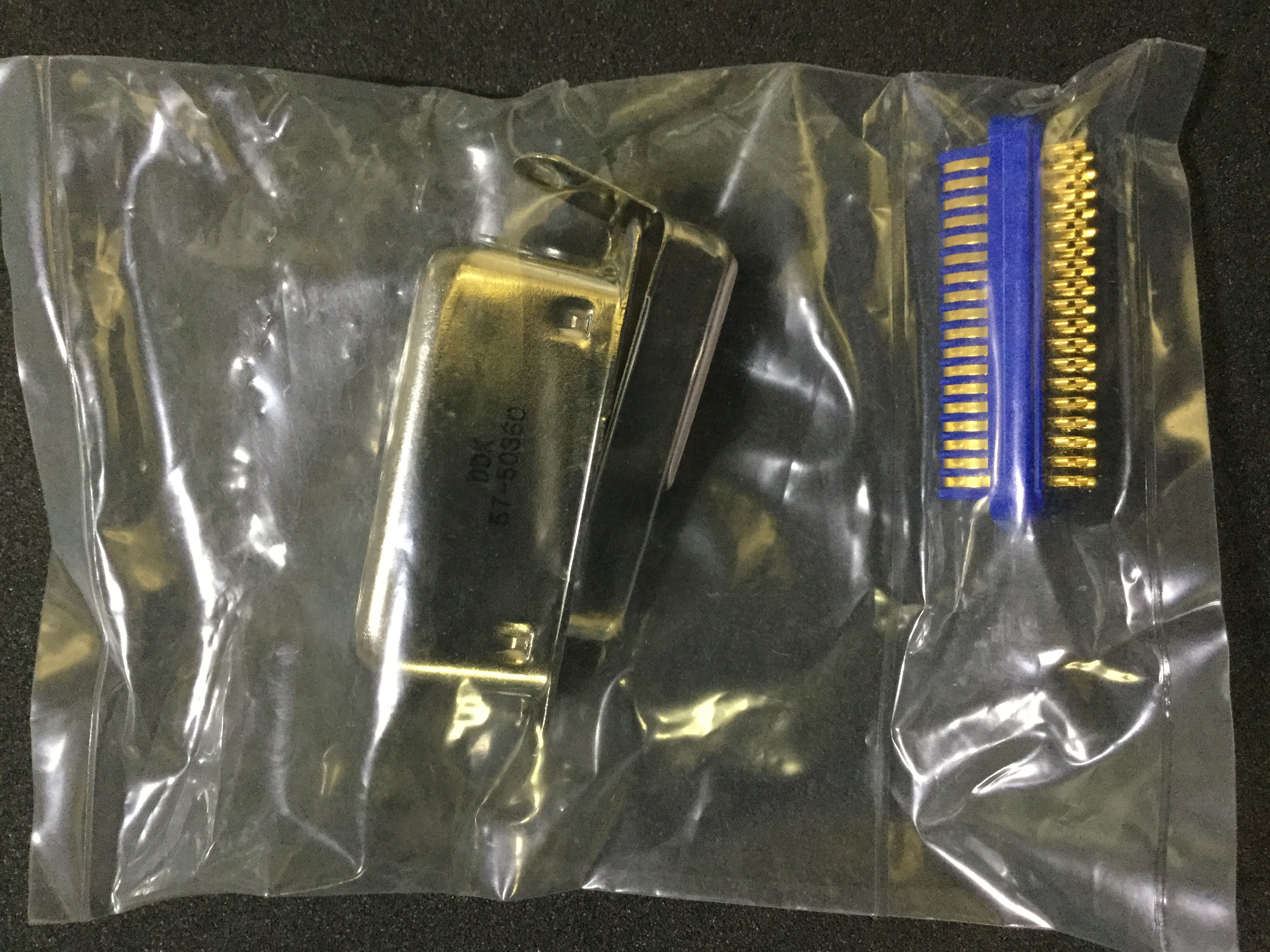

57-50360 データシート

Name: 57-50360
Brand: DDK
SKU: 60094034-0000-0000-0000

57-50360 - DDK の商品詳細ページです。

２営業日以内に回答いたします

57-50360 の詳細情報

型番	57-50360
メーカー	DDK
データシート
Additional Feature	AMPLIMITE
Body Breadth	1.035 inch
Body Depth	0.906 inch
Body Length	2.352 inch
Body/Shell Style	PLUG
Connector Type	D SUBMINIATURE CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	AU
Contact Finish - Termination	GOLD
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Dielectric Withstanding Voltage	700VDC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Material	DIALLYL PHTHALATE
JESD-609 Code	e3
MIL Conformance	NO
Manufacturer Series	5750360
Mating Contact Pitch	0.085 inch
Mating Contact Row Spacing	0.1 inch
Mixed Contacts	NO
Mounting Option 1	BAIL MT F
Mounting Type	BOARD
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Plating Thickness	20u inch
Rated Current (Signal)	5 A
Reference Standard	CSA, UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	BRASS
Shell Size	1/E
Sub Category	D Type Connectors
Termination Type	SOLDER
Total Number of Contacts	15
UL Flammability Code	94V-0
Wire Size-Max	22 AWG
Wire Size-Min	22 AWG
