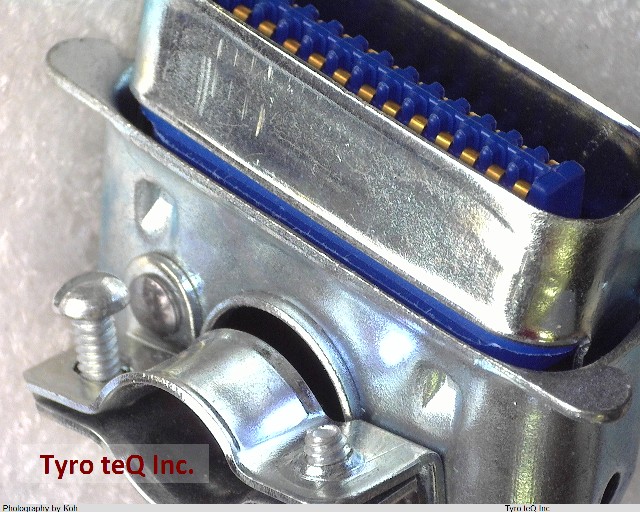

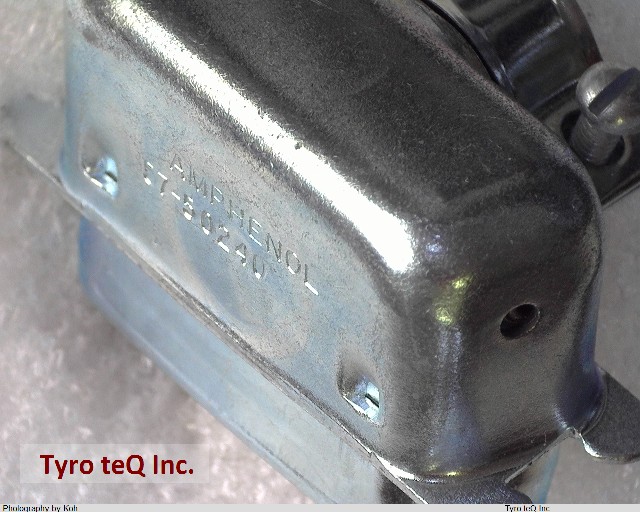

57-50240 データシート

Name: 57-50240
Brand: DDK
SKU: 60076612-0000-0000-0000

57-50240 - DDK の商品詳細ページです。

２営業日以内に回答いたします

57-50240 の詳細情報

型番	57-50240
メーカー	DDK
データシート
Additional Feature	HIGH BARRIER TYPE
Body Breadth	1.035 inch
Body Depth	0.827 inch
Body Length	1.913 inch
Body/Shell Style	PLUG
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	AU
Contact Finish - Termination	GOLD
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Dielectric Withstanding Voltage	700VDC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Material	DIALLYL PHTHALATE
MIL Conformance	NO
Mating Contact Pitch	0.085 inch
Mating Contact Row Spacing	0.1 inch
Mixed Contacts	NO
Mounting Option 1	BAIL MT F
Mounting Type	CABLE
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Plating Thickness	20u inch
Rated Current (Signal)	5 A
Reference Standard	CSA, UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	BRASS
Sub Category	D Type Connectors
Termination Type	SOLDER
Total Number of Contacts	24
UL Flammability Code	94V-0
Wire Size-Max	22 AWG
Wire Size-Min	22 AWG
