57-40240 データシート

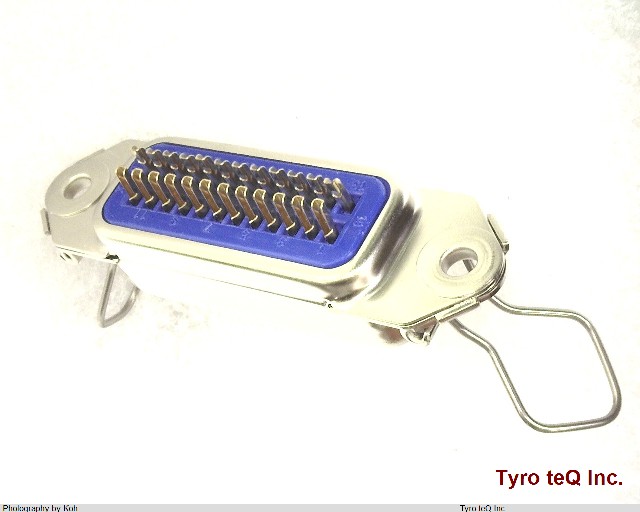

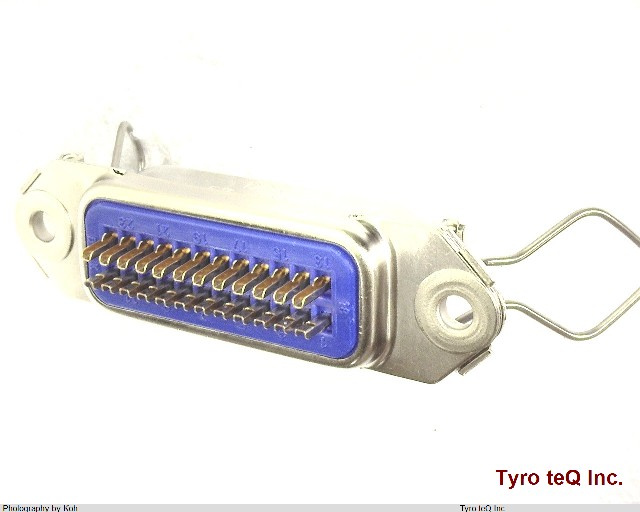

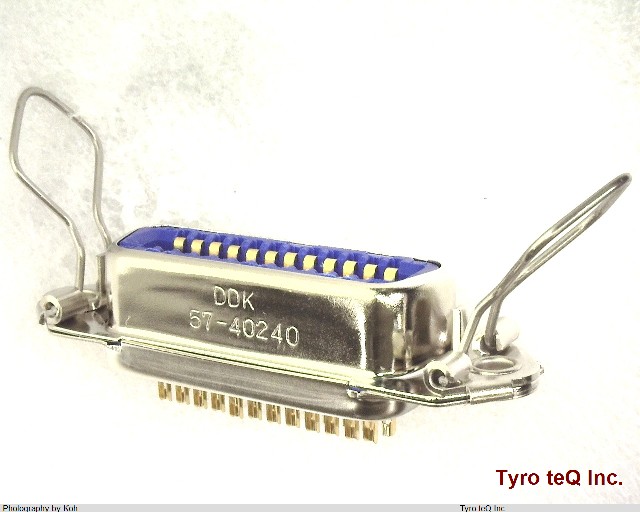

Name: 57-40240
Brand: DDK
SKU: 60163817-0000-0000-0000

57-40240 - DDK の商品詳細ページです。

56時間30分後以内に見積もり依頼を頂ければ、
04月23日(火) 9:00 までに見積もり回答いたします。

検討リストに追加する

57-40240 の詳細情報

型番	57-40240
メーカー	DDK
データシート
Additional Feature	HIGH BARRIER BETWEEN CONTACTS
Body Breadth	0.61 inch
Body Depth	0.395 inch
Body Length	2.153 inch
Body/Shell Style	PLUG
Connector Type	OTHER D TYPE CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	AU
Contact Finish - Termination	GOLD (16) OVER NICKEL
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Dielectric Withstanding Voltage	700VDC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLUE
Insulator Material	DIALLYL PHTHALATE
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	57
Mating Contact Pitch	0.085 inch
Mating Contact Row Spacing	0.1 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	#4-40
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	3.8354 mm
Plating Thickness	20u inch
Rated Current (Signal)	5 A
Reference Standard	CSA, UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	BRASS
Sub Category	D Type Connectors
Terminal Length	0.1 inch
Terminal Pitch	2.159 mm
Termination Type	SOLDER
Total Number of Contacts	24
UL Flammability Code	94V-0
