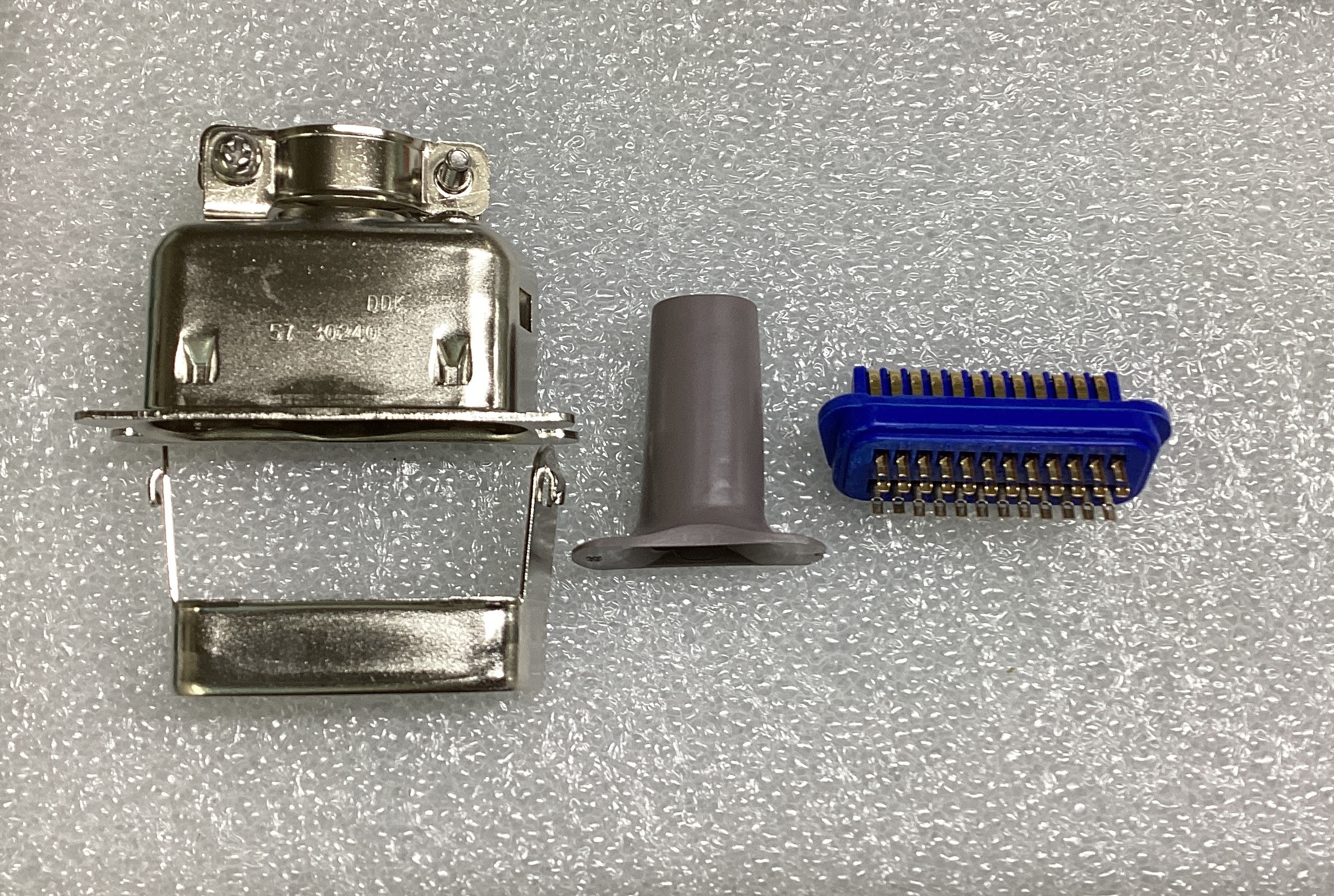

57-30240 データシート

Name: 57-30240
Brand: DDK
SKU: 60000040-0000-0000-0000

57-30240 - DDK の商品詳細ページです。

２営業日以内に回答いたします

57-30240 の詳細情報

型番	57-30240
メーカー	DDK
データシート
Additional Feature	180 DEGREE TOP-ENTRY CABLE, BAIL LATCHES
Body Breadth	0.616 inch
Body Depth	0.83 inch
Body Length	1.913 inch
Body/Shell Style	PLUG
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	AU
Contact Finish - Termination	GOLD (30) OVER NICKEL
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	5 mohm
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Dielectric Withstanding Voltage	1200VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	3.1414 N
Insulation Resistance	1000000000 ohm
Insulator Color	BLUE
Insulator Material	DIALLYL PHTHALATE
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	57
Mating Contact Pitch	0.085 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	BAIL MT F
Mounting Option 2	SCREW
Mounting Type	CABLE
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Plating Thickness	20u inch
Rated Current (Signal)	5 A
Reference Standard	CSA, UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	BRASS
Sub Category	D Type Connectors
Termination Type	SOLDER
Total Number of Contacts	24
UL Flammability Code	94V-0
Wire Size-Max	22 AWG
Wire Size-Min	22 AWG
Withdrawl Force-Min	.7506 N
