57-10640-D10 データシート

Name: 57-10640-D10
Brand: DDK
SKU: 60000038-0000-0000-0000

57-10640-D10 - DDK の商品詳細ページです。

２営業日以内に回答いたします

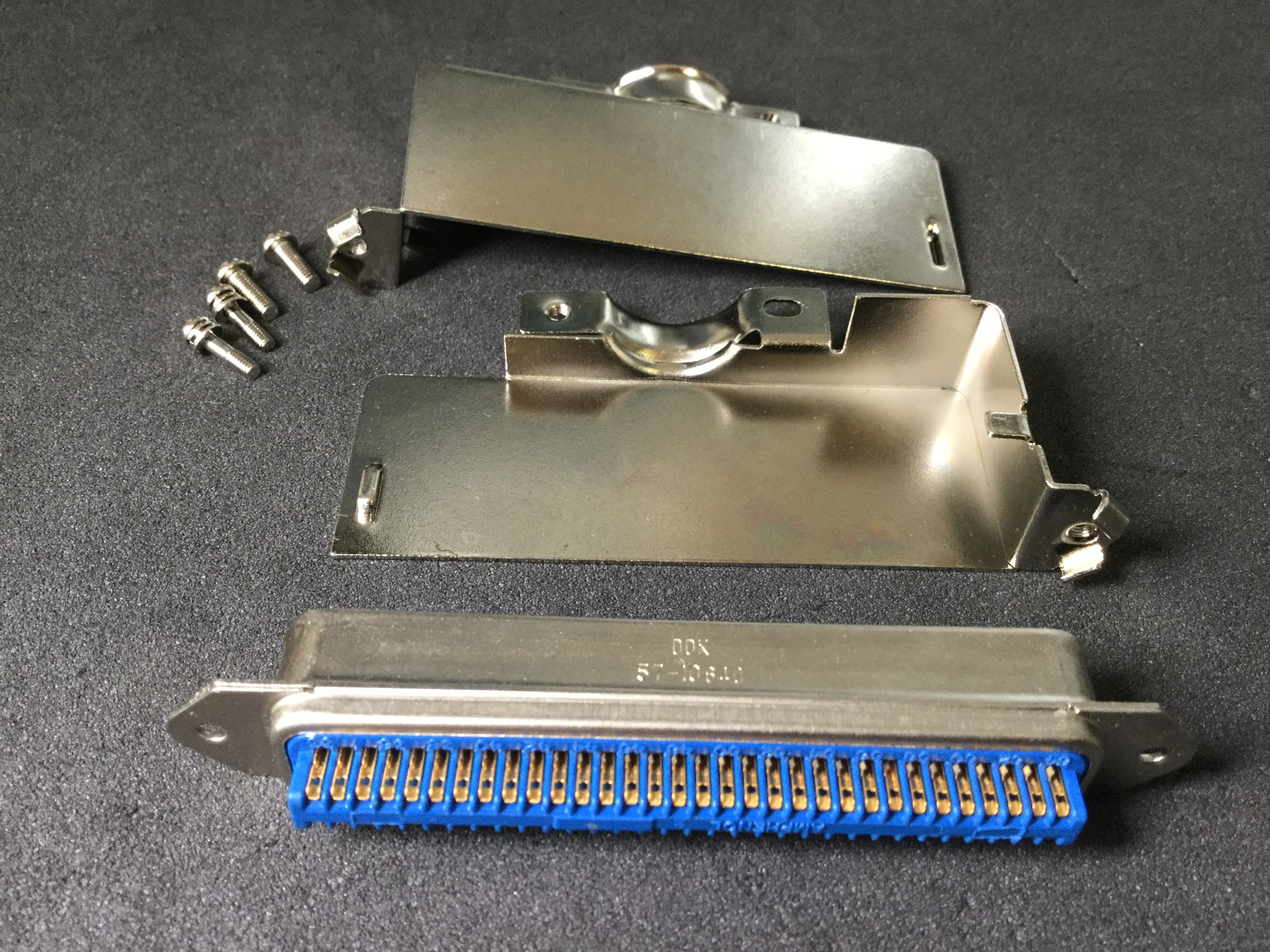

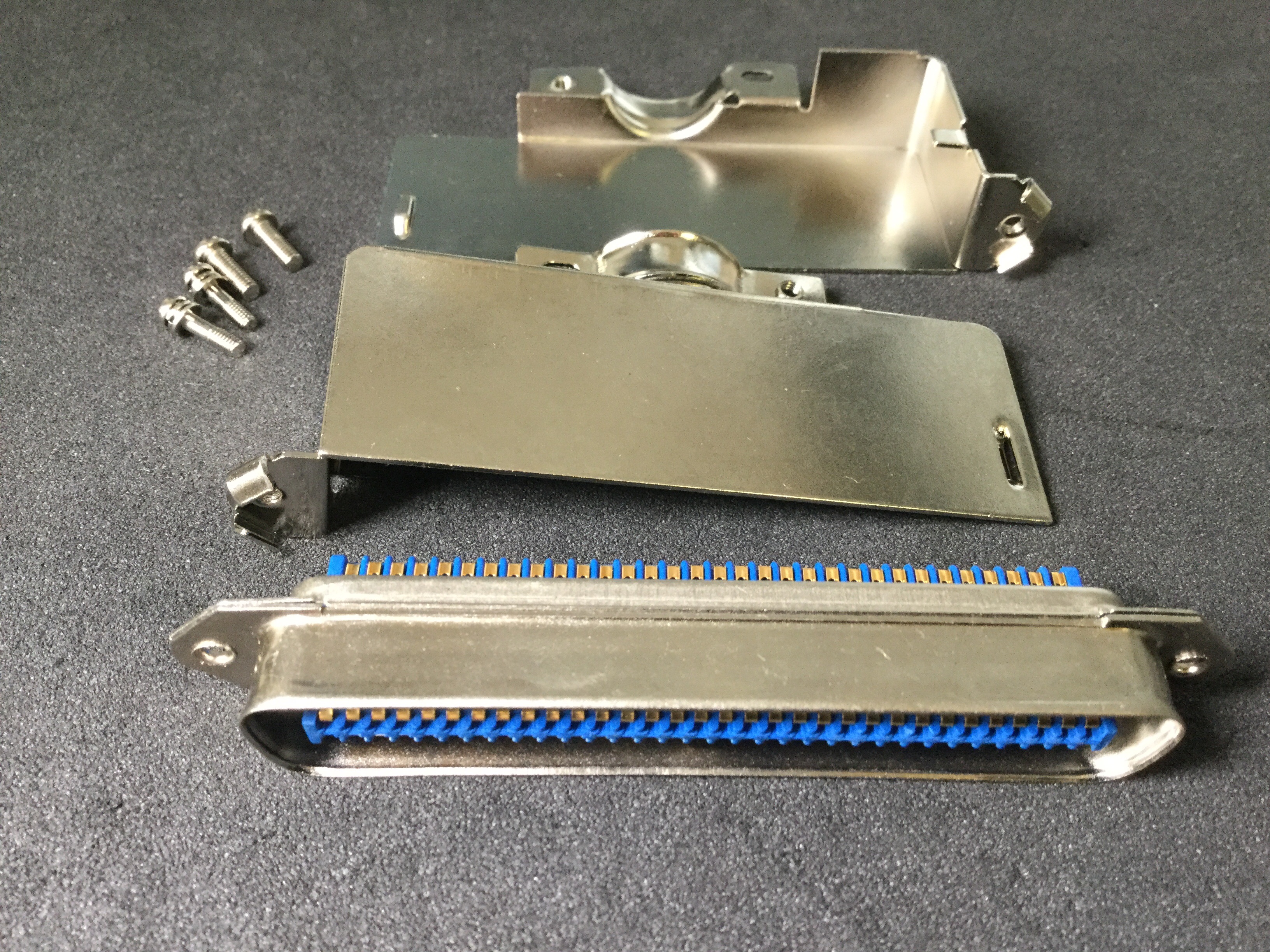

57-10640-D10 の詳細情報

型番	57-10640-D10
メーカー	DDK
データシート
Body Breadth	0.646 inch
Body Depth	1.575 inch
Body Length	3.858 inch
Body/Shell Style	RECEPTACLE
Contact Design	PREASSEM CONN
Contact Finish - Mating	AU
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Dielectric Withstanding Voltage	1200VAC V
Insulation Resistance	1000000000 ohm
Insulator Material	DIALLYL PHTHALATE
Mounting Option 1	M2.6X0.45
Mounting Option 2	SCREWLOCKS
Mounting Type	PANEL
Number of Rows Loaded	2
Option	GENERAL PURPOSE
Rated Current (Signal)	5 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	BRASS
Sub Category	D Type Connectors
Termination Type	SOLDER LUG
Total Number of Contacts	64
Wire Size-Max	24 AWG
Wire Size-Min	24 AWG
