17JE-23370-02(D1) データシート

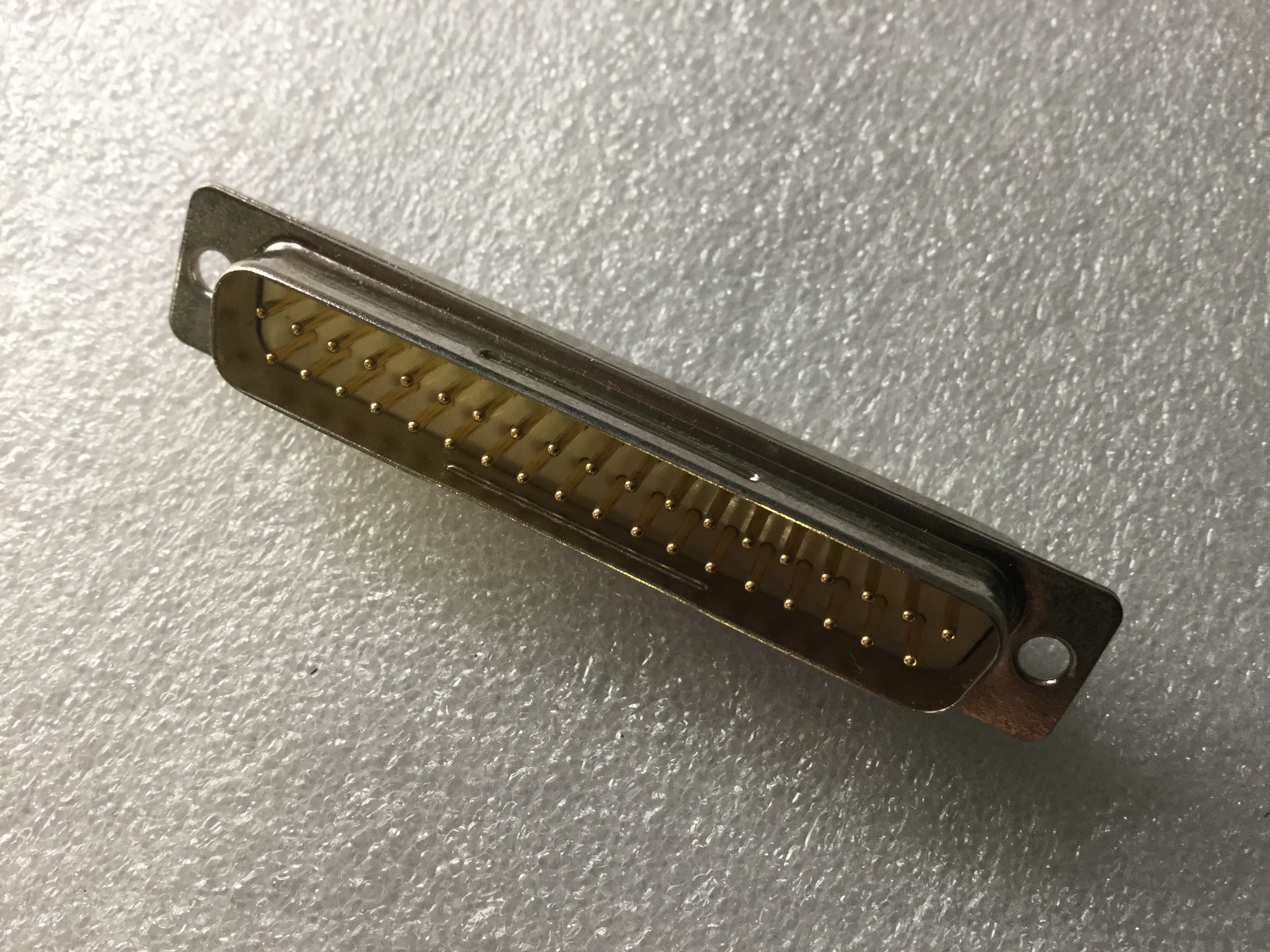

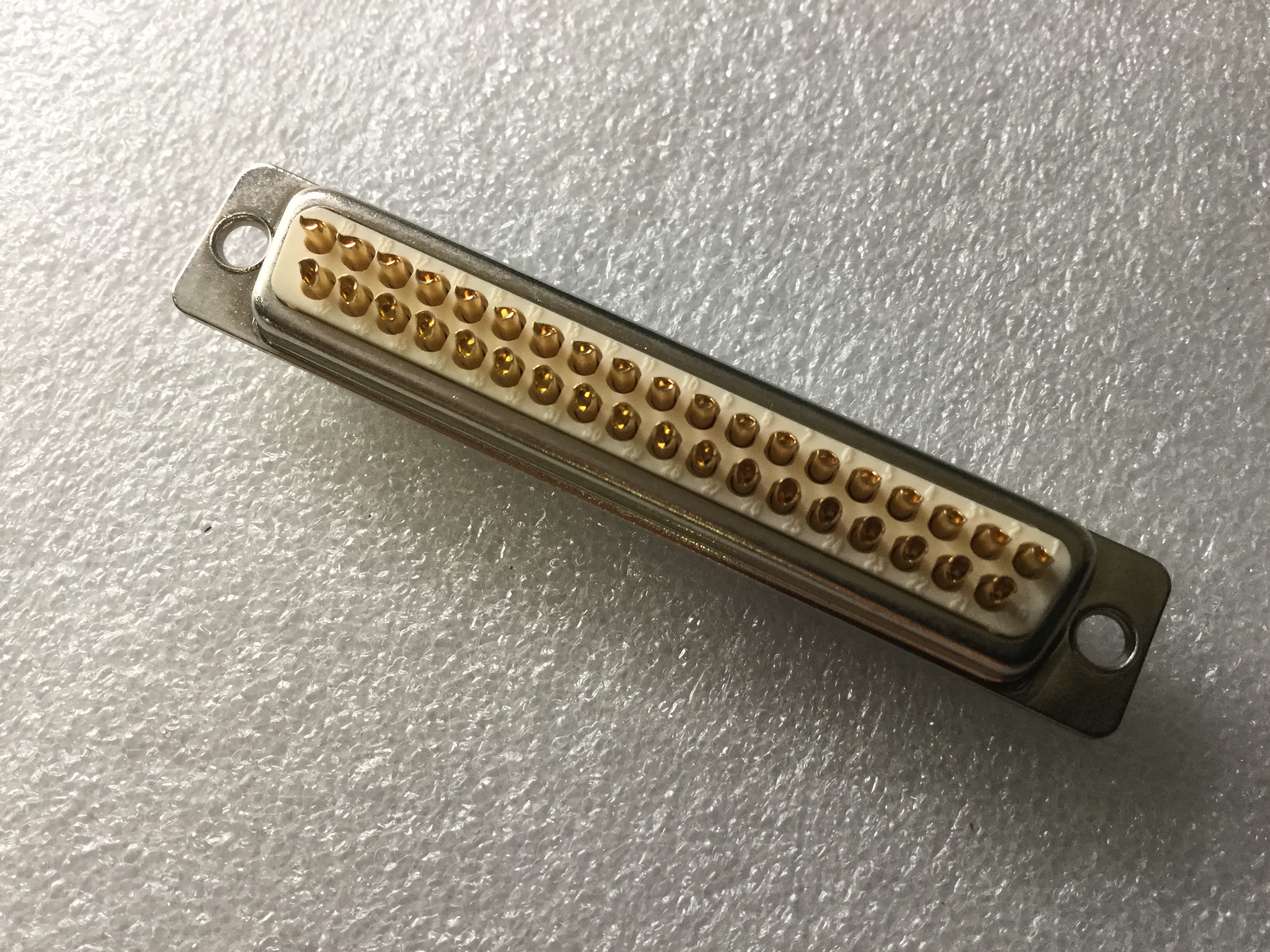

Name: 17JE-23370-02(D1)
Brand: DDK
SKU: 20485484-0000-0000-0000

17JE-23370-02(D1) - DDK の商品詳細ページです。

２営業日以内に回答いたします

17JE-23370-02(D1) の詳細情報

型番	17JE-23370-02(D1)
メーカー	DDK
データシート
Body Breadth	0.488 inch
Body Depth	0.335 inch
Body Length	2.724 inch
Contact Finish - Mating	AU ON NI
Contact Gender	MALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	STAGGERED
Contact Resistance	10 mohm
Contact Style	RND PIN-SKT
Dielectric Withstanding Voltage	1400VAC V
Insulation Resistance	1000000000 ohm
Insulator Color	WHITE
Insulator Material	POLYBUTYLENE TEREPHTHALATE
Mating Contact Pitch	0.109 inch
Mounting Option 1	LOCKING
Mounting Type	PANEL
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
Plating Thickness	FLASH inch
Rated Current (Signal)	5 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	STEEL
Sub Category	D Type Connectors
Termination Type	SOLDER LUG
Total Number of Contacts	37
Wire Size-Max	22 AWG
Wire Size-Min	22 AWG
